Automobile Garage Machines

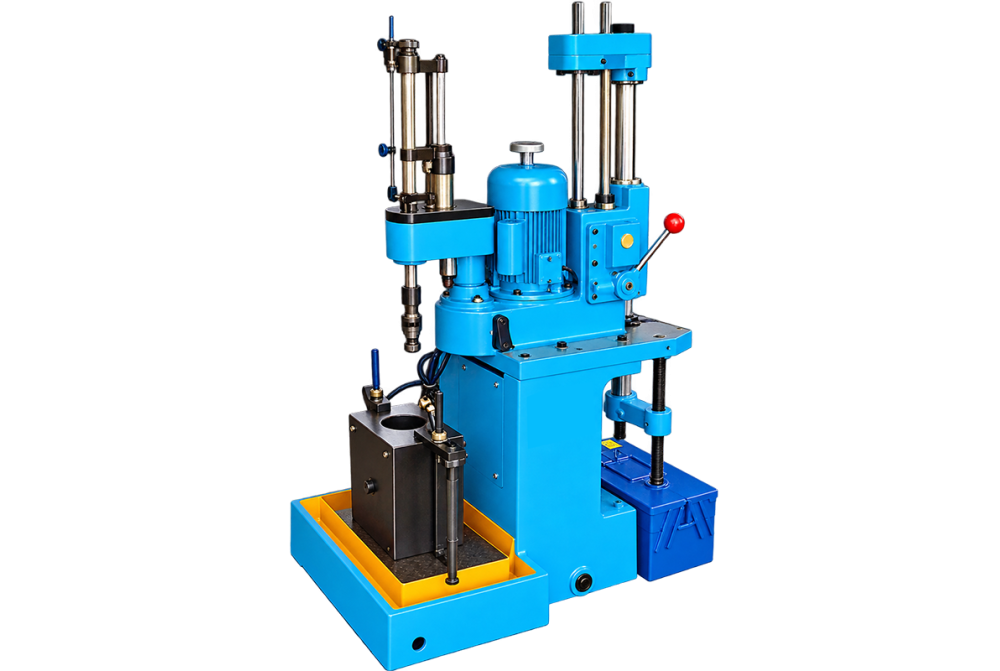

Cylinder Boring Cum Honing Machine
Built around refining bore geometry and internal surface finish, the Cylinder Boring Cum Honing Machine provides a dedicated working arrangement. It moves expanding abrasive stones through the lubricated bore, with controlled abrasive contact throughout the bore.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Cylinder Boring Cum Honing Machine
Machine Purpose
Used for refining bore geometry and internal surface finish, the Cylinder Boring Cum Honing Machine addresses a distinct stage of industrial work. It accommodates engine cylinders, hydraulic bores, and tubular surfaces and keeps setup, tool engagement, and job handling centred on that task.
Industrial Applications
Likely users are found in engine rebuilding, hydraulic repair, and component finishing. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
How It Works
Its cycle is based on the way it moves expanding abrasive stones through the lubricated bore. The design therefore prioritises controlled abrasive contact throughout the bore; actual output still depends on the chosen model, tool, workpiece, and operating method.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Cylinder Boring Cum Honing Machine.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | PMCBH |
| Diameter of Boring & Honing Hole | 39-72 mm |
| Max. Boring & Honing Depth | 160 mm |
| Rotational Speed of Boring & Spindle | 480 r/min |
| Steps of Variable Speed of Boring Honing Spindle | 1 Step |
| Feed of Boring Spindle | 0.09 mm/r |
| Return and Rise Mode of Boring Spindle | Hand operated |
| Rotational Speed of Honing Spindle | 300 r/min |
| Honing Spindle Feeding Speed | 6.5 m/min |
| Electric Motor Power | 0.75 kw |
| Rotational | 1400 r/min |
| Voltage | 220 or 380 V |
| Frequency | 50 HZ |
| Overall Dimension (LxWxH) | 680x480x1160 mm |
| Packing (LxWxH) | 820x600x1275 mm |
| Weight of Main Machine(Approx) | N.W 230 kg,G.W 280 kg |
FAQs
Frequently Asked Questions
Which operation is the Cylinder Boring Cum Honing Machine designed to perform?
The Cylinder Boring Cum Honing Machine is intended for refining bore geometry and internal surface finish. It is arranged around engine cylinders, hydraulic bores, and tubular surfaces, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a Cylinder Boring Cum Honing Machine work?
The machine moves expanding abrasive stones through the lubricated bore. Its controlled abrasive contact throughout the bore supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a Cylinder Boring Cum Honing Machine?
It is primarily associated with engine cylinders, hydraulic bores, and tubular surfaces. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a Cylinder Boring Cum Honing Machine?
Typical users include engine rebuilding, hydraulic repair, and component finishing. In these settings, the Cylinder Boring Cum Honing Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different Cylinder Boring Cum Honing Machine models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a Cylinder Boring Cum Honing Machine require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a Cylinder Boring Cum Honing Machine vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Cylinder Boring Cum Honing Machine.
