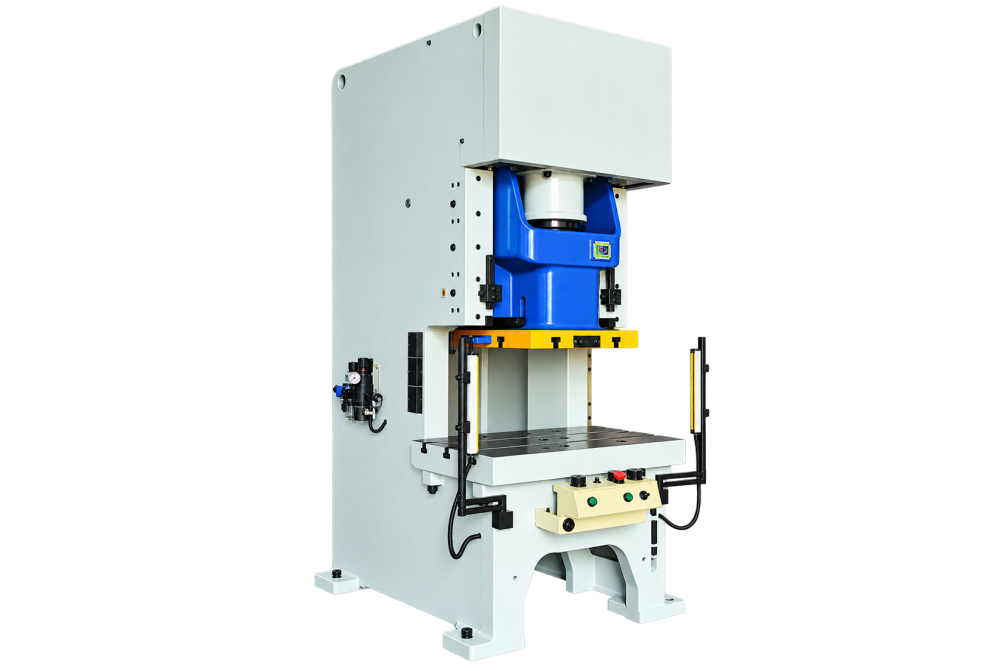

Cross Shaft C Frame Power Press
The primary role of the Cross Shaft C Frame Power Press is applying controlled force for forming, fitting, punching, or compaction. It advances a guided working member against supported material, with rigid reaction support around the working zone.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Cross Shaft C Frame Power Press
Machine Purpose
The Cross Shaft C Frame Power Press provides a dedicated method of applying controlled force for forming, fitting, punching, or compaction. Rather than acting as unrelated general equipment, it brings the working elements together around components and materials named by the product title.
How It Works
Its cycle is based on the way it advances a guided working member against supported material. The design therefore prioritises rigid reaction support around the working zone; actual output still depends on the chosen model, tool, workpiece, and operating method.
Industrial Applications
Likely users are found in fabrication, assembly, maintenance, and production workshops. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
Selection Considerations
When comparing versions of the Cross Shaft C Frame Power Press, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Capacity Tons | 32 | 40 | 63 | 80 | 100 | 160 | 200 | 250 | |
| Table Size | 630 x 400 | 800 x 450 | 850 x 500 | 960 x 570 | 1000 x 625 | 1120 x 650 | 1250 x 800 | 1250 x 800 | |
| Slide Area L-RxF-B | 350 x 250 | 400 x 325 | 500 x 400 | 500 x 400 | 625 x 425 | 700 x 590 | 875 x 775 | 900 x 775 | |
| Day Light (SUAU) | 330 | 340 | 400 | 420 | 450 | 560 | 650 | 675 | |
| Stroke Length Fix | 60 | 60 | 100 |
100 |
125 | 160 | 200 | 200 | |
| Stroke Length (Adj) | 8-60 | 8-60 | 8-100 | 8-100 | 8-125 | 8-160 | 200 | 200 | |
| Slide Adjustment | 63 | 63 | 70 | 70 | 80 | 100 | 100 | 125 | |
| Shut Height (SDAU) | 270 | 280 | 300 | 320 | 325 | 400 | 450 | 475 | |
| Nos of Slide Strokes (SPM) | 50 | 50 | 50 | 50 | 45 | 40 | 40 | 35 | |
| Fly Wheel Energy (KJ) | 4-4 | 8 | 16.75 | 20 | 25 | 55 | 70 | 80 | |
| Height from Floor to Top | 800 | 850 | 856 | 850 | 850 | 900 | 900 | 900 | |
| Main Motor (HP) | 3 | 5 | 7.5 | 7.5 | 10 | 20 | 20 | 25 | |
| Req.air pressure for pneumatic clutch (Kg/cm2) | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | |
| Optional Die Cushion | Capacity | 1.7 | 4.5 | 70 | 80 | 100 | 200 | 200 | 270 |
| Stroke | 50 | 50 | 50 | 50 | 50 | 75 | 100 | 100 | |
| Alr Pressure (Kg/Cm2) | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
Applications
Applications
Headlight Parts
Engine Parts
Car Audio Parts
Seat Belt Parts
FAQs
Frequently Asked Questions
What does a Cross Shaft C Frame Power Press do?
The Cross Shaft C Frame Power Press is intended for applying controlled force for forming, fitting, punching, or compaction. It is arranged around components and materials named by the product title, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Cross Shaft C Frame Power Press complete its working cycle?
The machine advances a guided working member against supported material. Its rigid reaction support around the working zone supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Cross Shaft C Frame Power Press?
It is primarily associated with components and materials named by the product title. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Cross Shaft C Frame Power Press?
Typical users include fabrication, assembly, maintenance, and production workshops. In these settings, the Cross Shaft C Frame Power Press may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Cross Shaft C Frame Power Press?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Cross Shaft C Frame Power Press need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Cross Shaft C Frame Power Press?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Cross Shaft C Frame Power Press.
