Automobile Garage Machines

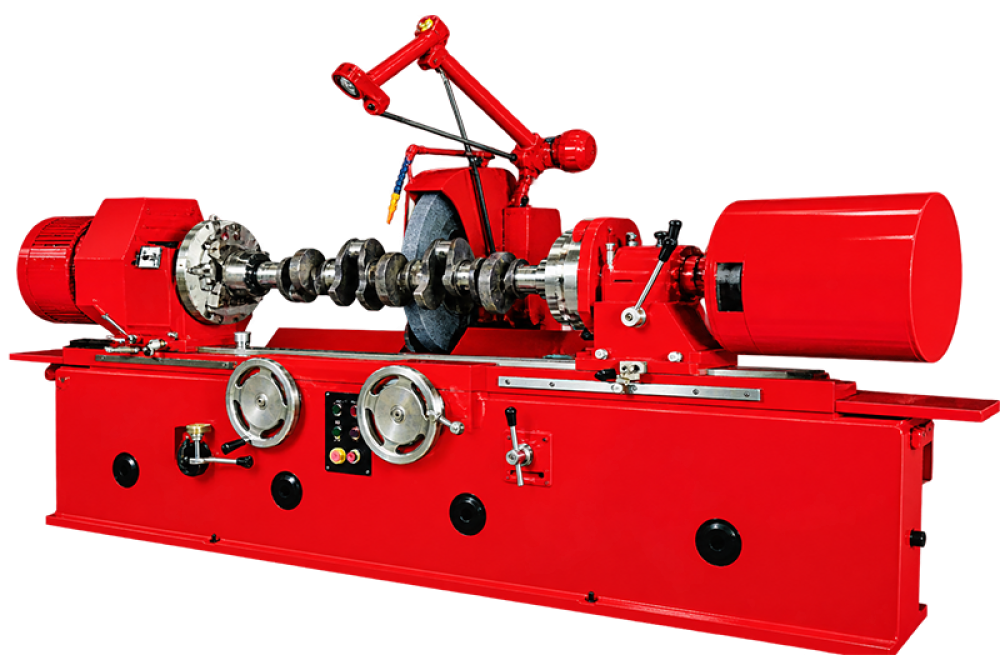

Crankshaft Grinding Machine
For work involving machine parts, tools, rollers, blades, or title-specific components, the Crankshaft Grinding Machine offers a process-specific solution. Its rigid wheel support with controlled working movement suits tool rooms, repair workshops, and component production.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Crankshaft Grinding Machine
Machine Purpose
The Crankshaft Grinding Machine is a purpose-built unit for removing controlled material and improving surface condition. Its layout is organised around machine parts, tools, rollers, blades, or title-specific components, making it relevant when this operation must be completed in a controlled sequence.
How It Works
Its cycle is based on the way it brings a rotating abrasive wheel into guided contact with the work. The design therefore prioritises rigid wheel support with controlled working movement; actual output still depends on the chosen model, tool, workpiece, and operating method.
Industrial Applications
Likely users are found in tool rooms, repair workshops, and component production. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Crankshaft Grinding Machine.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODEL | PCSG 850 | PCSG 1200 | PCSG 1500 |
| Height of Center From The Table | 180 MM | 250 MM | 265 MM |
| Maximum Head offset | 70 MM | 100 MM | 120 MM |
| Maximum Distance Between Chuck | 780 MM | 1150 MM | 1450 MM |
| Maximum Distance Between Centers | 850 MM | 1200 MM | 1500 MM |
| Diameter of Self Centering Chucks | 160 MM | 200 MM | 200 MM |
| Diameter of Grinding Wheel | 600 MM | 660 MM | 710 MM |
| Grinding Head Traverse with Hydroulic | 80 MM | 100 MM | 125 MM |
| Work Head Spindle Rotation Speed (Variable) | 20 - 110 RPM | 20 - 100 RPM | 20 - 90 RPM |
| Automatic Table Movement | .... | .... | Optional |
| Grinding Wheel Spindle Rotation | 1050 RPM | 960 RPM | 900 RPM |
| Grinding Wheel Motor | 2 HP / 1440 RPM | 5 HP / 1440 RPM | 5 HP / 1440 RPM |
| Work Head Motor | 0.25 HP 1440 RPM | O.5 HP 1440 RPM | 1 HP 1440 RPM |
| Coolant pump Motor | 0.13 HP / 2800 RPM | 0.13 HP / 2800 RPM | 0.13 HP / 2800 RPM |
| HYD.Power Motor (Grinding Wheel Slide) | 0.5 HP / 1440 RPM | 0.5 HP / 1440 RPM | 0.5 HP / 1440 RPM |
| Length of the Machine | 1850 MM | 2400 MM | 3060 MM |
| Width of the Machine | 1100 MM | 1250 MM | 1550 MM |
| Height of the Machine | 1500 MM | 1600 MM | 1600 MM |
| Net Weight | 1.5 TON | 2.2 TON | 3.1 TONS |
| Cross Weight | 2 TON | 2.9 TON | 3.8 TONS |
|
STANDARD ACCESSORIES
|
PCSG 850
|
PCSG 1200
|
PCSG 1500
|
| Self Centering Chuck With Key | 2 NOS | 2NOS | 2NOS |
| Face And Side Dresser Assembly With Diamond Dresser | 1 NO | 1 NO | 1 NO |
| Study Rest | 1 NO | 1 NO | 1 NO |
| Crank Centering V Gauge | 1 NO | 1 NO | 1 NO |
| Radius Dresser | 1 NO | 1 NO | 1 NO |
| Wheel Hub | 1 NO | 2 NO | 2 NO |
| Grinding Wheel | 1 NO | 1 NO | 1 NO |
| Wheel Hub Puller | 1 NO | 1 NO | 1 NO |
| Dial 10 MM | 1 NO | 1 NO | 1 NO |
| Coolant System | 1 NO | 1 NO | 1 NO |
| Spindle Nut Tightening Spanner | 1 NO | 1 NO | 1 NO |
FAQs
Frequently Asked Questions
Which operation is the Crankshaft Grinding Machine designed to perform?
The Crankshaft Grinding Machine is intended for removing controlled material and improving surface condition. It is arranged around machine parts, tools, rollers, blades, or title-specific components, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a Crankshaft Grinding Machine work?
The machine brings a rotating abrasive wheel into guided contact with the work. Its rigid wheel support with controlled working movement supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a Crankshaft Grinding Machine?
It is primarily associated with machine parts, tools, rollers, blades, or title-specific components. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a Crankshaft Grinding Machine?
Typical users include tool rooms, repair workshops, and component production. In these settings, the Crankshaft Grinding Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different Crankshaft Grinding Machine models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a Crankshaft Grinding Machine require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a Crankshaft Grinding Machine vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Crankshaft Grinding Machine.
