Automobile Garage Machines

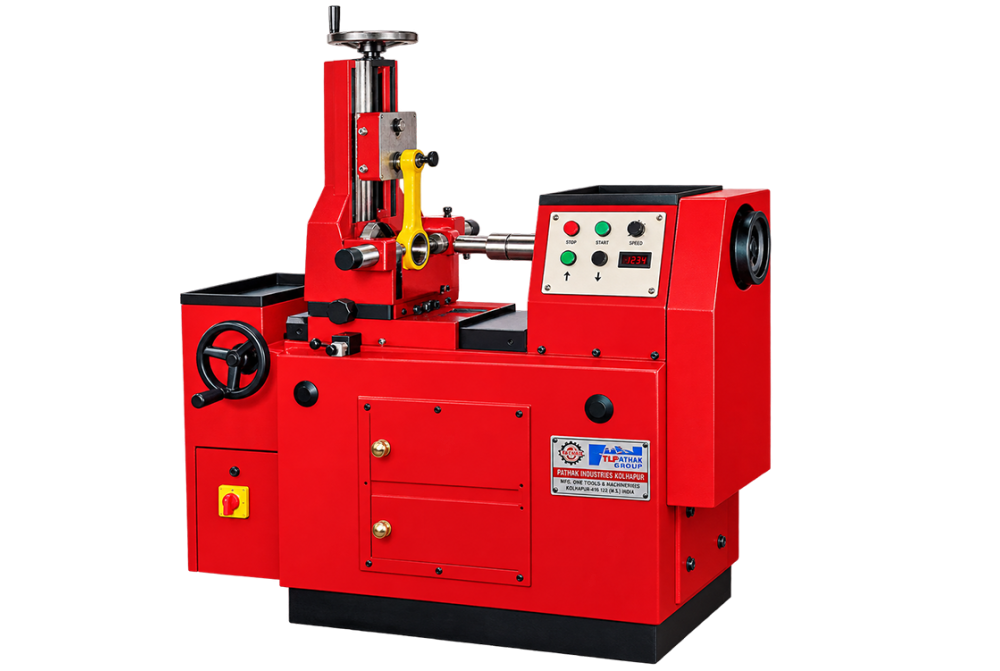

Connecting Rod Boring Machine
The primary role of the Connecting Rod Boring Machine is enlarging and correcting existing holes. Its rigid spindle guidance for internal machining suits machine shops, engine repair, and heavy maintenance.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Connecting Rod Boring Machine
Machine Purpose
For facilities needing enlarging and correcting existing holes, the Connecting Rod Boring Machine offers a process-specific workstation. Its arrangement supports castings, housings, cylinders, and machine parts while keeping the important operating area accessible.
Industrial Applications
Natural settings include machine shops, engine repair, and heavy maintenance. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
How It Works
In operation, it positions a boring tool accurately within the supported component. The practical focus is rigid spindle guidance for internal machining. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.
Selection Considerations
When comparing versions of the Connecting Rod Boring Machine, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODEL | ARB 500 |
| Minimum And Maximum Bore Center of Con-Rod | Min 80 - Max 600 mm |
| Boring Spindle Speeds (Variable - VFD) | Infinitely variable, 100-1600 rpm |
| Boring Range | Min 015 - Max 0175 |
| Feed Both Direction | Infinitely Variable |
| Table Traverse - Crosswise | 50 mm |
| Table Movement - Longitudinal | 450 mm |
| Spindle Speed Motor | 1 HP 3PH 50 Hz |
| Motor Table Feed (Variable Drive - VFD) | 0.5HP 3PH 50Hz |
| Length of The Machine | 1200mm |
| Width of The Machine | 650mm |
| Height of The Machine | 2000mm |
| Net Weight | 750kg (approx) |
| Gross Weight | 900kg (approx) |
| Shipping Volume | 3 m3 |
FAQs
Frequently Asked Questions
Which operation is the Connecting Rod Boring Machine designed to perform?
The Connecting Rod Boring Machine is intended for enlarging and correcting existing holes. It is arranged around castings, housings, cylinders, and machine parts, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a Connecting Rod Boring Machine work?
The machine positions a boring tool accurately within the supported component. Its rigid spindle guidance for internal machining supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a Connecting Rod Boring Machine?
It is primarily associated with castings, housings, cylinders, and machine parts. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a Connecting Rod Boring Machine?
Typical users include machine shops, engine repair, and heavy maintenance. In these settings, the Connecting Rod Boring Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different Connecting Rod Boring Machine models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a Connecting Rod Boring Machine require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a Connecting Rod Boring Machine vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Connecting Rod Boring Machine.
