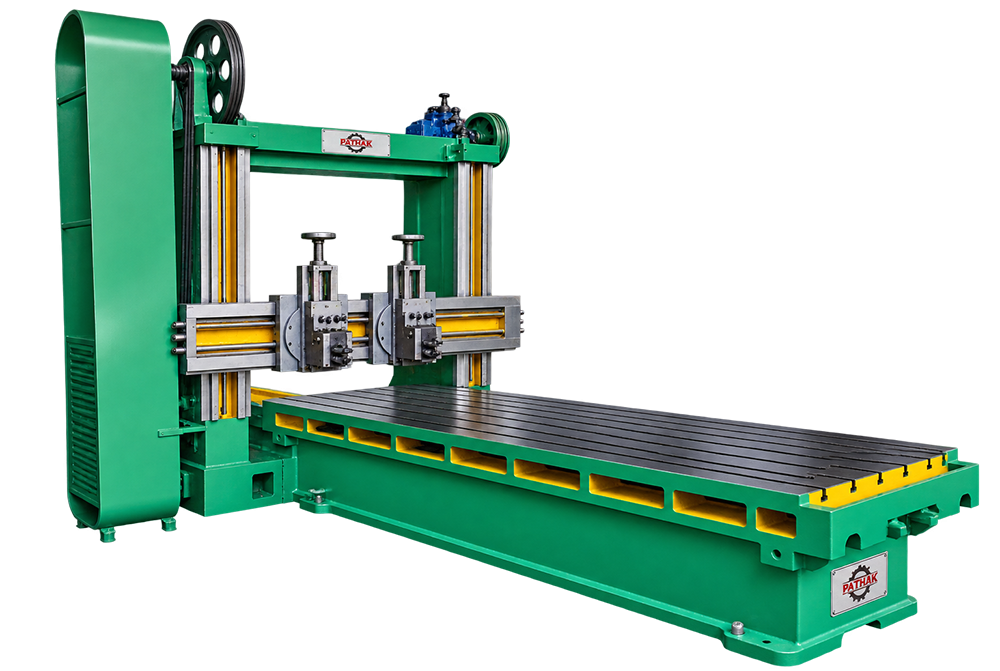

Cone Pully Type Planer Machine 16 FT
The Cone Pully Type Planer Machine 16 FT handles machine beds, guideways, and long fabrications through a layout intended for machining long flat surfaces on large components. It moves supported work beneath one or more cutting heads, with extended table travel for elongated work.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Cone Pully Type Planer Machine 16 FT
Machine Purpose
The Cone Pully Type Planer Machine 16 FT is a purpose-built unit for machining long flat surfaces on large components. Its layout is organised around machine beds, guideways, and long fabrications, making it relevant when this operation must be completed in a controlled sequence.
How It Works
A typical cycle begins with locating the job correctly, after which the machine moves supported work beneath one or more cutting heads. Its extended table travel for elongated work supports repeat work without replacing the need for trained operation.
Industrial Applications
Likely users are found in heavy machine shops, repair facilities, and equipment plants. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
Selection Considerations
Machines within workshop equipment can differ in arrangement and capability. The required Cone Pully Type Planer Machine 16 FT should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Strake of Table |
6'
|
8'
|
10'
|
12'
|
14'
|
16'
|
20'
|
|||||||
|
inch
|
mm
|
inch
|
mm
|
inch
|
mm
|
inch
|
mm
|
inch
|
mm
|
inch
|
mm
|
inch
|
mm
|
|
| Length of bed |
114
|
2895
|
114
|
3657
|
180
|
4572
|
216
|
5483
|
252
|
6400
|
288
|
7915
|
360
|
9144
|
| Length of Table |
79
|
2006
|
106
|
2692
|
130
|
3552
|
154
|
3885
|
154
|
4572
|
204
|
5180
|
252
|
6400
|
| Max. Travel of Table |
72
|
1829
|
96
|
2438
|
120
|
3048
|
144
|
3657
|
158
|
4267
|
192
|
4876
|
240
|
6096
|
| Max. height under cross rail |
36
|
914
|
48
|
1219
|
54
|
1371
|
60
|
1524
|
60
|
1524
|
60
|
1524
|
72
|
1828
|
| Max.Planing width |
36
|
914
|
48
|
1219
|
54
|
1371
|
60
|
1524
|
60
|
1524
|
72
|
1828
|
72
|
1828
|
| Tool post down feed |
8
|
204
|
8
|
204
|
8
|
204
|
8
|
204
|
8
|
204
|
10
|
254
|
10
|
304
|
| Cutting Speed P.M. |
480
|
480
|
480
|
480
|
480
|
384
|
384
|
|||||||
| Return Speed P.M. |
640
|
640
|
640
|
640
|
640
|
412
|
412
|
|||||||
| Table width |
27
|
689
|
30
|
-
|
36
|
934
|
36
|
934
|
36
|
934
|
48
|
1119
|
48
|
-
|
| No.of Tool post on the cross rail |
1
|
1
|
2
|
2
|
2
|
2
|
2
|
|||||||
| Method of Drive |
ELECTRICAL INDIVIDUAL
|
|||||||||||||
| H.P.required |
3
|
5
|
7.5
|
10
|
10
|
15
|
20
|
|||||||
| Approximate weight in kg. |
3500
|
6000
|
9000
|
11000
|
13000
|
18000
|
20000
|
|||||||
Accessories
Standard Accessories / Machine Parts
Instruction Manual
Tool Kit
Accessories
Optional Accessories
Digital Readout
Drilling Head
Milling Head
Motor
Pannel Board
Reducation Gear Box

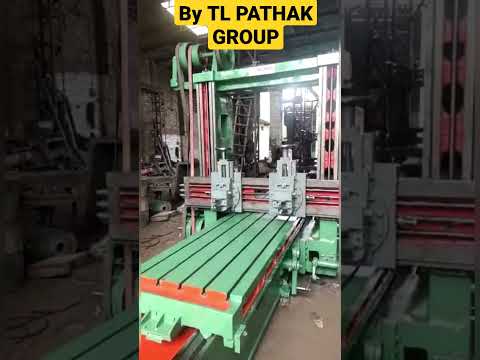

Videos
Product Videos
Applications
Applications
Automotive
Die & Mould Manufacturers
Aerospace
Diamond & Jewellery Industries
Medical Equipment
Textile Machinery
Allied Machinery
Plastic Processing Machinery
Defence
FAQs
Frequently Asked Questions
What is a Cone Pully Type Planer Machine 16 FT used for?
The Cone Pully Type Planer Machine 16 FT is intended for machining long flat surfaces on large components. It is arranged around machine beds, guideways, and long fabrications, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What is the working principle of a Cone Pully Type Planer Machine 16 FT?
The machine moves supported work beneath one or more cutting heads. Its extended table travel for elongated work supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
Which components are normally processed on a Cone Pully Type Planer Machine 16 FT?
It is primarily associated with machine beds, guideways, and long fabrications. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What type of workshop needs a Cone Pully Type Planer Machine 16 FT?
Typical users include heavy machine shops, repair facilities, and equipment plants. In these settings, the Cone Pully Type Planer Machine 16 FT may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How do I choose the right Cone Pully Type Planer Machine 16 FT?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
How should a Cone Pully Type Planer Machine 16 FT be maintained for reliable operation?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
How is a Cone Pully Type Planer Machine 16 FT price determined?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Cone Pully Type Planer Machine 16 FT.
