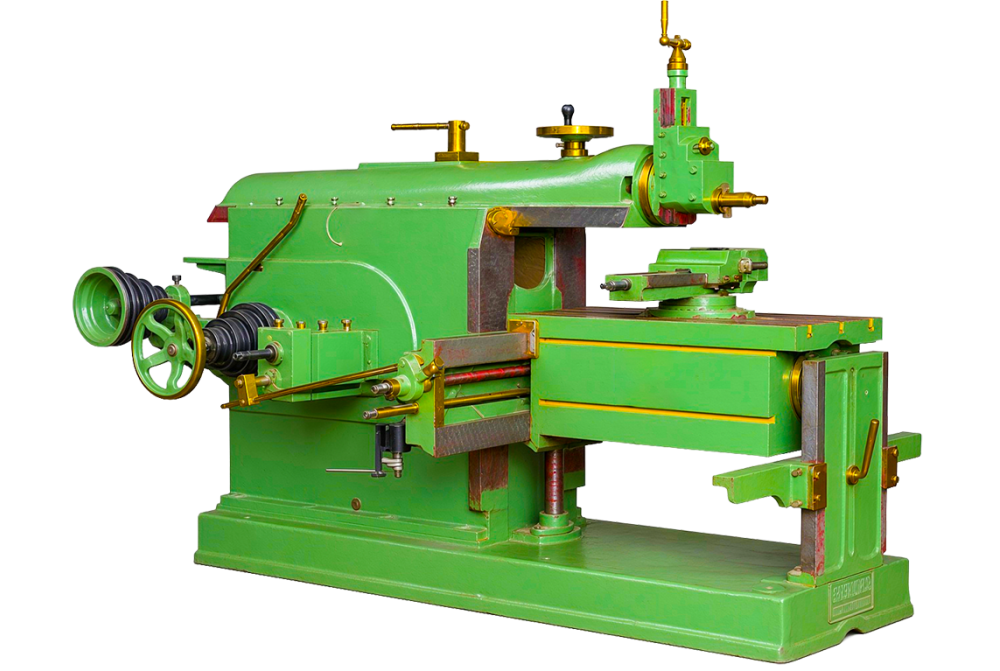

Cone Pulley Type Shaping Machine
The Cone Pulley Type Shaping Machine is designed for machining flat surfaces, shoulders, grooves, and keyways. It reciprocates a single-point tool across clamped work, with adjustable ram travel with simple tooling.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Cone Pulley Type Shaping Machine
Machine Purpose
The Cone Pulley Type Shaping Machine is a purpose-built unit for machining flat surfaces, shoulders, grooves, and keyways. Its layout is organised around blocks, repair parts, and small fabrications, making it relevant when this operation must be completed in a controlled sequence.
How It Works
Its cycle is based on the way it reciprocates a single-point tool across clamped work. The design therefore prioritises adjustable ram travel with simple tooling; actual output still depends on the chosen model, tool, workpiece, and operating method.
Industrial Applications
The machine is applicable to general workshops, training institutes, and tool shops. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Cone Pulley Type Shaping Machine.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODEL | SS12 | SS18 | SS24 | SS30 | SS36 | SS40 |
| Maximum Working Stroke | 14'' | 20'' | 26'' | 32'' | 38'' | 42'' |
| Length of ram without tool slide | 30'' | 40'' | 53'' | 60'' | 66'' | 75'' |
| Ram bearing in Column | 20'' | 26'' | 31'' | 37'' | 41'' | 44'' |
| Ram bearing width | 7.5'' | 10.5'' | 12'' | 12.5'' | 12.5'' | 14'' |
| Tool Slide Traverse | 5'' | 6'' | 8'' | 9'' | 10'' | 11'' |
| Maximum distance from table to ram | 14'' | 15'' | 16'' | 18'' | 20'' | 24'' |
| Maximum distance from table to ram | 2'' | 2'' | 2'' | 2'' | 2'' | 3'' |
| Horizontal traverse of the table | 16'' | 20'' | 26'' | 30'' | 32'' | 36'' |
| No of speed | 3 | 3 | 4 | 4 | 4 | 4 |
| Length and width of cross slide | 25''*10.5'' | 31''*11'' | 38''*12'' | 43''*12.5'' | 46''*12.5'' | 51''*15'' |
| Top clamping surface of table | 14''*11'' | 18.5''*12'' | 25''*15 | 31''*16'' | 37''*18.5'' | 40''*20.5'' |
| Size of base plate | 40''*16.5'' | 50''*22'' | 64''*23'' | 76''*24'' | 82''*26'' | 90''*30'' |
| Power required | 1 H.P. | 2 H.P. | 3 H.P. | 5 H.P. | 5 H.P. | 7.5 H.P. |
| Approximate net weight | 800 kg. | 1200 kg. | 1800 kg. | 2300 kg. | 3200 kg. | 4000 kg. |
