CNC Machines

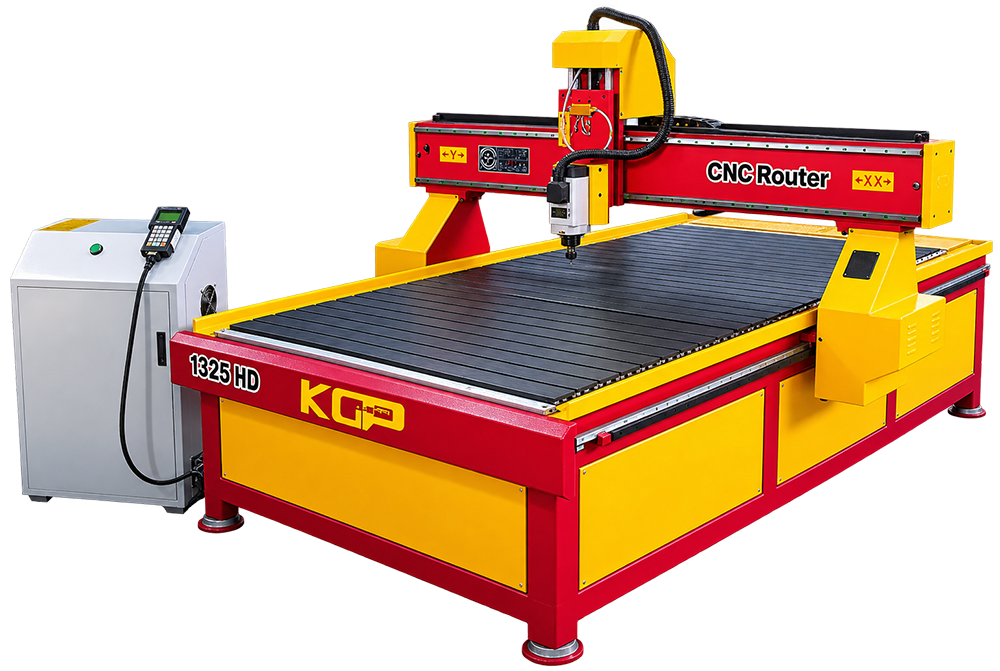

CNC Wood Sinage Router
The primary role of the CNC Wood Sinage Router is routing profiles, pockets, grooves, and engraved details. It moves a rotating cutter through guided or programmed paths, with versatile cutter movement for detailed profiles. Programmed motion supports repeatable positioning and cycle control.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
CNC Wood Sinage Router
Machine Purpose
The CNC Wood Sinage Router provides a dedicated method of routing profiles, pockets, grooves, and engraved details. Rather than acting as unrelated general equipment, it brings the working elements together around wood, plastic, composite, stone, or other title-specific material.
How It Works
A typical cycle begins with locating the job correctly, after which the machine moves a rotating cutter through guided or programmed paths. Its versatile cutter movement for detailed profiles supports repeat work without replacing the need for trained operation. Programmed motion supports repeatable positioning and cycle control.
Industrial Applications
Natural settings include sign making, furniture, pattern work, panels, and prototyping. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
Selection Considerations
When comparing versions of the CNC Wood Sinage Router, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
|
MODEL
|
CNC ROUTER DM1325
|
|
Working Size (x,y,z) |
1300*2500*190 mm |
| Maximum Moving Speed | 10000mm/min |
| Reposition Accuracy | <0.05mm/300mm |
| Max Engraving Speed | 6000-24000rpm |
| Spindle Power | 3 KW |
| Tool Diameter | 3.175,4, 6,12 |
| Feeding Height | 190mm |
| X,Y,Z Guide Rail | Hiwin square Linear Rail |
| Engraving Instruction | HPGL, G code |
| Weight | 1200 KG |
| Motor / Drive | Steper motor |
| Working Voltage | AC220V/50HZ (AC can use 380V) |
| Platform | Aluminium |
| Cross beams | Steel |
| Machine Size | 3000*1700*1900mm |
FAQs
Frequently Asked Questions
Which operation is the CNC Wood Sinage Router designed to perform?
The CNC Wood Sinage Router is intended for routing profiles, pockets, grooves, and engraved details. It is arranged around wood, plastic, composite, stone, or other title-specific material, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a CNC Wood Sinage Router work?
The machine moves a rotating cutter through guided or programmed paths. Its versatile cutter movement for detailed profiles supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a CNC Wood Sinage Router?
It is primarily associated with wood, plastic, composite, stone, or other title-specific material. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a CNC Wood Sinage Router?
Typical users include sign making, furniture, pattern work, panels, and prototyping. In these settings, the CNC Wood Sinage Router may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different CNC Wood Sinage Router models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a CNC Wood Sinage Router require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a CNC Wood Sinage Router vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title CNC Wood Sinage Router.
When is CNC control useful on a CNC Wood Sinage Router?
Programmed motion supports repeatable positioning and cycle control. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
