Milling Machines
CNC Turn Mill
The CNC Turn Mill handles components and materials suitable for the named process through a layout intended for performing the specialised operation identified by its title. The operating method supports production workshops, maintenance departments, and engineering facilities and centres on a task-focused layout built around its primary operation. Programmed motion supports repeatable positioning and cycle control.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview

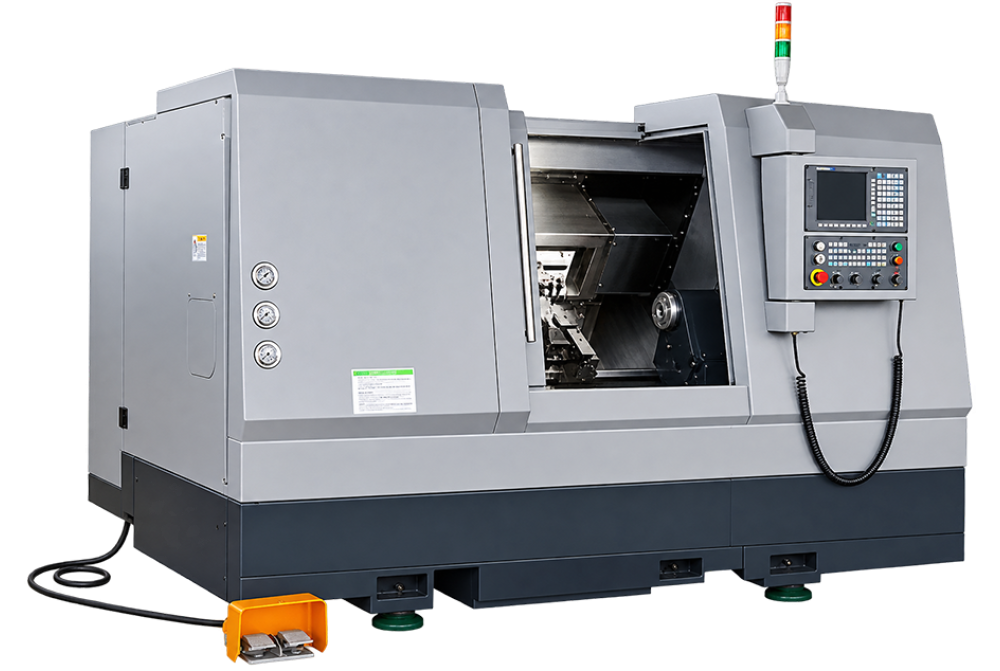

CNC Turn Mill
Machine Purpose
For facilities needing performing the specialised operation identified by its title, the CNC Turn Mill offers a process-specific workstation. Its arrangement supports components and materials suitable for the named process while keeping the important operating area accessible.
Industrial Applications
The machine is applicable to production workshops, maintenance departments, and engineering facilities. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
How It Works
In operation, it controls the working tool and supports the job through its cycle. The practical focus is a task-focused layout built around its primary operation. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup. Programmed motion supports repeatable positioning and cycle control.
Selection Considerations
When comparing versions of the CNC Turn Mill, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | TLPCTM-50A |
| Capacity | |
| Hydraulic Chuck Size | 8" |
| Max. Swing dia. Over bed | 500 mm |
| Max. Length of workpiece | 450 mm |
| Max. Turning Dia | 400 mm |
| Max. Swing Dia. Over Slide | 280 mm |
| Spindle | |
| Dia. of Spindle Bore | 65 mm |
| Max. Dia of through hole | 50 mm |
| Spindle Nose | A2-6 |
| Spindle Speed Range | 50-3000 r/min |
| Max. Spindle Output Torque | 117 Nm |
| Spindle Motor | 11 KW |
| Axis | |
| X Axis Travel | 200 mm |
| Y Axis Travel | 550 mm |
| X Axis Rapid Traverse | 18 m/min |
| Z Axis Rapid Traverse | 18 m/min |
| Turret | |
| Type of Turret | BMT45 |
| Power Turret | 12 position |
| Tool Shank Size | 25x25 mm |
| Boring Tool Shank Size | 40/30/25/20 mm |
| Tailstock | |
| Type of Tailstock | Hydraulic |
| Travel of Tailstock | 450 mm |
| Taper of Tailstock Quill | MT5 |
| Max. Loading Capacity | |
| Disk Parts | 200 kg |
| Shaft Parts | 500 kg |
| Others | |
| Shaft Parts | 3650 kg |
| Overall Dimension (LxWxH) | 2700x1890x1945 mm |
Applications
Applications
Tool Rooms
Shafts Automotive components
Shafts Automotive components Gears
Automotive components engine parts
Aerospace precision parts
Oil & Gas equipment components
Medical implants and instruments
FAQs
Frequently Asked Questions
What does a CNC Turn Mill do?
The CNC Turn Mill is intended for performing the specialised operation identified by its title. It is arranged around components and materials suitable for the named process, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the CNC Turn Mill complete its working cycle?
The machine controls the working tool and supports the job through its cycle. Its a task-focused layout built around its primary operation supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a CNC Turn Mill?
It is primarily associated with components and materials suitable for the named process. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a CNC Turn Mill?
Typical users include production workshops, maintenance departments, and engineering facilities. In these settings, the CNC Turn Mill may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a CNC Turn Mill?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a CNC Turn Mill need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a CNC Turn Mill?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title CNC Turn Mill.
How does CNC control affect the CNC Turn Mill?
Programmed motion supports repeatable positioning and cycle control. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
