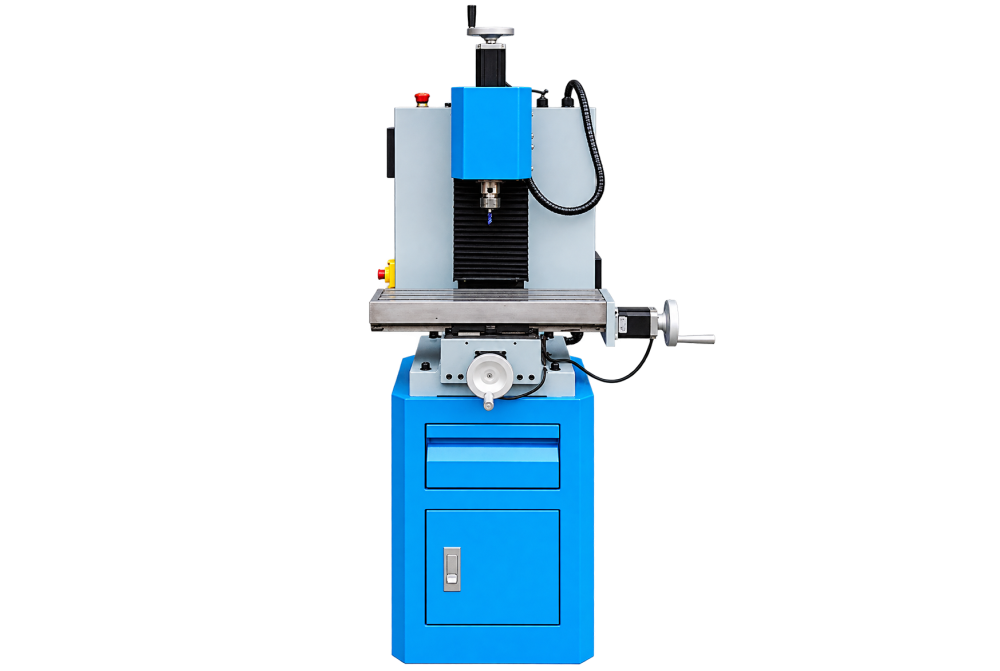

Cnc Trainer Milling Machine
The Cnc Trainer Milling Machine handles machine parts, dies, fixtures, and repair components through a layout intended for machining faces, slots, keyways, and contoured features. Typical users include tool rooms, maintenance departments, and component factories, where controlled table travel and rigid cutter support is valuable. Programmed motion supports repeatable positioning and cycle control. The trainer configuration exposes machine functions for…
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Cnc Trainer Milling Machine
Machine Purpose
The Cnc Trainer Milling Machine provides a dedicated method of machining faces, slots, keyways, and contoured features. Rather than acting as unrelated general equipment, it brings the working elements together around machine parts, dies, fixtures, and repair components.
How It Works
A typical cycle begins with locating the job correctly, after which the machine feeds supported work against a rotating multi-edge cutter. Its controlled table travel and rigid cutter support supports repeat work without replacing the need for trained operation. Programmed motion supports repeatable positioning and cycle control. The trainer configuration exposes machine functions for supervised instruction.
Industrial Applications
Natural settings include tool rooms, maintenance departments, and component factories. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
Selection Considerations
Machines within cnc machines can differ in arrangement and capability. The required Cnc Trainer Milling Machine should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Max. drilling dia. | 13mm |
| Max. milling dia. | 13mm |
| Max. tapping dia. | --- |
| Spindle speed | 3000 RPM |
| Spemdle center to column distance | 189mm |
| Spindle nose to table distance | 205mm |
| Spinder taper | ER20 |
| T-slot size | 12mm |
| Worktable size | 400x140mm |
| X axis travel | 220mm |
| Y axis travel | 120mm |
| Z axis travel | 200mm |
| Main motor power | 400W |
| Main motor power | Brushless motor 0-5V analog speed regulation |
| Feeding motor torque N.m | 2.6/2.6/3.2 Nm |
| Feeding motor type | Stepper motor with open loop |
| Control system | Mach3 |
Videos
Product Videos
FAQs
Frequently Asked Questions
Which operation is the Cnc Trainer Milling Machine designed to perform?
The Cnc Trainer Milling Machine is intended for machining faces, slots, keyways, and contoured features. It is arranged around machine parts, dies, fixtures, and repair components, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a Cnc Trainer Milling Machine work?
The machine feeds supported work against a rotating multi-edge cutter. Its controlled table travel and rigid cutter support supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a Cnc Trainer Milling Machine?
It is primarily associated with machine parts, dies, fixtures, and repair components. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a Cnc Trainer Milling Machine?
Typical users include tool rooms, maintenance departments, and component factories. In these settings, the Cnc Trainer Milling Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different Cnc Trainer Milling Machine models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a Cnc Trainer Milling Machine require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a Cnc Trainer Milling Machine vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Cnc Trainer Milling Machine.
How does CNC control affect the Cnc Trainer Milling Machine?
Programmed motion supports repeatable positioning and cycle control. The trainer configuration exposes machine functions for supervised instruction. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
