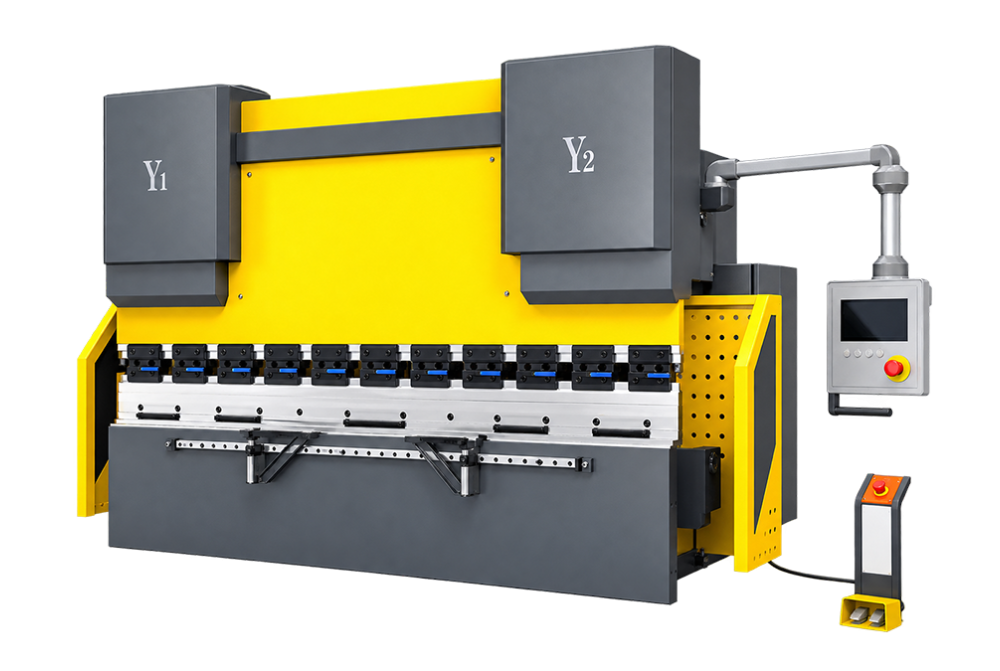

CNC Synchro Press Brake Machine
The primary role of the CNC Synchro Press Brake Machine is forming straight bends in sheet and plate. Typical users include enclosure production, ducting, and fabrication shops, where guided ram motion with adaptable tooling is valuable. Programmed motion supports repeatable positioning and cycle control.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
CNC Synchro Press Brake Machine
Machine Purpose
The CNC Synchro Press Brake Machine is a purpose-built unit for forming straight bends in sheet and plate. Its layout is organised around sheet blanks, panels, brackets, and profiles, making it relevant when this operation must be completed in a controlled sequence.
How It Works
In operation, it drives a punch into a matched die along the bend line. The practical focus is guided ram motion with adaptable tooling. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup. Programmed motion supports repeatable positioning and cycle control.
Industrial Applications
The machine is applicable to enclosure production, ducting, and fabrication shops. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen CNC Synchro Press Brake Machine.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Specification | 2-320/5000 | 2-320/6000 | 2-400/4000 | 2-400/5000 | 2-500/4000 | 2-500/5000 | 2-500/6000 | 2-630/5000 | 2-630/6000 | 2-800/8000 |
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Pressure KN | 2x3200 | 2x3200 | 2x4000 | 2x4000 | 2x5000 | 2x5000 | 2x5000 | 2x6300 | 2x6300 | 2x8000 |
| Length Of Working Table MM | 2x5000 | 2x6000 | 2x4000 | 2x5000 | 2x4000 | 2x5000 | 2x6000 | 2x5000 | 2x6000 | 2x8000 |
| The Distance Between Column MM | 4300 | 5300 | 3100 | 4210 | 3100 | 4100 | 5100 | 4100 | 5100 | 6700 |
| The Depth Of Throat MM | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
| Slide Stroke MM | 250 | 200 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 100 |
| The Max Open Height Between Table And Sliding Bloke | 560 | 500 | 625 | 625 | 630 | 630 | 630 | 710 | 710 | 750 |
| Motor Power KW | 2x22 | 2x22 | 2x37 | 2x37 | 2x37 | 2x37 | 2x37 | 2x45 | 2x45 | 2x55 |
| Dimension MM | 2x5060 2570 4560 |
2x6060 2570 4560 |
2x4140 3240 3880 |
2x5050 3240 3880 |
2x4090 2965 5320 |
2x6530 2965 5320 |
2x6090 2965 5320 |
2x5050 4910 3200 |
2x6050 4910 3200 |
2x9500 3000 6050 |
FAQs
Frequently Asked Questions
Which operation is the CNC Synchro Press Brake Machine designed to perform?
The CNC Synchro Press Brake Machine is intended for forming straight bends in sheet and plate. It is arranged around sheet blanks, panels, brackets, and profiles, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a CNC Synchro Press Brake Machine work?
The machine drives a punch into a matched die along the bend line. Its guided ram motion with adaptable tooling supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a CNC Synchro Press Brake Machine?
It is primarily associated with sheet blanks, panels, brackets, and profiles. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a CNC Synchro Press Brake Machine?
Typical users include enclosure production, ducting, and fabrication shops. In these settings, the CNC Synchro Press Brake Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different CNC Synchro Press Brake Machine models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a CNC Synchro Press Brake Machine require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a CNC Synchro Press Brake Machine vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title CNC Synchro Press Brake Machine.
How does CNC control affect the CNC Synchro Press Brake Machine?
Programmed motion supports repeatable positioning and cycle control. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
