CNC Machines

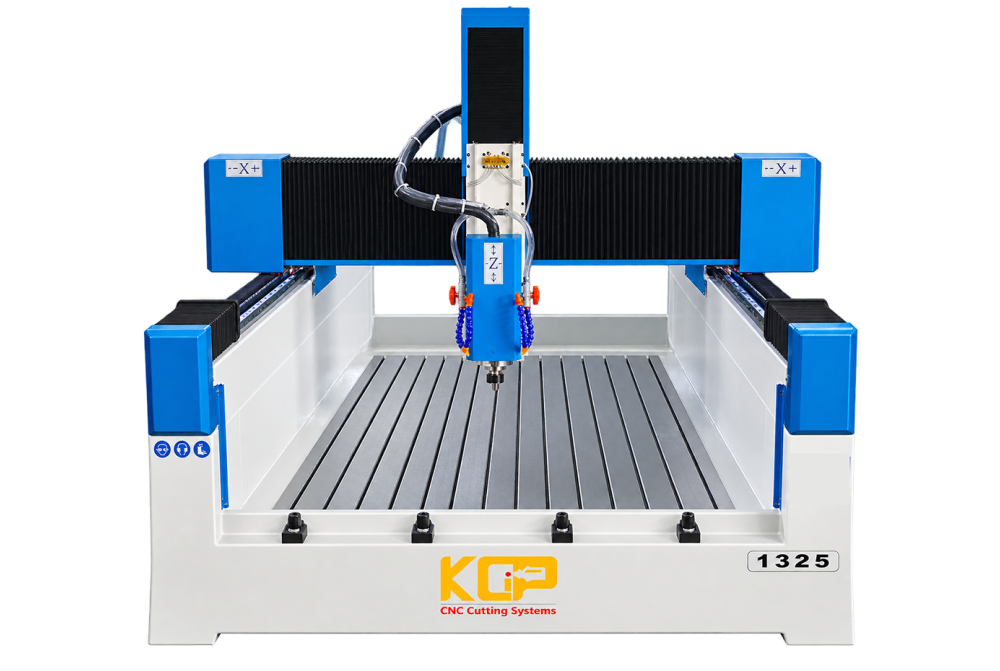

CNC Stone Router
For work involving wood, plastic, composite, stone, or other title-specific material, the CNC Stone Router offers a process-specific solution. Its versatile cutter movement for detailed profiles suits sign making, furniture, pattern work, panels, and prototyping. Programmed motion supports repeatable positioning and cycle control.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
CNC Stone Router
Machine Purpose
The CNC Stone Router is a purpose-built unit for routing profiles, pockets, grooves, and engraved details. Its layout is organised around wood, plastic, composite, stone, or other title-specific material, making it relevant when this operation must be completed in a controlled sequence.
How It Works
Its cycle is based on the way it moves a rotating cutter through guided or programmed paths. The design therefore prioritises versatile cutter movement for detailed profiles; actual output still depends on the chosen model, tool, workpiece, and operating method. Programmed motion supports repeatable positioning and cycle control.
Industrial Applications
The machine is applicable to sign making, furniture, pattern work, panels, and prototyping. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen CNC Stone Router.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| DESCRIPTION | NR - 115 5 |
| X-Y-Z Axis Movement | 1300mm x 2500mm x 200mm |
| Repositioning Accuracy | 0.01m |
| X-Y Movement | Taiwan Rack & Pinion Transmission |
| Z Movement | German Ball Screw |
| Table Size | 1440mm x 3040mm |
| Max Idiling Speed | 35m/min |
| Max Cutting Speed | 25m/min |
| Working Volatge | 3/380 V / 50 Hz |
| Spindle | Water Cooled Spindle 4.5 kw(6HP) |
| Spindle Rotating Speed | 0-24000 RPM |
| Drive Motor | Servo |
| Command | G code (*.mmg, *.tap, *.plt ) |
| Computer interface | USB |
| Controls | NK 105 / NC Studio |
| Collet Size | 6mm, 8mm, 12mm |
| Work Piece Holding | Manual T Slot Clamping |
| Water tank | Yes |
| Auto Water Cooling System | Yes |
FAQs
Frequently Asked Questions
What does a CNC Stone Router do?
The CNC Stone Router is intended for routing profiles, pockets, grooves, and engraved details. It is arranged around wood, plastic, composite, stone, or other title-specific material, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the CNC Stone Router complete its working cycle?
The machine moves a rotating cutter through guided or programmed paths. Its versatile cutter movement for detailed profiles supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a CNC Stone Router?
It is primarily associated with wood, plastic, composite, stone, or other title-specific material. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a CNC Stone Router?
Typical users include sign making, furniture, pattern work, panels, and prototyping. In these settings, the CNC Stone Router may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a CNC Stone Router?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a CNC Stone Router need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a CNC Stone Router?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title CNC Stone Router.
What is the benefit of CNC control on this CNC Stone Router?
Programmed motion supports repeatable positioning and cycle control. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
