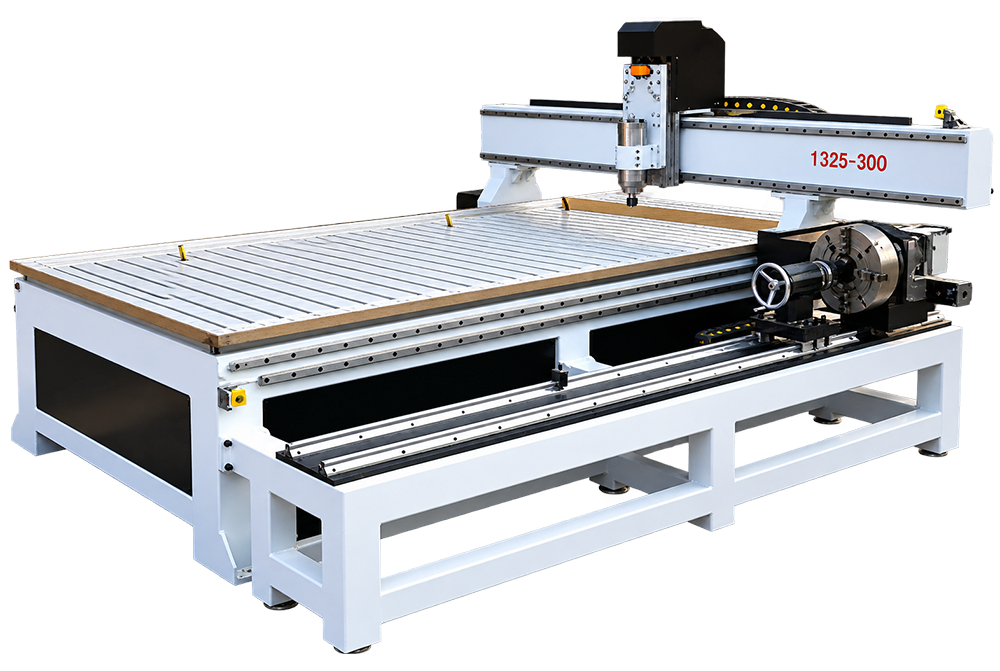

CNC Router With Rotary Attachment
The CNC Router With Rotary Attachment is designed for routing profiles, pockets, grooves, and engraved details. The operating method supports sign making, furniture, pattern work, panels, and prototyping and centres on versatile cutter movement for detailed profiles. Programmed motion supports repeatable positioning and cycle control.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
CNC Router With Rotary Attachment
Machine Purpose
For facilities needing routing profiles, pockets, grooves, and engraved details, the CNC Router With Rotary Attachment offers a process-specific workstation. Its arrangement supports wood, plastic, composite, stone, or other title-specific material while keeping the important operating area accessible.
Industrial Applications
Natural settings include sign making, furniture, pattern work, panels, and prototyping. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
How It Works
A typical cycle begins with locating the job correctly, after which the machine moves a rotating cutter through guided or programmed paths. Its versatile cutter movement for detailed profiles supports repeat work without replacing the need for trained operation. Programmed motion supports repeatable positioning and cycle control.
Selection Considerations
Machines within cnc machines can differ in arrangement and capability. The required CNC Router With Rotary Attachment should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
|
MODEL
|
WRR-1
|
| Table Size (MM) | 1500mmx3050mm |
| X Y Z Traveling Area | 1300mmx2500mmx200mm |
| Table Structure | Aluminium T - slot |
| X Y Axis Transmission | High Precision rack gear |
| Z Axis Transmission | Germany NEFF ball screws |
| X Y Z Axis Guide | Talwan HIWIN square rall |
| Spindle Power | 4.5KW, Air cooled / water cooled |
| Rotary Attachment (fourth axis) | Diameter 300mm |
| Max.Spindle Speed | 24000 RPM /min |
| Max. Treveling Speed | 32m/min |
| Max. Working Speed | 20m/min |
| Processing Accuracy | + 0.01mm |
| Preposition Accuracy | + 0.01mm |
| Driving Mode | Power stepper motor |
| Command Language | HPGL, G-Code |
| Operation System | DSP |
| Auto Lubrication& Tool Sensor | With |
| Working Voltage | AC380V 50 HZ or AC 220V 50Hz |
| Net Weight/Gross Weight | 1120KGS/1380KGS |
| Package Dimension | 3170mm*2280mm*1660 mm |
FAQs
Frequently Asked Questions
What does a CNC Router With Rotary Attachment do?
The CNC Router With Rotary Attachment is intended for routing profiles, pockets, grooves, and engraved details. It is arranged around wood, plastic, composite, stone, or other title-specific material, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the CNC Router With Rotary Attachment complete its working cycle?
The machine moves a rotating cutter through guided or programmed paths. Its versatile cutter movement for detailed profiles supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a CNC Router With Rotary Attachment?
It is primarily associated with wood, plastic, composite, stone, or other title-specific material. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a CNC Router With Rotary Attachment?
Typical users include sign making, furniture, pattern work, panels, and prototyping. In these settings, the CNC Router With Rotary Attachment may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a CNC Router With Rotary Attachment?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a CNC Router With Rotary Attachment need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a CNC Router With Rotary Attachment?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title CNC Router With Rotary Attachment.
When is CNC control useful on a CNC Router With Rotary Attachment?
Programmed motion supports repeatable positioning and cycle control. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
