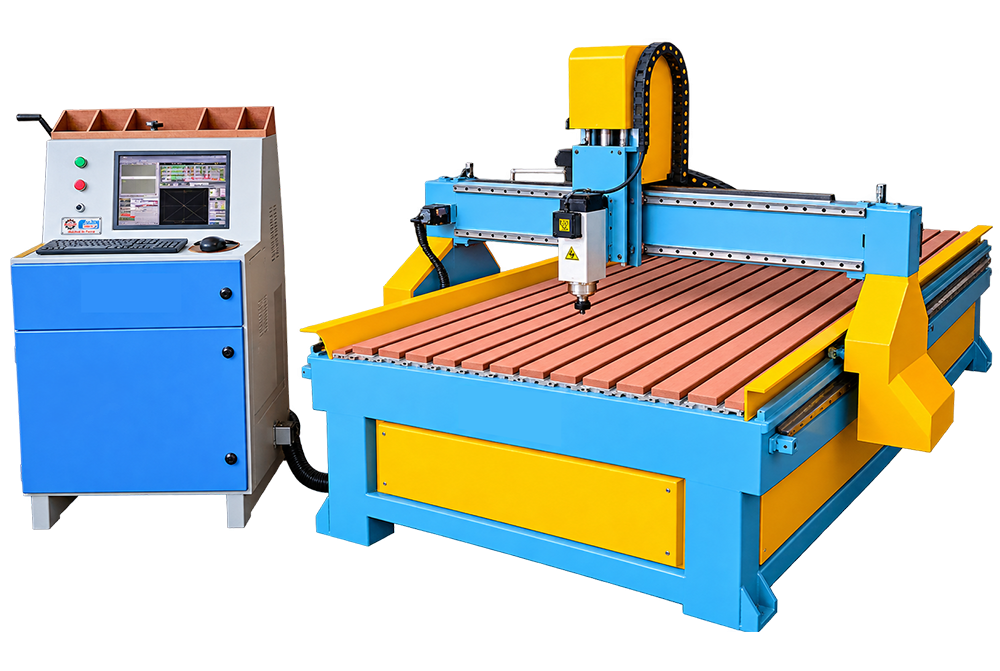

Cnc Router Machine
For work involving wood, plastic, composite, stone, or other title-specific material, the Cnc Router Machine offers a process-specific solution. The operating method supports sign making, furniture, pattern work, panels, and prototyping and centres on versatile cutter movement for detailed profiles. Programmed motion supports repeatable positioning and cycle control.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Cnc Router Machine
Machine Purpose
The Cnc Router Machine provides a dedicated method of routing profiles, pockets, grooves, and engraved details. Rather than acting as unrelated general equipment, it brings the working elements together around wood, plastic, composite, stone, or other title-specific material.
How It Works
In operation, it moves a rotating cutter through guided or programmed paths. The practical focus is versatile cutter movement for detailed profiles. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup. Programmed motion supports repeatable positioning and cycle control.
Industrial Applications
The machine is applicable to sign making, furniture, pattern work, panels, and prototyping. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
When comparing versions of the Cnc Router Machine, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Working Area | 4x8 Feet (Standard router) |
| 6 Feet L & 5x5 dia (Router with Rotary) | |
| Z Height | 250mm |
| Transmission X/Y | Helical Rack |
| Table Structure | 100x200 Fabrication Pipe |
| Bed Structure | T Slot Aluminum |
| Spindle Power | 4.5 KW Air Cooled |
| Motion Motor | Stepper |
| Max motion speed | 7000 mm/min |
| Gear Box | Casting Gear Box |
| Rail guide & ball screw | Hiwin (Taiwan) |
| Spindle Drive | Fuji (Japan) |
| Controller | Mach3 |
| Opeating Tool | Computer Panel |
| Machine accuracy | <0.1 mm |
| Opeating Power | Three phase |
| Machine Wight | 1200 kg |
| Auto Tool Zero | Yes |
| Fixture Save Feature | Yes |
| Spindle Speed | Analog Speed |
FAQs
Frequently Asked Questions
Why is a Cnc Router Machine used in industrial work?
The Cnc Router Machine is intended for routing profiles, pockets, grooves, and engraved details. It is arranged around wood, plastic, composite, stone, or other title-specific material, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a Cnc Router Machine?
The machine moves a rotating cutter through guided or programmed paths. Its versatile cutter movement for detailed profiles supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a Cnc Router Machine handle?
It is primarily associated with wood, plastic, composite, stone, or other title-specific material. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a Cnc Router Machine typically installed?
Typical users include sign making, furniture, pattern work, panels, and prototyping. In these settings, the Cnc Router Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a Cnc Router Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a Cnc Router Machine?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a Cnc Router Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Cnc Router Machine.
What is the benefit of CNC control on this Cnc Router Machine?
Programmed motion supports repeatable positioning and cycle control. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
