Lathe Machines

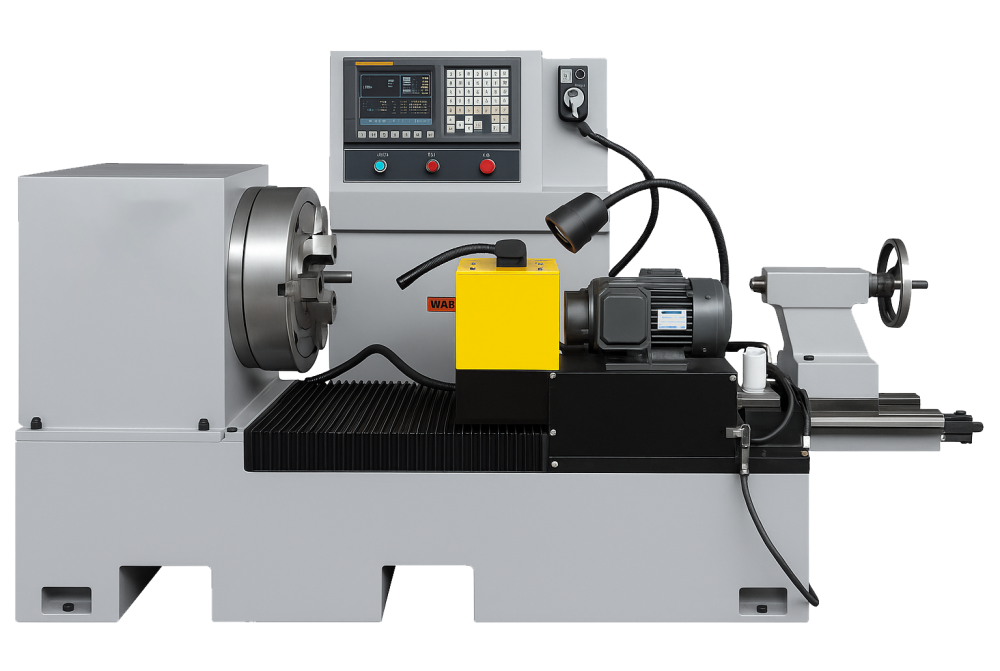

CNC Pvc Pipe Threading Lathe Machine
The CNC Pvc Pipe Threading Lathe Machine is designed for producing external threads on rods, pipes, or components. Typical users include fastener production, pipe shops, scaffolding plants, and maintenance, where guided tooling for consistent thread formation is valuable. Programmed motion supports repeatable positioning and cycle control.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
CNC Pvc Pipe Threading Lathe Machine
Machine Purpose
The CNC Pvc Pipe Threading Lathe Machine provides a dedicated method of producing external threads on rods, pipes, or components. Rather than acting as unrelated general equipment, it brings the working elements together around bars, fasteners, pipes, and construction rods.
How It Works
A typical cycle begins with locating the job correctly, after which the machine feeds dies, rolls, or a cutter along supported work. Its guided tooling for consistent thread formation supports repeat work without replacing the need for trained operation. Programmed motion supports repeatable positioning and cycle control.
Industrial Applications
The machine is applicable to fastener production, pipe shops, scaffolding plants, and maintenance. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
Machines within lathe machines can differ in arrangement and capability. The required CNC Pvc Pipe Threading Lathe Machine should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Parameter | Specification |
| Pipe Diameter Range | 20 mm – 315 mm (customizable) |
| Max Pipe Length | 500 mm – 6000 mm |
| Spindle Bore | 80 mm – 300 mm |
| Thread Types Supported | BSPT, NPT, BSP, ISO, DIN |
| Spindle Speed | 100 – 1200 RPM |
| No. of Axes | 2 to 4 (X & Z standard) |
| Control System | CNC (Siemens/Fanuc/Delta) |
| Positioning Accuracy | ±0.02 mm |
| Motor Power | 3 – 10 HP |
| Frame Construction | Cast Iron/Steel Base Frame |
Accessories
Standard Accessories / Machine Parts
Chuck Plate
Dead Centers
Face Plate
Follow Rest Assembly
Set of 22 Change Gears
Stationery Steady
Tool Box
Accessories
Optional Accessories
3jaw self centering chuck
4jaw Independent Chuck
Digital Read Out
Electric Coolant Pump
Electric Motor & Starter
Gears to Cut Metric Threads
Norton Gear Box
Revolving Center
Taper turning attachment
Tool Post Grinder

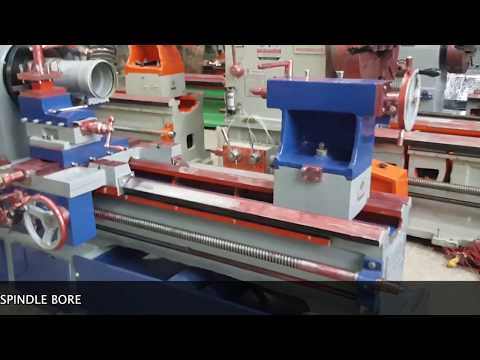

Videos
Product Videos
Applications
Applications
Aerospace Industry
Appliance Manufacturing
Automotive Industry
DIY metalworking and model engineering
Educational Institutes
Fabrication Workshops
General Sheet Metal Cutting
Heavy Engineering
Metal Fabrication Shops
Mining Industries
Power Plants
Precision turning of small parts
Shaft turning and thread cutting
Ship Building
Fasteners Industries
Steel & Paper Mills
Sugar Mills
Textile Industries
Tool Rooms
Turning, facing and taper turning of large diameter shafts
Used for heavy and long workpieces in large scale industries
FAQs
Frequently Asked Questions
Why is a CNC Pvc Pipe Threading Lathe Machine used in industrial work?
The CNC Pvc Pipe Threading Lathe Machine is intended for producing external threads on rods, pipes, or components. It is arranged around bars, fasteners, pipes, and construction rods, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a CNC Pvc Pipe Threading Lathe Machine?
The machine feeds dies, rolls, or a cutter along supported work. Its guided tooling for consistent thread formation supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a CNC Pvc Pipe Threading Lathe Machine handle?
It is primarily associated with bars, fasteners, pipes, and construction rods. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a CNC Pvc Pipe Threading Lathe Machine typically installed?
Typical users include fastener production, pipe shops, scaffolding plants, and maintenance. In these settings, the CNC Pvc Pipe Threading Lathe Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a CNC Pvc Pipe Threading Lathe Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a CNC Pvc Pipe Threading Lathe Machine?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a CNC Pvc Pipe Threading Lathe Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title CNC Pvc Pipe Threading Lathe Machine.
What is the benefit of CNC control on this CNC Pvc Pipe Threading Lathe Machine?
Programmed motion supports repeatable positioning and cycle control. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
