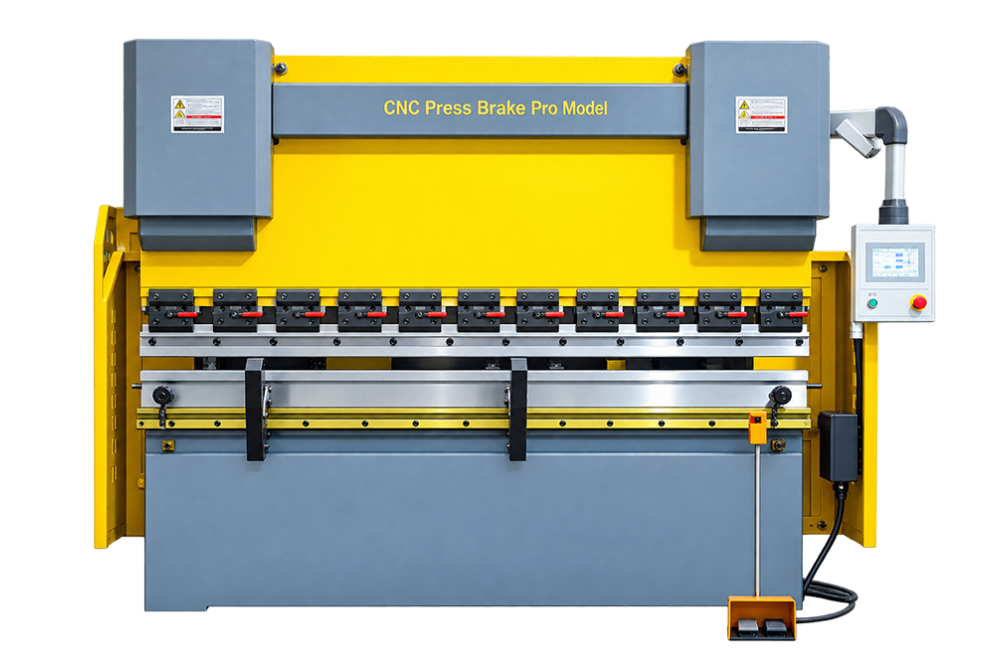

CNC Press Brake Pro Model
The CNC Press Brake Pro Model handles sheet blanks, panels, brackets, and profiles through a layout intended for forming straight bends in sheet and plate. Typical users include enclosure production, ducting, and fabrication shops, where guided ram motion with adaptable tooling is valuable. Programmed motion supports repeatable positioning and cycle control.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
CNC Press Brake Pro Model
Machine Purpose
The CNC Press Brake Pro Model provides a dedicated method of forming straight bends in sheet and plate. Rather than acting as unrelated general equipment, it brings the working elements together around sheet blanks, panels, brackets, and profiles.
How It Works
In operation, it drives a punch into a matched die along the bend line. The practical focus is guided ram motion with adaptable tooling. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup. Programmed motion supports repeatable positioning and cycle control.
Industrial Applications
Likely users are found in enclosure production, ducting, and fabrication shops. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen CNC Press Brake Pro Model.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | Nominal Pressure kn | Length Of Table mm | Distance Between Frames mm | Open Height mm | Throat Depth mm | Slide Stroke mm | Motor Power kw |
|---|---|---|---|---|---|---|---|
| PCBPP-40T/2500 | 400 | 2500 | 2050 | 210 | 200 | 110 | 4 |
| PCBPP-63T/2500 | 630 | 2500 | 2050 | 235 | 250 | 120 | 5.5 |
| PCBPP-100T/3200 | 1000 | 3200 | 2500 | 330 | 320 | 150 | 7.5 |
| PCBPP-125T/3200 | 1250 | 3200 | 2500 | 330 | 320 | 150 | 7.5 |
| PCBPP-160T/3200 | 1600 | 3200 | 2500 | 400 | 320 | 200 | 11 |
| PCBPP-200T/3200 | 2000 | 3200 | 2500 | 435 | 300 | 200 | 15 |
| PCBPP-200T/4000 | 2000 | 4000 | 3100 | 435 | 300 | 200 | 15 |
| PCBPP-200T/6000 | 2000 | 6000 | 4800 | 435 | 320 | 200 | 15 |
| PCBPP-250T/3200 | 2500 | 3200 | 2500 | 435 | 320 | 200 | 18.5 |
| PCBPP-250T/4000 | 2500 | 4000 | 3100 | 435 | 320 | 200 | 18.5 |
| PCBPP-250T/6000 | 2500 | 6000 | 4800 | 435 | 350 | 200 | 18.5 |
| PCBPP-300T/3200 | 3000 | 3200 | 2600 | 435 | 350 | 200 | 22 |
| PCBPP-300T/4000 | 3000 | 4000 | 3100 | 435 | 350 | 200 | 22 |
FAQs
Frequently Asked Questions
What is a CNC Press Brake Pro Model used for?
The CNC Press Brake Pro Model is intended for forming straight bends in sheet and plate. It is arranged around sheet blanks, panels, brackets, and profiles, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What is the working principle of a CNC Press Brake Pro Model?
The machine drives a punch into a matched die along the bend line. Its guided ram motion with adaptable tooling supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
Which components are normally processed on a CNC Press Brake Pro Model?
It is primarily associated with sheet blanks, panels, brackets, and profiles. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What type of workshop needs a CNC Press Brake Pro Model?
Typical users include enclosure production, ducting, and fabrication shops. In these settings, the CNC Press Brake Pro Model may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How do I choose the right CNC Press Brake Pro Model?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
How should a CNC Press Brake Pro Model be maintained for reliable operation?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
How is a CNC Press Brake Pro Model price determined?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title CNC Press Brake Pro Model.
What is the benefit of CNC control on this CNC Press Brake Pro Model?
Programmed motion supports repeatable positioning and cycle control. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
