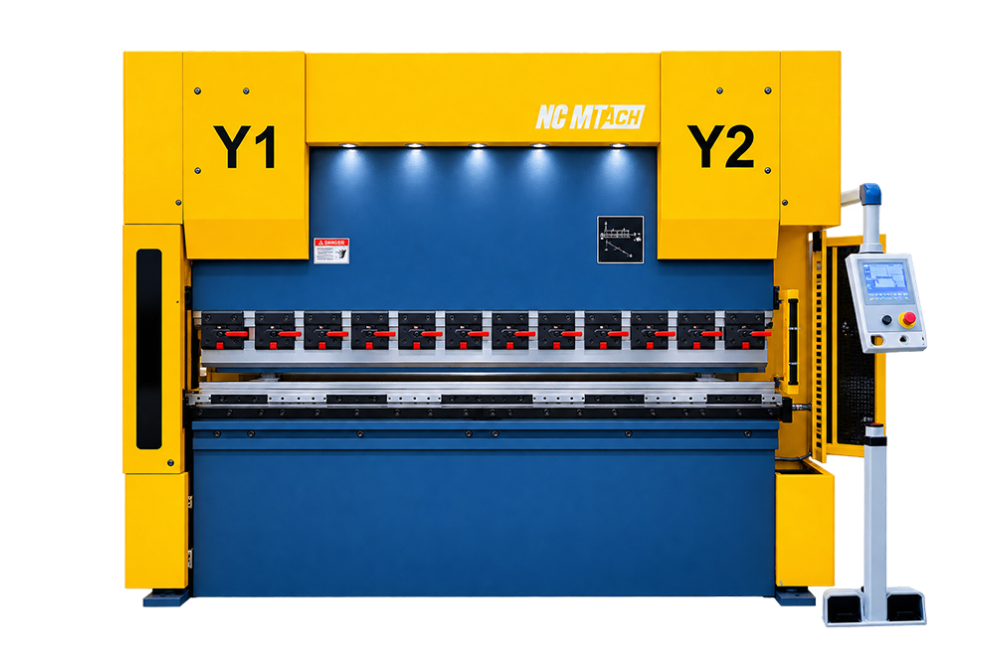

CNC Press Brake Machine
Built around forming straight bends in sheet and plate, the CNC Press Brake Machine provides a dedicated working arrangement. It drives a punch into a matched die along the bend line, with guided ram motion with adaptable tooling. Programmed motion supports repeatable positioning and cycle control.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
CNC Press Brake Machine
Machine Purpose
Used for forming straight bends in sheet and plate, the CNC Press Brake Machine addresses a distinct stage of industrial work. It accommodates sheet blanks, panels, brackets, and profiles and keeps setup, tool engagement, and job handling centred on that task.
Industrial Applications
Likely users are found in enclosure production, ducting, and fabrication shops. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
How It Works
A typical cycle begins with locating the job correctly, after which the machine drives a punch into a matched die along the bend line. Its guided ram motion with adaptable tooling supports repeat work without replacing the need for trained operation. Programmed motion supports repeatable positioning and cycle control.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen CNC Press Brake Machine.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | Bending Capacity (Ton) | (A) Bending Length (Mm) | (C) Dist. Between Uprights (Mm) | (H) Table Height (Mm) | Stroke Of Ram (Mm) | (F) Dist. Between Table/Ram (Mm) | (G) Depth Of Throat (Mm) | Approaching Speed (Mm/s) | Working Speed (Mm/s) | Return Speed (Mm/s) | Motor Power (Kw) | Oil Tank (L) | (B) Length Of Machine (Mm) | (E) Width Of Machine (Mm) | (D) Height Of Machine (Mm) | Weight Of Machine (Kgs.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CNPB-0520 | 50 | 2050 | 1640 | 900 | 200 | 380 | 300 | 150 | 10 | 110 | 6 | 180 | 2185 | 1450 | 2275 | 5000 |
| CNPB-0825 | 80 | 2550 | 2050 | 900 | 200 | 380 | 400 | 150 | 10 | 110 | 7.5 | 260 | 2640 | 1640 | 2300 | 6000 |
| CNPB-1030 | 100 | 3050 | 2550 | 900 | 200 | 400 | 400 | 130 | 10 | 110 | 10 | 320 | 3320 | 1660 | 2615 | 7000 |
| CNPB-1040 | 100 | 4050 | 3150 | 900 | 200 | 400 | 400 | 130 | 10 | 110 | 10 | 320 | 4320 | 1660 | 2615 | 9000 |
| CNPB-1330 | 135 | 3050 | 2550 | 900 | 200 | 400 | 400 | 120 | 10 | 110 | 12.5 | 320 | 3320 | 1700 | 2615 | 10000 |
| CNPB-1340 | 135 | 4050 | 3150 | 900 | 200 | 400 | 400 | 120 | 10 | 110 | 12.5 | 320 | 4320 | 1700 | 2615 | 12000 |
| CNPB-1630 | 165 | 3050 | 2550 | 900 | 200 | 400 | 400 | 120 | 10 | 110 | 15 | 350 | 3320 | 1750 | 3100 | 12000 |
| CNPB-1640 | 165 | 4050 | 3150 | 900 | 200 | 400 | 400 | 120 | 10 | 110 | 15 | 350 | 4320 | 1750 | 3100 | 13000 |
| CNPB-2030 | 200 | 3050 | 2550 | 900 | 250 | 450 | 400 | 100 | 10 | 100 | 20 | 400 | 3320 | 1900 | 3200 | 13000 |
| CNPB-2040 | 200 | 4050 | 3150 | 900 | 250 | 450 | 400 | 100 | 10 | 100 | 20 | 400 | 4320 | 1900 | 3200 | 14000 |
FAQs
Frequently Asked Questions
Which operation is the CNC Press Brake Machine designed to perform?
The CNC Press Brake Machine is intended for forming straight bends in sheet and plate. It is arranged around sheet blanks, panels, brackets, and profiles, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a CNC Press Brake Machine work?
The machine drives a punch into a matched die along the bend line. Its guided ram motion with adaptable tooling supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a CNC Press Brake Machine?
It is primarily associated with sheet blanks, panels, brackets, and profiles. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a CNC Press Brake Machine?
Typical users include enclosure production, ducting, and fabrication shops. In these settings, the CNC Press Brake Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different CNC Press Brake Machine models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a CNC Press Brake Machine require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a CNC Press Brake Machine vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title CNC Press Brake Machine.
What is the benefit of CNC control on this CNC Press Brake Machine?
Programmed motion supports repeatable positioning and cycle control. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
