CNC Machines

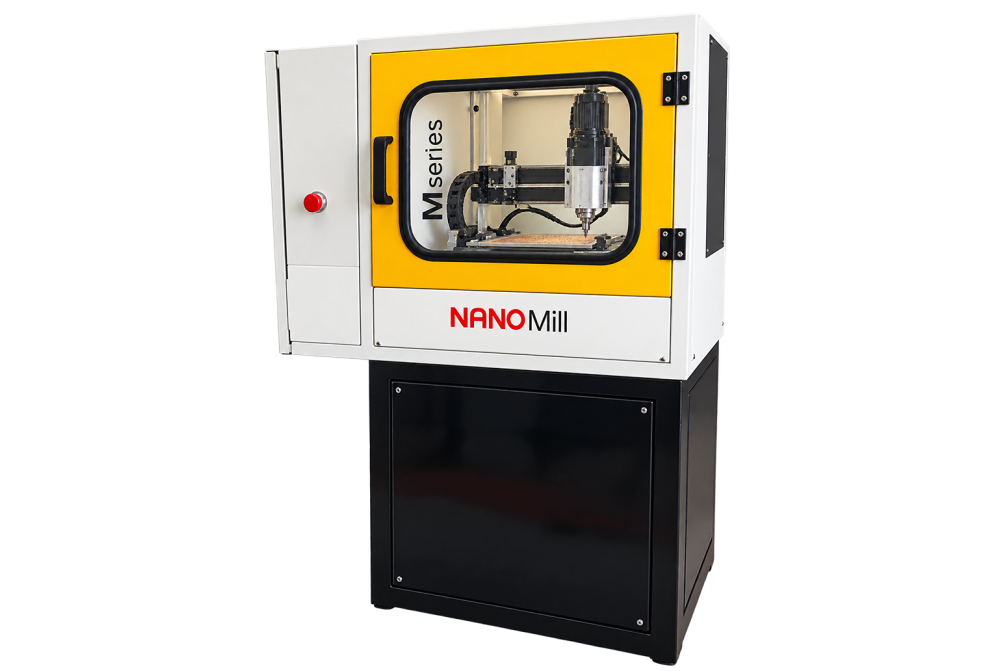

Cnc Pcb Router Drilling Machine
The primary role of the Cnc Pcb Router Drilling Machine is routing profiles, pockets, grooves, and engraved details. The operating method supports sign making, furniture, pattern work, panels, and prototyping and centres on versatile cutter movement for detailed profiles. Programmed motion supports repeatable positioning and cycle control.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Cnc Pcb Router Drilling Machine
Machine Purpose
Used for routing profiles, pockets, grooves, and engraved details, the Cnc Pcb Router Drilling Machine addresses a distinct stage of industrial work. It accommodates wood, plastic, composite, stone, or other title-specific material and keeps setup, tool engagement, and job handling centred on that task.
Industrial Applications
Likely users are found in sign making, furniture, pattern work, panels, and prototyping. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
How It Works
A typical cycle begins with locating the job correctly, after which the machine moves a rotating cutter through guided or programmed paths. Its versatile cutter movement for detailed profiles supports repeat work without replacing the need for trained operation. Programmed motion supports repeatable positioning and cycle control.
Selection Considerations
Machines within cnc machines can differ in arrangement and capability. The required Cnc Pcb Router Drilling Machine should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
|
PARAMETERS
|
DESCRIPTION
|
| Ball | Pitch = 5mm (All 3 axes i.e. X Y Z) Dia = 16 mm |
| Machine Structure and material of Construction | Cast Steel. |
| Machine Slides (XYZ) | Precision Linear Guideways. |
| Axes Motor (XYZ) | Stepper Motor NEMA23, Microstepping, 19 kg-cm, 1.8deg, 2.8 Amp, bi phase motors. |
| Spindle Motor | 0.8 kw, 25000RPM, Air- Cooled, Runnout=20microns |
| Axes Motor Drive Electronics (XYZ) | Noiseless Microstepping drive . Operating Voltage = 24V DC |
| Home Position Sensors | Ultra precision proximity inductive sensors with repeatability of 0.01mm & response time of 0.1 secs. Type : PNB-NO.Operating Voltage : 24V DC |
| Min drill Hole Size | 0.3 mm |
| Min Cutting Space | 0.1 mm |
| XYZ Resolution | 0.006 mm |
| Files Compatiable | Gerber, Excellon generated from any PCB CAD Software |
| CAM Software | Built -in CAM software to genarate files for isolation routing and drilling |
| PC Connectivity | USB Connectivity |
| Graphical User Interface Software for machine Control & Manufacturing | Provided |
| Operating System requirements | Window 7 64 bit or 32 - bit or Linux (Unbuntu) |
| Supports G Codes | Provided |
| Operations Supported | Engraving, Drilling, Milling Trimming, Profilling,Routing, Pocketting,isolation Routing etc. |
| Accessories | Brush, Allen key set, Adhesive tape, copper clad board, Nose piler, Power cord, USB cable, Tool set(Drill bits, Routr bits,Engraving bits) |
| Multi-Purpose Heavy Duty Desktop CNC machine. | Application involve PCB prototyping, Enclosure prototyping etc. |
| Warpage Compensation or Automatic Tool Height Control System | The Said workpiece is scanned from top for surface non-uniformities and flatness of copper clad board.For precison engraving, height is an extremely critical and important parameter to be cotrolled As per the scanned topography,the height of the tool is automatically compensated in run-Time. This gives precision engraving perfomance. |
| Power Requirement | Single phase AC 230V,50Hz. |
| Machine dimensions | 500 x 400 x 300 (L mm x B mm x Z mm). |
| Working Area | 300 x 250 x 60 (X mm x Y mm x Z mm). |
| Toolset | Engraving V-bits 60deg/30 deg/45 deg. End-mills,Drills |
| Warranty | 1 Year |
| Weight | 90 kg |
| Maximum PCB Layers | Dual layer |
| Engraving Parameters | 0.2 mm |

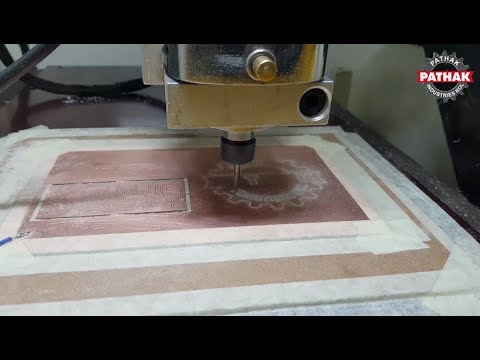

Videos
Product Videos
FAQs
Frequently Asked Questions
Why is a Cnc Pcb Router Drilling Machine used in industrial work?
The Cnc Pcb Router Drilling Machine is intended for routing profiles, pockets, grooves, and engraved details. It is arranged around wood, plastic, composite, stone, or other title-specific material, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a Cnc Pcb Router Drilling Machine?
The machine moves a rotating cutter through guided or programmed paths. Its versatile cutter movement for detailed profiles supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a Cnc Pcb Router Drilling Machine handle?
It is primarily associated with wood, plastic, composite, stone, or other title-specific material. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a Cnc Pcb Router Drilling Machine typically installed?
Typical users include sign making, furniture, pattern work, panels, and prototyping. In these settings, the Cnc Pcb Router Drilling Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a Cnc Pcb Router Drilling Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a Cnc Pcb Router Drilling Machine?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a Cnc Pcb Router Drilling Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Cnc Pcb Router Drilling Machine.
When is CNC control useful on a Cnc Pcb Router Drilling Machine?
Programmed motion supports repeatable positioning and cycle control. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
