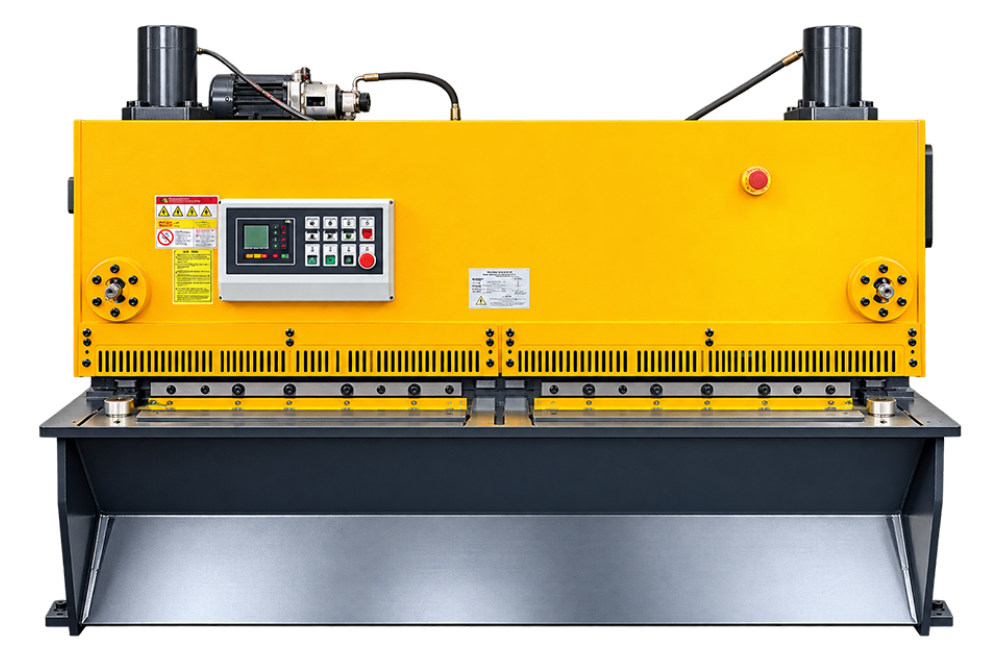

CNC NC Shearing Machine
Built around cutting sheet, plate, sections, or scrap without conventional sawing, the CNC NC Shearing Machine provides a dedicated working arrangement. Its guided blade movement and stable material support suits fabrication shops, recycling yards, and metal processors. Programmed motion supports repeatable positioning and cycle control.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
CNC NC Shearing Machine
Machine Purpose
The CNC NC Shearing Machine provides a dedicated method of cutting sheet, plate, sections, or scrap without conventional sawing. Rather than acting as unrelated general equipment, it brings the working elements together around sheet blanks, plate, bars, or title-specific scrap.
How It Works
Its cycle is based on the way it passes a moving blade through material supported at the cutting zone. The design therefore prioritises guided blade movement and stable material support; actual output still depends on the chosen model, tool, workpiece, and operating method. Programmed motion supports repeatable positioning and cycle control.
Industrial Applications
Natural settings include fabrication shops, recycling yards, and metal processors. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
Selection Considerations
Machines within sheet metal machines can differ in arrangement and capability. The required CNC NC Shearing Machine should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | Cutting Capacity | Cutting Length | No. Of Holds Downs | Rake Angle Deg. | No. Of Stokes | Backgauge Strokes | Motor HP | Length | Height | Width |
|---|---|---|---|---|---|---|---|---|---|---|
| PNCS 1504 | 4 | 1500 | 7 | 0.5-2.5 | 10 to 14 | 750 | 7.5 | 2000 | 1650 | 975 |
| PNCS 1506 | 6 | 1500 | 7 | 0.5-2.6 | 10 to 14 | 750 | 10 | 2000 | 1650 | 975 |
| PNCS 2004 | 4 | 2000 | 9 | 0.5-2.5 | 10 to 14 | 750 | 7.5 | 2500 | 1650 | 975 |
| PNCS 2006 | 6 | 2000 | 9 | 0.5-2.5 | 10 to 14 | 750 | 10 | 2500 | 1650 | 975 |
| PNCS 2008 | 8 | 2000 | 9 | 0.5-2.5 | 10 to 14 | 750 | 10 | 2500 | 1850 | 975 |
| PNCS 2010 | 10 | 2000 | 9 | 0.5-2.5 | 8 to 12 | 750 | 15 | 2500 | 1850 | 975 |
| PNCS 2013 | 13 | 2000 | 9 | 0.5-2.5 | 8 to 12 | 750 | 20 | 2500 | 2050 | 975 |
| PNCS 2016 | 16 | 2000 | 9 | 0.5-2.5 | 8 to 12 | 750 | 25 | 2500 | 2050 | 975 |
| PNCS 2504 | 4 | 2500 | 11 | 0.5-2.5 | 10 to 14 | 750 | 7.5 | 3000 | 1650 | 975 |
| PNCS 2506 | 6 | 2500 | 11 | 0.5-2.5 | 10 to 14 | 750 | 10 | 3000 | 1650 | 975 |
| PNCS 2508 | 8 | 2500 | 11 | 0.5-2.5 | 10 to 14 | 750 | 10 | 3000 | 1850 | 975 |
| PNCS 2510 | 10 | 2500 | 11 | 0.5-2.5 | 10 to 14 | 750 | 15 | 3000 | 1850 | 975 |
| PNCS 2513 | 13 | 2500 | 11 | 0.5-2.5 | 8 to 12 | 750 | 20 | 3000 | 2050 | 975 |
| PNCS 2516 | 16 | 2500 | 11 | 0.5-2.5 | 8 to 12 | 750 | 25 | 3000 | 2050 | 975 |
| PNCS 3104 | 4 | 3000 | 13 | 0.5-2.5 | 10 to 14 | 750 | 7.5 | 3500 | 1650 | 975 |
| PNCS 3106 | 6 | 3000 | 13 | 0.5-2.5 | 10 to 14 | 750 | 10 | 3500 | 1650 | 975 |
| PNCS 3108 | 8 | 3000 | 13 | 0.5-2.5 | 8 to 12 | 750 | 10 | 3500 | 1850 | 975 |
| PNCS 3110 | 10 | 3000 | 13 | 0.5-2.5 | 7 to 10 | 750 | 20 | 3500 | 1850 | 975 |
| PNCS 3113 | 13 | 3000 | 13 | 0.5-2.5 | 7 to 10 | 750 | 15 | 3500 | 2050 | 1200 |
| PNCS 3116 | 16 | 3000 | 13 | 0.5-2.5 | 7 to 10 | 750 | 25 | 3500 | 2050 | 1200 |
| PNCS 4106 | 6 | 4000 | 18 | 0.5-2.5 | 7 to 10 | 750 | 10 | 4600 | 2050 | 1200 |
| PNCS 4108 | 8 | 4000 | 18 | 0.5-2.5 | 6 to 8 | 750 | 15 | 4600 | 2050 | 1200 |
| PNCS 4110 | 10 | 4000 | 18 | 0.5-2.5 sec. | 6 to 8 | 750 | 15 | 4600 | 2050 | 1200 |
FAQs
Frequently Asked Questions
What does a CNC NC Shearing Machine do?
The CNC NC Shearing Machine is intended for cutting sheet, plate, sections, or scrap without conventional sawing. It is arranged around sheet blanks, plate, bars, or title-specific scrap, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the CNC NC Shearing Machine complete its working cycle?
The machine passes a moving blade through material supported at the cutting zone. Its guided blade movement and stable material support supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a CNC NC Shearing Machine?
It is primarily associated with sheet blanks, plate, bars, or title-specific scrap. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a CNC NC Shearing Machine?
Typical users include fabrication shops, recycling yards, and metal processors. In these settings, the CNC NC Shearing Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a CNC NC Shearing Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a CNC NC Shearing Machine need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a CNC NC Shearing Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title CNC NC Shearing Machine.
How does CNC control affect the CNC NC Shearing Machine?
Programmed motion supports repeatable positioning and cycle control. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
