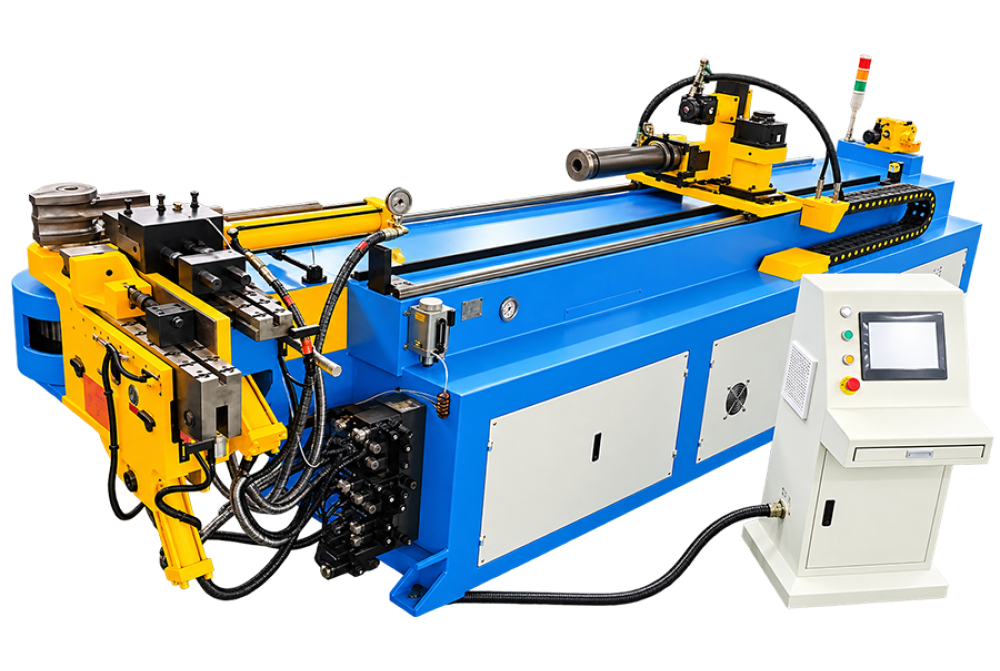

Cnc NC Heavy Duty Pipe Tube Bending Machine
Sheet Metal Machines

Cnc NC Heavy Duty Pipe Tube Bending Machine

For work involving the metal stock identified by the machine title, the Cnc NC Heavy Duty Pipe Tube Bending Machine offers a process-specific solution. The operating method supports structural fabrication, sheet-metal shops, and component production and centres on dedicated tooling that supports material during forming. Programmed motion supports repeatable positioning and cycle control. The heavy-duty designation indicates demanding use, although…

Enquire Now Technical Specifications

Order By Phone

Shipping Information Usually dispatched With In business days

+91-91240-09247 +91-88959-29247
Overview

Product Overview

Cnc NC Heavy Duty Pipe Tube Bending Machine

Machine Purpose

The Cnc NC Heavy Duty Pipe Tube Bending Machine provides a dedicated method of forming sheet, plate, pipe, bar, or sections into required shapes. Rather than acting as unrelated general equipment, it brings the working elements together around the metal stock identified by the machine title.

How It Works

In operation, it draws, presses, or rolls supported material around suitable tooling. The practical focus is dedicated tooling that supports material during forming. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup. Programmed motion supports repeatable positioning and cycle control. The heavy-duty designation indicates demanding use, although capacity must be verified.

Industrial Applications

The machine is applicable to structural fabrication, sheet-metal shops, and component production. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.

Selection Considerations

Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Cnc NC Heavy Duty Pipe Tube Bending Machine.

Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.

Specifications

Technical Specifications

MODEL NO PL32 (3 Axis) PPL45 (3 Axis) PPL65 ( 3 Axis) PPL100 (3 Axis)
Max. Tube Capacity ( D x T)

32mm x 2mm

(ferrous tubes UTS 45 kg/mm2)

45mm x 3mm

(Ferrous tubes UTS 45 kg /mm2)

65mm x 5mm

(Ferrous tubes UTS 45 kg/mm2)

114mm x 7mm

(Ferrous tubes UTS 45 kg/mm2)
Min. Tube Capacity (D) 6mm 12mm 20mm 20mm
Max. Bend Radius (CLR) 120mm 150mm 350mm 350mm
Min. Bend Radius (CLR) 20mm 25mm 30mm 30mm
Min. Bend Radius (in terms of D) 1.5D 1.5D 1.5D 1.5D
Length over mandrel 2 Meters 2 Meters 2 Meters 4 Meters
Carriage travel 1.5 Meters 1.5 Meters 1.5 Meters 2.5 Meters
Bend Angle Range 5 to 180 degrees 5 to 180 degrees 5 to 180 degrees 5 to 180 degrees
Bending Direction Clockwise Clockwise Clockwise Clockwise
Max .Bend Speed (Accaracy) 30 degrees (+-0.2) 30 degrees (+-0.2) 30 degrees (+-0.2) 30 degrees (+- 0.2)
  Push & Turn - Electric AC Servo Bend - Hydraulically Push & Turn - Electric AC Servo Bend - Hydraulically Push & Turn - Electric AC Servo Bend - Hydraulically Push & Turn - Electric AC Servo Bend - Hydraulically
Axis (Programmable) Max. Speed Max. Speed Max. Speed Accuracy Accuracy Max. Speed Accuracy Accuracy
400 mm / sec +- 0.1 mm
Push (DBB) - Y Axis 600 mm /sec

+- 0.1 mm

 600 mm / sec +- 0.1 mm 600 mm / sec +- 0.1 mm 120 deg / sec +- 0.1 deg
Turn (POB) - B Axis 200 deg / sec +- 0.1 deg 200 deg / sec +- 0.1 deg 200 deg / sec +- 0.1 deg 30 deg / mm +- 0.2 deg
Bend (DOB) - C Axis 90 deg / mm +- 0.2 deg 90 deg / mm +- 0.2 deg 90 deg / mm +- 0.2 deg
Plc & Servo System PLC, MMI & Servo Sysems of Mitsubishi make PLC, MMI & Servo Systems of Mitsubishi make PLC, MMI & Servo Systems of Mitsubishi make PLC, MMI & Servo Systems of mitsubishi make
Memory Capacity 12 bends per program, 50 programs 12 bends per program, 50 programs 12 bends per program, 50 programs 12 bends per program, 50 programs
Connected Load 5 KW for Hydraulics & 2 KW for Servo Motor 5 KW for Hydraulics & 2 KW for Servo Motor 5 KW for Hydraulics & 2 KW for Servo Motor 5 KW for Hydraulics & 2 KW for Servo Motor
  3 Phase AC, 415 V, 50 H2 3 Phase AC, 415 V, 50 H2 3 Phase AC, 415 V, 50 H2 3 Phase AC, 415 V, 50 H2
Oil Tank Capacity 150 litres (built in) 150 Litres (built in) 200 Litres (built in) 300 litres (built in)
Machine Lubrication Manual Centralized Lubrication System Manual Centralized Lubrication System Manual Centralized Lubrication System Manual Centralized Lubrication System
FAQs

Frequently Asked Questions

Which operation is the Cnc NC Heavy Duty Pipe Tube Bending Machine designed to perform?
The Cnc NC Heavy Duty Pipe Tube Bending Machine is intended for forming sheet, plate, pipe, bar, or sections into required shapes. It is arranged around the metal stock identified by the machine title, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a Cnc NC Heavy Duty Pipe Tube Bending Machine work?
The machine draws, presses, or rolls supported material around suitable tooling. Its dedicated tooling that supports material during forming supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a Cnc NC Heavy Duty Pipe Tube Bending Machine?
It is primarily associated with the metal stock identified by the machine title. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a Cnc NC Heavy Duty Pipe Tube Bending Machine?
Typical users include structural fabrication, sheet-metal shops, and component production. In these settings, the Cnc NC Heavy Duty Pipe Tube Bending Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different Cnc NC Heavy Duty Pipe Tube Bending Machine models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a Cnc NC Heavy Duty Pipe Tube Bending Machine require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a Cnc NC Heavy Duty Pipe Tube Bending Machine vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Cnc NC Heavy Duty Pipe Tube Bending Machine.
How does CNC control affect the Cnc NC Heavy Duty Pipe Tube Bending Machine?
Programmed motion supports repeatable positioning and cycle control. The heavy-duty designation indicates demanding use, although capacity must be verified. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
