CNC Machines

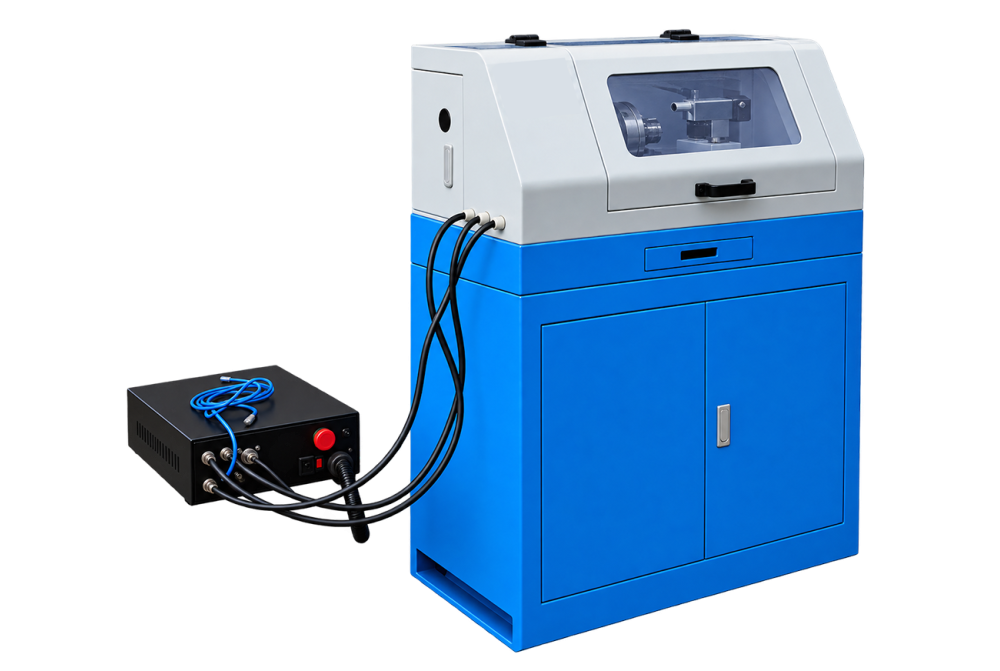

Cnc Lathe Machine Trainer
The Cnc Lathe Machine Trainer is designed for turning rotational components and producing faces, diameters, bores, or threads. The operating method supports machine shops, repair workshops, tool rooms, and component plants and centres on rigid workholding with controlled tool travel. Programmed motion supports repeatable positioning and cycle control. The trainer configuration exposes machine functions for supervised instruction.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Cnc Lathe Machine Trainer
Machine Purpose
For facilities needing turning rotational components and producing faces, diameters, bores, or threads, the Cnc Lathe Machine Trainer offers a process-specific workstation. Its arrangement supports shafts, bushes, sleeves, discs, and other title-specific round parts while keeping the important operating area accessible.
Industrial Applications
Natural settings include machine shops, repair workshops, tool rooms, and component plants. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
How It Works
A typical cycle begins with locating the job correctly, after which the machine rotates a securely held workpiece while a guided tool removes material. Its rigid workholding with controlled tool travel supports repeat work without replacing the need for trained operation. Programmed motion supports repeatable positioning and cycle control. The trainer configuration exposes machine functions for supervised instruction.
Selection Considerations
Machines within cnc machines can differ in arrangement and capability. The required Cnc Lathe Machine Trainer should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| CONTROLLER |
MACH 3
|
| Max swing over bed | 180mm |
| Max.length of work pieces | 300mm |
| Spindle bore | 20mm |
| Spindle taper | MT3 |
| Spindle speed | 50-2250rpm |
| Metric thread cutting | 0.5-2.5mm |
| Inch thread cutting | 12-52TPL |
| Electric toolpost | 4-Position |
| X Travel | 60mm |
| Z Travel | 250mm |
| X Moving speed | 800mm/min |
| Z Moving speed | 1200mm/min |
| Spindle motor power | 400w (optional;550w) |
| X Motor power | 1.5 NM |
| Z Motor power | 2 NM |
| Mini setting unit | 0.001mm |
| Tailstock diameter | 20mm |
| Tailstock Travel | 50mm |
| Tailstock taper | MT2 |
| Overall size | 900x400x1250mm |
| Net Weight | 90 kgs WITH STAND 135 KGS |
Accessories
Standard Accessories / Machine Parts
4 Position Toolpost
Brushless Motor
Cnc Lathe Machine Trainer Standard Accessories Image 3
Cnc Lathe Machine Trainer Standard Accessories Image 4
Cnc Lathe Machine Trainer Standard Accessories Image 5
Cnc Lathe Machine Trainer Standard Accessories Image 6
Cnc Lathe Machine Trainer Standard Accessories Image 7
Cnc Lathe Machine Trainer Standard Accessories Image 8
Cnc Lathe Machine Trainer Standard Accessories Image 1
Cnc Lathe Machine Trainer Standard Accessories Image 2
Tailstock
Videos
Product Videos
FAQs
Frequently Asked Questions
Which operation is the Cnc Lathe Machine Trainer designed to perform?
The Cnc Lathe Machine Trainer is intended for turning rotational components and producing faces, diameters, bores, or threads. It is arranged around shafts, bushes, sleeves, discs, and other title-specific round parts, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a Cnc Lathe Machine Trainer work?
The machine rotates a securely held workpiece while a guided tool removes material. Its rigid workholding with controlled tool travel supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a Cnc Lathe Machine Trainer?
It is primarily associated with shafts, bushes, sleeves, discs, and other title-specific round parts. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a Cnc Lathe Machine Trainer?
Typical users include machine shops, repair workshops, tool rooms, and component plants. In these settings, the Cnc Lathe Machine Trainer may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different Cnc Lathe Machine Trainer models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a Cnc Lathe Machine Trainer require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a Cnc Lathe Machine Trainer vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Cnc Lathe Machine Trainer.
What is the benefit of CNC control on this Cnc Lathe Machine Trainer?
Programmed motion supports repeatable positioning and cycle control. The trainer configuration exposes machine functions for supervised instruction. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
