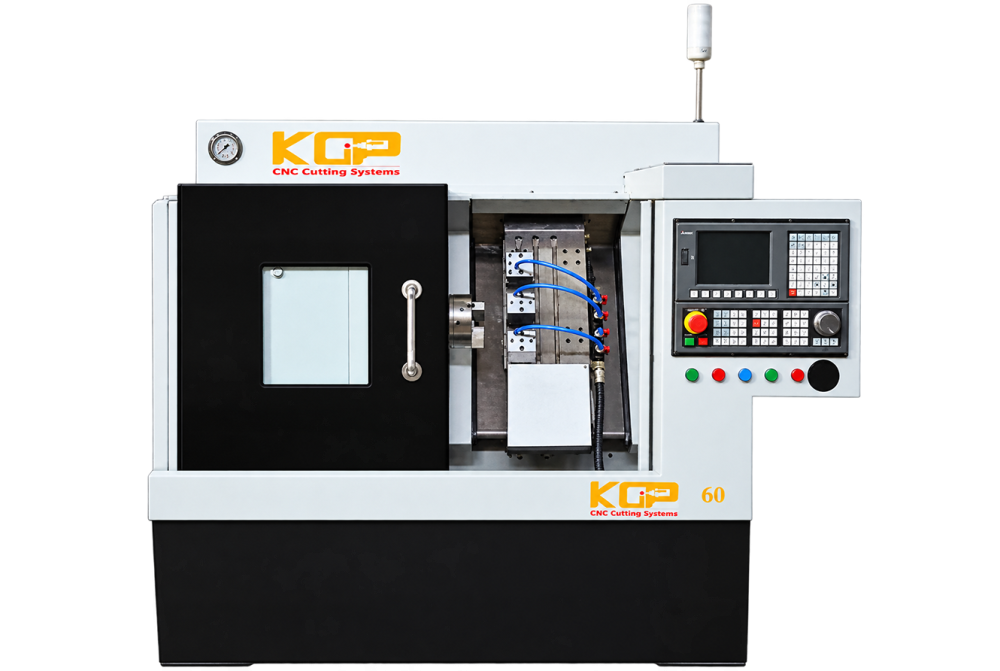

Cnc Lathe Machine KGP 60
The primary role of the Cnc Lathe Machine KGP 60 is turning rotational components and producing faces, diameters, bores, or threads. Its rigid workholding with controlled tool travel suits machine shops, repair workshops, tool rooms, and component plants. Programmed motion supports repeatable positioning and cycle control.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Cnc Lathe Machine KGP 60
Machine Purpose
For facilities needing turning rotational components and producing faces, diameters, bores, or threads, the Cnc Lathe Machine KGP 60 offers a process-specific workstation. Its arrangement supports shafts, bushes, sleeves, discs, and other title-specific round parts while keeping the important operating area accessible.
Industrial Applications
Likely users are found in machine shops, repair workshops, tool rooms, and component plants. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
How It Works
A typical cycle begins with locating the job correctly, after which the machine rotates a securely held workpiece while a guided tool removes material. Its rigid workholding with controlled tool travel supports repeat work without replacing the need for trained operation. Programmed motion supports repeatable positioning and cycle control.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Cnc Lathe Machine KGP 60.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
|
CAPACITY
|
||
| Max.Turning Length | mm | 180** |
| Max.job swing Diameter | mm | 180 |
| std.Turning Diameter | mm | 60 |
|
SLIDES
|
||
| Cross (X-Axis) | mm | 300 |
| Longitudinal (Z-Axis) Travel | mm | 200 |
| Rapid Feed (X & Z Axis) | m/min | 24 |
|
MAIN SPINDLE
|
||
| Spindle Motor Power | cont/30min.rating | 5.5/7 Kw |
| Spindle Bore | mm | 44 |
| Spindle Nose | - | A24 |
| STD.Chuck Dia | mm | 135 |
| Max.Bar capacity | mm | 36 |
| Spindle Speed Range | mm | 100/5000* |
| Full Power Speed Range | rpm | 800-3000 |
|
TOOLING (GANG STYLE)
|
||
| Tool Holder Shank height x width | mm | 20x20 |
| Boring Bar Shank Diameter | mm | 32max |
| ACCURACY (AS PER VDI/DGQ 3341) | ||
| Positioning | mm | 0.015 |
| Repeatability | mm | 0.003 |
|
MACHINE SIZE
|
||
| Machine Size | mm | 1760 |
| Floor Space (Length x Width) | mm | 1540 x 1208 |
| Machine Weight | kgs | 1550 Approx) |
| CNC System | GSK 988T/980 TDC/928 T without servo spindle |
-
|
Videos
Product Videos
FAQs
Frequently Asked Questions
What does a Cnc Lathe Machine KGP 60 do?
The Cnc Lathe Machine KGP 60 is intended for turning rotational components and producing faces, diameters, bores, or threads. It is arranged around shafts, bushes, sleeves, discs, and other title-specific round parts, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Cnc Lathe Machine KGP 60 complete its working cycle?
The machine rotates a securely held workpiece while a guided tool removes material. Its rigid workholding with controlled tool travel supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Cnc Lathe Machine KGP 60?
It is primarily associated with shafts, bushes, sleeves, discs, and other title-specific round parts. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Cnc Lathe Machine KGP 60?
Typical users include machine shops, repair workshops, tool rooms, and component plants. In these settings, the Cnc Lathe Machine KGP 60 may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Cnc Lathe Machine KGP 60?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Cnc Lathe Machine KGP 60 need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Cnc Lathe Machine KGP 60?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Cnc Lathe Machine KGP 60.
When is CNC control useful on a Cnc Lathe Machine KGP 60?
Programmed motion supports repeatable positioning and cycle control. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
