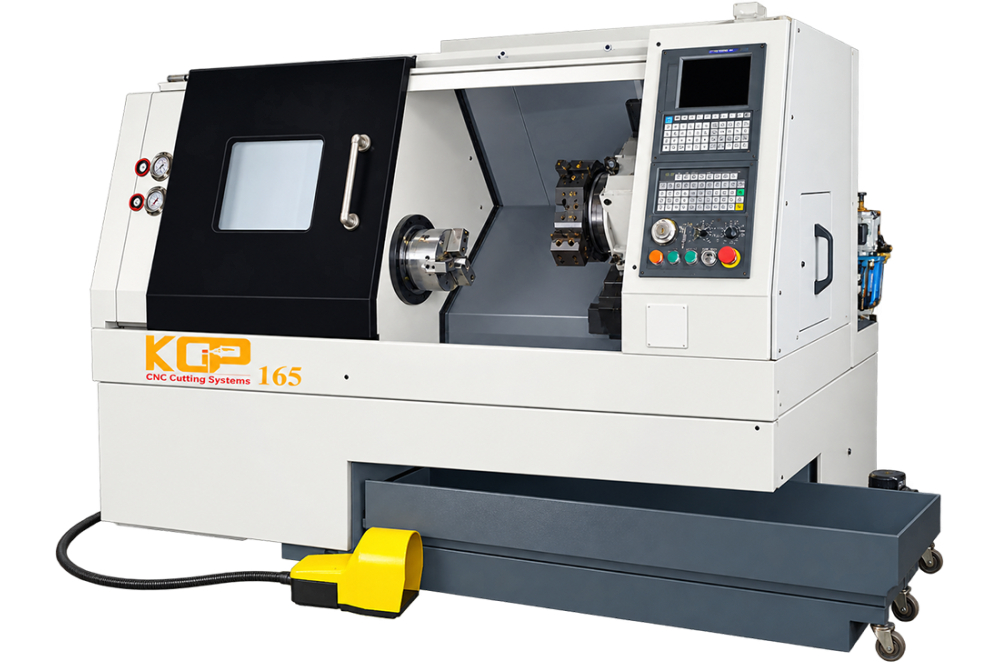

CNC Lathe Machine KGP 165
The CNC Lathe Machine KGP 165 handles shafts, bushes, sleeves, discs, and other title-specific round parts through a layout intended for turning rotational components and producing faces, diameters, bores, or threads. The operating method supports machine shops, repair workshops, tool rooms, and component plants and centres on rigid workholding with controlled tool travel. Programmed motion supports repeatable positioning and cycle…
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
CNC Lathe Machine KGP 165
Machine Purpose
For facilities needing turning rotational components and producing faces, diameters, bores, or threads, the CNC Lathe Machine KGP 165 offers a process-specific workstation. Its arrangement supports shafts, bushes, sleeves, discs, and other title-specific round parts while keeping the important operating area accessible.
Industrial Applications
Natural settings include machine shops, repair workshops, tool rooms, and component plants. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
How It Works
Its cycle is based on the way it rotates a securely held workpiece while a guided tool removes material. The design therefore prioritises rigid workholding with controlled tool travel; actual output still depends on the chosen model, tool, workpiece, and operating method. Programmed motion supports repeatable positioning and cycle control.
Selection Considerations
When comparing versions of the CNC Lathe Machine KGP 165, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
|
CAPACITY
|
KCP TURN 165 | KCP TURN 200 | KCP TURN 230 | KCP 230L | |
| Swing over Bed | mm | 475 | 500 | 500 | 500 |
| Maximum Turning Dia. | mm | 275 | 300 | 350 | 350 |
| Standard Turning Dia. | mm | 165 | 200 | 230 | 230 |
| Max.Turning Length (with chuck) | mm | 280 | 300 | 500 | 500 |
| Admit Between Centres | mm | 350 | 350 | 600 | 1200 |
| Chuck Size | mm | 170 | 200 | 210 | 210 |
|
TRAVERSES
|
|||||
| Cross (X-Axis) Travel | mm | 175 | 175 | 175 | 175 |
| Longitudinal (Z-Axis) Travel | mm | 350 | 550 | 550 | 1120 |
| Rapid Feed (X & Z Axis) | m/min | 30/30 | 30/30 | 30/30 | 30/30 |
|
MAIN SPINDLE
|
|||||
| Spindle Motor Power | cont/30 min. | 5.5/75KW | 5.5/75KW | 5.5/75KW | 5.5/75KW |
| Spindle Bore | mm | 45 | 45 | 56 | 56 |
| Spindle Nose | A2-5 | A2-5 | A2-6 | A2-6 | |
| Max.Bar Capacity | mm | 38 | 38 | 48 | 48 |
| Spindle Speed Range | rpm | 50-4500 | 50-4000 | 50-3500 | 50-3500 |
| Full Power Speed Range | rpm | 100-3300 | 1000-3300 | 1000-3000 | 1000-3000 |
|
TAIL STOCK
|
|||||
| Quill Dia. | mm | 80 | 80 | 80 | 80 |
| Quill Taper | mm | MT4 | MT4 | MT4 | MT4 |
| Quill Stroke | mm | 100 | 100 | 100 | 100 |
| Base Travel | mm | 250 | 250 | 400 | 400 |
|
TURRET
|
|||||
| No. of Tool Position | No. | 8 | 8 | 8 | 8 |
| Tool Shank Size | mm | 25x25 | 25x25 | 25x25 | 25x25 |
| Max Boring Bar Dia. | mm | 40 | 40 | 40 | 40 |
| Positioning Uncertainty | 0.007 | 0.007 | 0.007 | 0.007 | |
| Repeatability | mm | 0.003 | 0.003 | 0.003 | 0.003 |
|
OTHER
|
|||||
| Weight ( Approx.) | kgs. | 3400 | 3500 | 3900 | 4300 |
| Dimension (Approx.) | (L x W x H) | 2600x1450x1800 | 2600x1450x1800 | 2600x1450x1800 | 2600x1450x1800 |
Videos
Product Videos
FAQs
Frequently Asked Questions
Why is a CNC Lathe Machine KGP 165 used in industrial work?
The CNC Lathe Machine KGP 165 is intended for turning rotational components and producing faces, diameters, bores, or threads. It is arranged around shafts, bushes, sleeves, discs, and other title-specific round parts, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a CNC Lathe Machine KGP 165?
The machine rotates a securely held workpiece while a guided tool removes material. Its rigid workholding with controlled tool travel supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a CNC Lathe Machine KGP 165 handle?
It is primarily associated with shafts, bushes, sleeves, discs, and other title-specific round parts. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a CNC Lathe Machine KGP 165 typically installed?
Typical users include machine shops, repair workshops, tool rooms, and component plants. In these settings, the CNC Lathe Machine KGP 165 may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a CNC Lathe Machine KGP 165?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a CNC Lathe Machine KGP 165?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a CNC Lathe Machine KGP 165?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title CNC Lathe Machine KGP 165.
What is the benefit of CNC control on this CNC Lathe Machine KGP 165?
Programmed motion supports repeatable positioning and cycle control. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
