CNC Machines

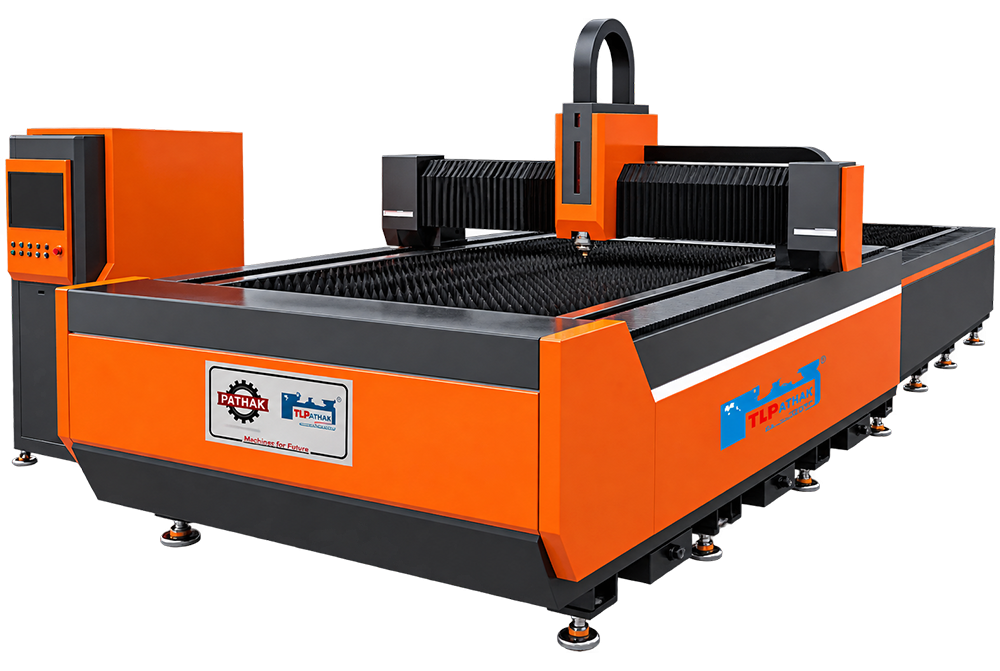

Cnc Fiber Laser Cutting
The Cnc Fiber Laser Cutting is designed for cutting precise profiles with a focused fibre-laser beam. Its programmable contouring with a narrow cutting path suits precision fabrication, enclosure production, and component manufacturing. Programmed motion supports repeatable positioning and cycle control.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Cnc Fiber Laser Cutting
Machine Purpose
Used for cutting precise profiles with a focused fibre-laser beam, the Cnc Fiber Laser Cutting addresses a distinct stage of industrial work. It accommodates metal sheet and plate suitable for laser processing and keeps setup, tool engagement, and job handling centred on that task.
Industrial Applications
The machine is applicable to precision fabrication, enclosure production, and component manufacturing. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
How It Works
A typical cycle begins with locating the job correctly, after which the machine moves a programmed cutting head over the material without mechanical tool contact. Its programmable contouring with a narrow cutting path supports repeat work without replacing the need for trained operation. Programmed motion supports repeatable positioning and cycle control.
Selection Considerations
When comparing versions of the Cnc Fiber Laser Cutting, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| 1000W fiber laser cutter cutting Thickness | ||
| - | Best Cutting Thickness | Max Cutting Thickness |
| CS | 8mm | 10mm |
| SS | 5mm | 6mm |
| Aluminium | 2mm | 3mm |
| Copper | 2mm | 3mm |
| Working size | 1500*300mm |
| Watts | 1000W |
| Libricate System | Yes |
| Auto libricate | Automatic |
| Laser device | Rycus |
| Cutting head | JiaQiang |
| Motor | Japan FUJI servo |
| Reduser | Japan XINBAO |
| Rail | HSAC(Taiwan) |
| Chiller | XQL |
| Operating System | Cypcut |
| Max working size | 3000*1500mm |
| Z axis | TBI ball screw |
| X working size | 1500mm |
| Y working size | 3000mm |
| Z working size | 120mm |
Short Videos
YouTube Short Videos
FAQs
Frequently Asked Questions
What does a Cnc Fiber Laser Cutting do?
The Cnc Fiber Laser Cutting is intended for cutting precise profiles with a focused fibre-laser beam. It is arranged around metal sheet and plate suitable for laser processing, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Cnc Fiber Laser Cutting complete its working cycle?
The machine moves a programmed cutting head over the material without mechanical tool contact. Its programmable contouring with a narrow cutting path supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Cnc Fiber Laser Cutting?
It is primarily associated with metal sheet and plate suitable for laser processing. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Cnc Fiber Laser Cutting?
Typical users include precision fabrication, enclosure production, and component manufacturing. In these settings, the Cnc Fiber Laser Cutting may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Cnc Fiber Laser Cutting?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Cnc Fiber Laser Cutting need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Cnc Fiber Laser Cutting?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Cnc Fiber Laser Cutting.
When is CNC control useful on a Cnc Fiber Laser Cutting?
Programmed motion supports repeatable positioning and cycle control. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
