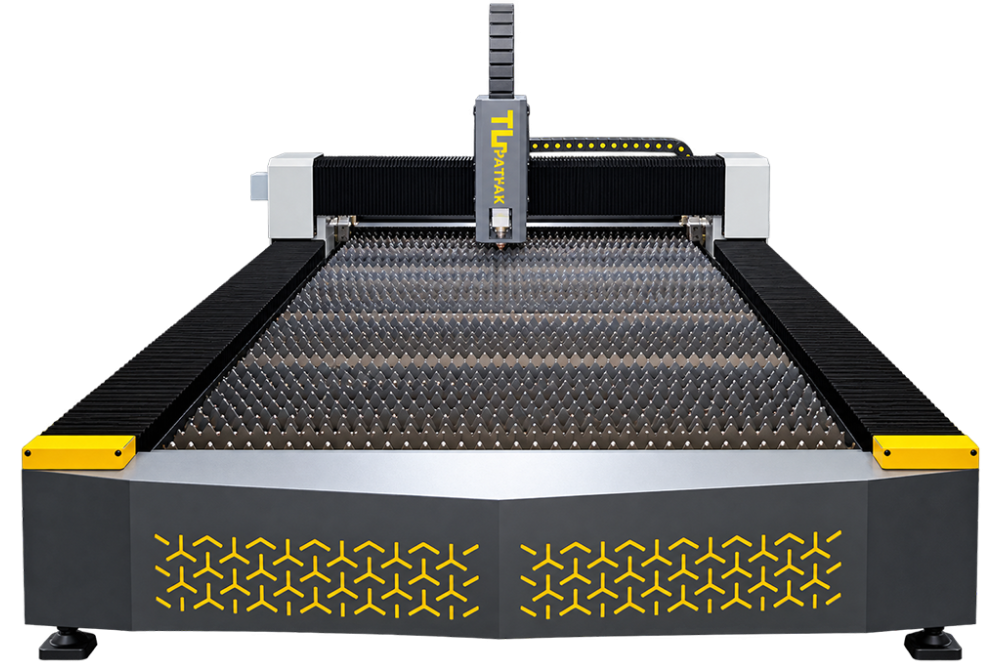

CNC Fiber Laser Cutting Machine - NT Series
The CNC Fiber Laser Cutting Machine - NT Series handles metal sheet and plate suitable for laser processing through a layout intended for cutting precise profiles with a focused fibre-laser beam. Typical users include precision fabrication, enclosure production, and component manufacturing, where programmable contouring with a narrow cutting path is valuable. Programmed motion supports repeatable positioning and cycle control.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
CNC Fiber Laser Cutting Machine - NT Series
Machine Purpose
The CNC Fiber Laser Cutting Machine - NT Series provides a dedicated method of cutting precise profiles with a focused fibre-laser beam. Rather than acting as unrelated general equipment, it brings the working elements together around metal sheet and plate suitable for laser processing.
How It Works
In operation, it moves a programmed cutting head over the material without mechanical tool contact. The practical focus is programmable contouring with a narrow cutting path. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup. Programmed motion supports repeatable positioning and cycle control.
Industrial Applications
The machine is applicable to precision fabrication, enclosure production, and component manufacturing. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
When comparing versions of the CNC Fiber Laser Cutting Machine - NT Series, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | TLPFLC-1 | TLPFLC-2 |
| Laser Power | Max Brand | Max Brand |
| Laser Head | BM 111 Auto Focus | BM 111 Auto Focus |
| Cutting Software | Raytool (Swiss) | Raytool (Swiss) |
| Machine X-Axis Beam | Cast Aluminum | Cast Aluminum |
| Remote | Standard | Standard |
| Computer | Industrial Computer | Industrial Computer |
| Display | Standard Model | Standard Model |
| Motor & Driver | Lead Motion | Lead Motion |
| Linear guide | T-win (Taiwan) | T-win (Taiwan) |
| Water Chiller | S & A / Hanli | S & A / Hanli |
| Proportional Valve | SMC (Pneumatic System) | SMC (Pneumatic System) |
| Material | MS,SS,AI | MS,SS,AI |
| Thickness in mm | MS-12mm,SS-5mm,AI-1mm | MS-14mm,SS-7mm,AI-3mm |
| Pellet Changer Payload 600 kg | Change time 5-15 sec (in Auto Mode) | Change time 5-15 sec (in Auto Mode) |
| Working Area (Length x Width) | 3000 mm x 1500 mm | 3000 mm x 1500 mm |
| X-Axis Travel | 1500 mm | 1500 mm |
| Y-Axis Travel | 3000 mm | 3000 mm |
| Z-Axis Travel | 230 mm | 230 mm |
| X,Y Axis Positioning Accuracy | 0.05mm/m | 0.05mm/m |
| X,Y Axis Repeat Positioning Accuracy | 0.05mm | 0.05mm |
| X,Y Axis Maximum Acceleration | 1.0 G | 1.0 G |
| X,Y Axis Maximum Acceleration | 1.0 G | 1.0 G |
| Input Voltage-(AC Supply) | AC 230V | AC 230V |
| Machine Space Requirement (LW) | 6250mm x 5750mm | 6250mm x 5750mm |
| Machine Weight | 2700 Kg | 2700 Kg |
Videos
Product Videos
FAQs
Frequently Asked Questions
What does a CNC Fiber Laser Cutting Machine - NT Series do?
The CNC Fiber Laser Cutting Machine - NT Series is intended for cutting precise profiles with a focused fibre-laser beam. It is arranged around metal sheet and plate suitable for laser processing, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the CNC Fiber Laser Cutting Machine - NT Series complete its working cycle?
The machine moves a programmed cutting head over the material without mechanical tool contact. Its programmable contouring with a narrow cutting path supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a CNC Fiber Laser Cutting Machine - NT Series?
It is primarily associated with metal sheet and plate suitable for laser processing. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a CNC Fiber Laser Cutting Machine - NT Series?
Typical users include precision fabrication, enclosure production, and component manufacturing. In these settings, the CNC Fiber Laser Cutting Machine - NT Series may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a CNC Fiber Laser Cutting Machine - NT Series?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a CNC Fiber Laser Cutting Machine - NT Series need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a CNC Fiber Laser Cutting Machine - NT Series?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title CNC Fiber Laser Cutting Machine - NT Series.
How does CNC control affect the CNC Fiber Laser Cutting Machine - NT Series?
Programmed motion supports repeatable positioning and cycle control. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
