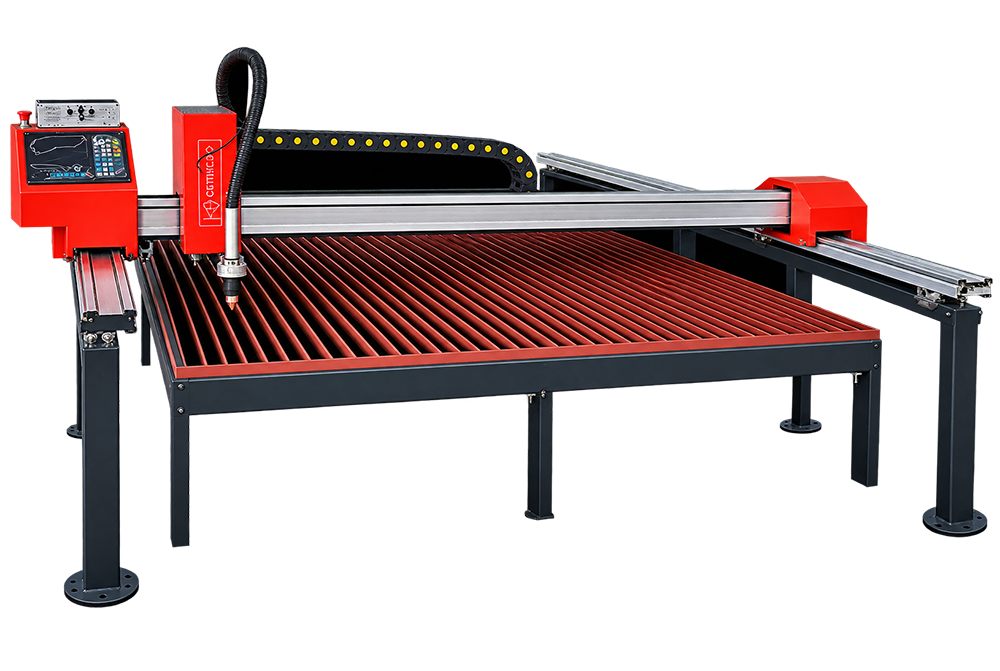

CNC Cutting Machine Portable Gantry
Built around separating material into required sizes or profiles, the CNC Cutting Machine Portable Gantry provides a dedicated working arrangement. Typical users include material preparation, fabrication, maintenance, and production, where stable work support close to the cutting area is valuable. Programmed motion supports repeatable positioning and cycle control. Its portable format takes the operation to the job or installed component.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
CNC Cutting Machine Portable Gantry
Machine Purpose
For facilities needing separating material into required sizes or profiles, the CNC Cutting Machine Portable Gantry offers a process-specific workstation. Its arrangement supports the stock or component identified by the title while keeping the important operating area accessible.
Industrial Applications
Natural settings include material preparation, fabrication, maintenance, and production. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
How It Works
A typical cycle begins with locating the job correctly, after which the machine guides a suitable cutting tool through securely supported work. Its stable work support close to the cutting area supports repeat work without replacing the need for trained operation. Programmed motion supports repeatable positioning and cycle control. Its portable format takes the operation to the job or installed component.
Selection Considerations
Machines within cnc machines can differ in arrangement and capability. The required CNC Cutting Machine Portable Gantry should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | TLPPGC-2030/2560 |
| Cutting Area | 2000x3000 (can be customized) |
| Input Voltage | AC 220 V for CNC and 415 V for Plasma |
| CNC Controller | F2100B,7" Colour Screen |
| Torch Lifter (Flame and Plasma) | T.L. Pathak Group |
| Drive Motor | Double Slide |
| Cutting Speed | 0-3500 mm/min |
| Nesting Software | Fastcam |
| Auto Torch Height Controller for Plasma | T.L. Pathak Group |
| Air (require clean,dry and oil free air) | 4.5-7 kg |
| Plasma Cutting Thickness | Depends on Plasma Source |
| Applicable Material | MS,SS,GI |
| Plasma Power Source with Cutting Torch | T.L. Pathak Group |
| Plasma Cutting Range | 1-25 mm |
| Flame Cutting Range | 5-60 mm |
FAQs
Frequently Asked Questions
What is a CNC Cutting Machine Portable Gantry used for?
The CNC Cutting Machine Portable Gantry is intended for separating material into required sizes or profiles. It is arranged around the stock or component identified by the title, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What is the working principle of a CNC Cutting Machine Portable Gantry?
The machine guides a suitable cutting tool through securely supported work. Its stable work support close to the cutting area supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
Which components are normally processed on a CNC Cutting Machine Portable Gantry?
It is primarily associated with the stock or component identified by the title. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What type of workshop needs a CNC Cutting Machine Portable Gantry?
Typical users include material preparation, fabrication, maintenance, and production. In these settings, the CNC Cutting Machine Portable Gantry may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How do I choose the right CNC Cutting Machine Portable Gantry?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
How should a CNC Cutting Machine Portable Gantry be maintained for reliable operation?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
How is a CNC Cutting Machine Portable Gantry price determined?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title CNC Cutting Machine Portable Gantry.
When is CNC control useful on a CNC Cutting Machine Portable Gantry?
Programmed motion supports repeatable positioning and cycle control. Its portable format takes the operation to the job or installed component. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
