Grinding Machines

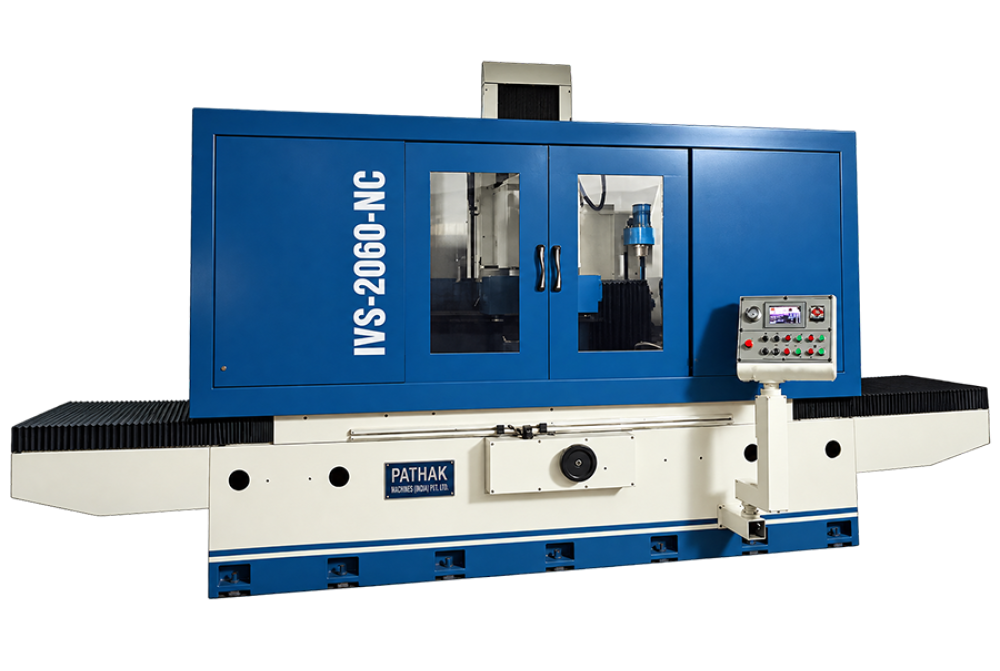

Cnc and Nc Surface Grinder
The Cnc and Nc Surface Grinder is designed for producing flat, smooth component surfaces. Typical users include tool rooms, die shops, repair facilities, and precision plants, where stable table movement and controlled wheel engagement is valuable. Programmed motion supports repeatable positioning and cycle control.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Cnc and Nc Surface Grinder
Machine Purpose
The Cnc and Nc Surface Grinder provides a dedicated method of producing flat, smooth component surfaces. Rather than acting as unrelated general equipment, it brings the working elements together around plates, dies, tooling, and machine parts.
How It Works
In operation, it passes supported work beneath a rotating abrasive wheel. The practical focus is stable table movement and controlled wheel engagement. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup. Programmed motion supports repeatable positioning and cycle control.
Industrial Applications
Likely users are found in tool rooms, die shops, repair facilities, and precision plants. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
Selection Considerations
Machines within grinding machines can differ in arrangement and capability. The required Cnc and Nc Surface Grinder should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Models | PPSC-20 | PPSC-24 | PPSC-30 |
| Working Surface of Table | 525X205 MM | 625X200 MM | 625x300 MM |
| Grinding Capacity | 500X200 MM | 600X200 MM | 600X300 MM |
| Longitudinal Traverse | 525 MM | 610 MM | 630 MM |
| Cross Traverse | 215 MM | 215 MM | 320 MM |
| Vertical Traverse | 250 MM | 250 MM | 330 MM |
| Grinding Wheel Dia and Width | 200X12 MM | 200X12 MM | 200X12 MM |
| Spindle Speed | 2800 RPM | 2800 RPM | 2800 RPM |
| Cross Feed Graduation | .05 MM | .05 MM | .05 MM |
| Vertical Feed Graduation | .02 MM | .02 MM | .02 MM |
| Floor Space Requires | 1150X900 MM | 1250X1200 MM | 1850X1350 MM |
| Weight Gross | 1250X kgs. Approx | 1350 kgs. Approx | 1750 kgs. Approx |
|
ELECTRICALS
|
-
|
-
|
-
|
| Electrical Motors For Grinding Wheel | 1.0 H.P 2800 | 1.0 H.P 2800 |
-
|
| Elecrtrical Motor For Auto Feed Models Only |
-
|
1.0 H.P 1440 |
-
|
FAQs
Frequently Asked Questions
Which operation is the Cnc and Nc Surface Grinder designed to perform?
The Cnc and Nc Surface Grinder is intended for producing flat, smooth component surfaces. It is arranged around plates, dies, tooling, and machine parts, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a Cnc and Nc Surface Grinder work?
The machine passes supported work beneath a rotating abrasive wheel. Its stable table movement and controlled wheel engagement supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a Cnc and Nc Surface Grinder?
It is primarily associated with plates, dies, tooling, and machine parts. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a Cnc and Nc Surface Grinder?
Typical users include tool rooms, die shops, repair facilities, and precision plants. In these settings, the Cnc and Nc Surface Grinder may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different Cnc and Nc Surface Grinder models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a Cnc and Nc Surface Grinder require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a Cnc and Nc Surface Grinder vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Cnc and Nc Surface Grinder.
When is CNC control useful on a Cnc and Nc Surface Grinder?
Programmed motion supports repeatable positioning and cycle control. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
