Sheet Metal Machines

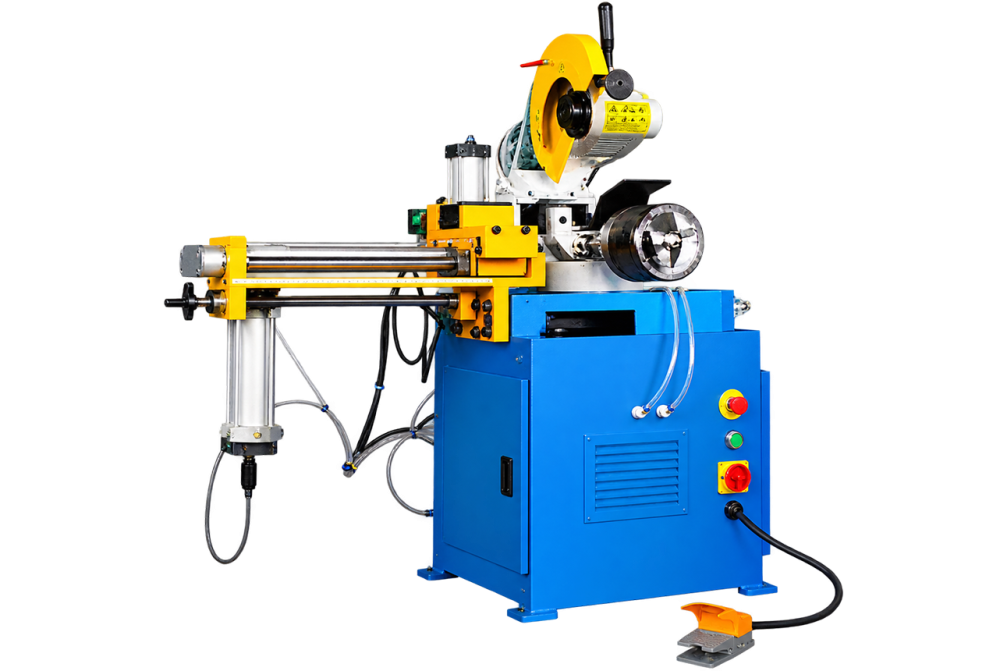

Circular Saw With Auto Feeder
Built around making fast straight cuts through stock, the Circular Saw With Auto Feeder provides a dedicated working arrangement. It feeds a rotating circular blade through clamped material, with rigid clamping close to the cutting zone. Power-assisted feed supports steadier tool advance.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Circular Saw With Auto Feeder
Machine Purpose
Used for making fast straight cuts through stock, the Circular Saw With Auto Feeder addresses a distinct stage of industrial work. It accommodates bars, tubes, profiles, or timber named in the title and keeps setup, tool engagement, and job handling centred on that task.
Industrial Applications
Natural settings include stock preparation, fabrication, and production sawing. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
How It Works
In operation, it feeds a rotating circular blade through clamped material. The practical focus is rigid clamping close to the cutting zone. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup. Power-assisted feed supports steadier tool advance.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Circular Saw With Auto Feeder.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | PCSAF |
|---|---|
| Main Motor | 2.4/3.0 KW |
| Principal Axis | RPM 60/120 |
| Feeding Effective Stroke | 430 mm |
| Applied Saw | 275/300/315 mm |
| Rotation Angle | 90/45 degree |
| Clamp Type | Double Bi Directional Type |
| Cooling Pump | 90 W |
| Using Compressed Air | 0.4-0.6 Mpa |
| Dimension | 1300x580x1350 mm |
| Machine Weight | 500 kg |
FAQs
Frequently Asked Questions
What does a Circular Saw With Auto Feeder do?
The Circular Saw With Auto Feeder is intended for making fast straight cuts through stock. It is arranged around bars, tubes, profiles, or timber named in the title, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Circular Saw With Auto Feeder complete its working cycle?
The machine feeds a rotating circular blade through clamped material. Its rigid clamping close to the cutting zone supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Circular Saw With Auto Feeder?
It is primarily associated with bars, tubes, profiles, or timber named in the title. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Circular Saw With Auto Feeder?
Typical users include stock preparation, fabrication, and production sawing. In these settings, the Circular Saw With Auto Feeder may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Circular Saw With Auto Feeder?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Circular Saw With Auto Feeder need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Circular Saw With Auto Feeder?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Circular Saw With Auto Feeder.
When is design arrangement useful on a Circular Saw With Auto Feeder?
Power-assisted feed supports steadier tool advance. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
