Chain Mortsing Machine
The Chain Mortsing Machine handles doors, frames, furniture, and joinery parts through a layout intended for cutting mortises for woodworking joints. Its guided formation of repeatable joint recesses suits furniture factories, door plants, and joinery shops.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview

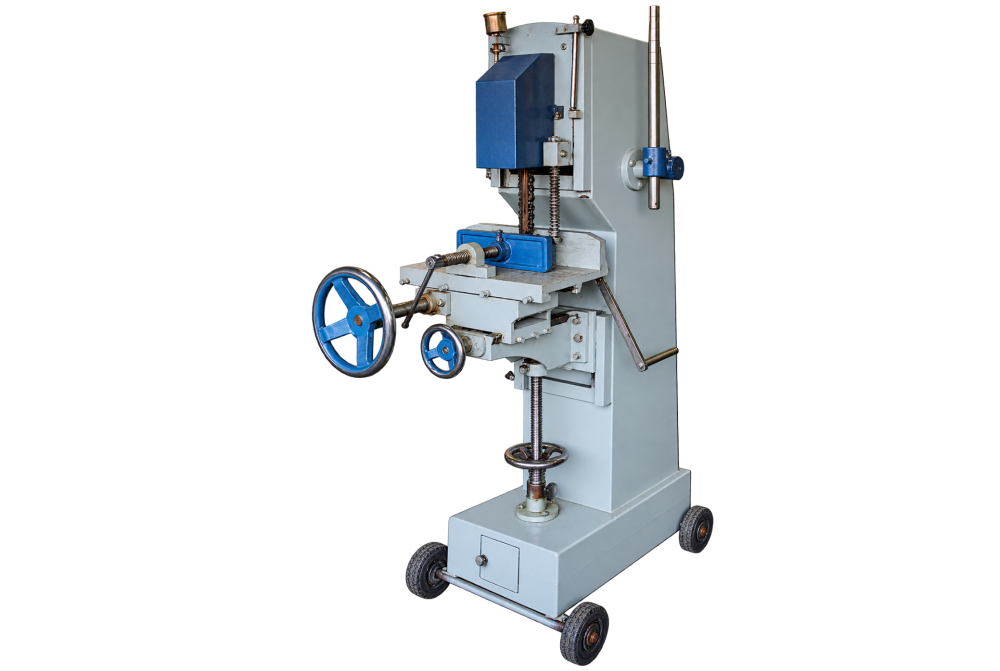

Chain Mortsing Machine
Machine Purpose
Used for cutting mortises for woodworking joints, the Chain Mortsing Machine addresses a distinct stage of industrial work. It accommodates doors, frames, furniture, and joinery parts and keeps setup, tool engagement, and job handling centred on that task.
Industrial Applications
Natural settings include furniture factories, door plants, and joinery shops. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
How It Works
In operation, it feeds a chisel, chain, or cutter into located timber. The practical focus is guided formation of repeatable joint recesses. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.
Selection Considerations
Machines within wood working machines can differ in arrangement and capability. The required Chain Mortsing Machine should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Height of Machine | 64'' |
| Width of Machine | 22'' |
| Length of Machine | 40'' |
| Length of Sliding Table | 21'' |
| Width of Sliding Table | 9.5'' |
| Mortising Capacity | 5'' |
| Weight | 325 kg |
| Allen Key | 5/ 32'',7/32'',3/16'',5/16'' |
| Belt | A27/28 |
| Spanners | 1/4*5/16'',7/16*9/16'',24*27 mm |
| Chain Set | 1/2''*36 |
| Chain Grinding Wheel | 6'' |
Short Videos

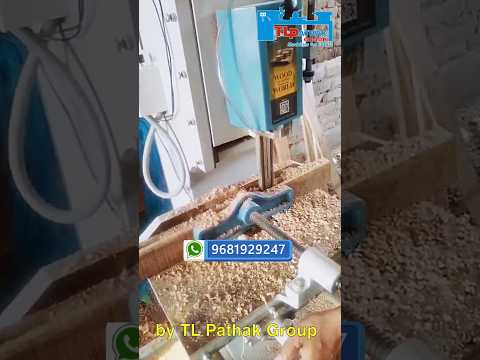

YouTube Short Videos
FAQs
Frequently Asked Questions
What is a Chain Mortsing Machine used for?
The Chain Mortsing Machine is intended for cutting mortises for woodworking joints. It is arranged around doors, frames, furniture, and joinery parts, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What is the working principle of a Chain Mortsing Machine?
The machine feeds a chisel, chain, or cutter into located timber. Its guided formation of repeatable joint recesses supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
Which components are normally processed on a Chain Mortsing Machine?
It is primarily associated with doors, frames, furniture, and joinery parts. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What type of workshop needs a Chain Mortsing Machine?
Typical users include furniture factories, door plants, and joinery shops. In these settings, the Chain Mortsing Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How do I choose the right Chain Mortsing Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
How should a Chain Mortsing Machine be maintained for reliable operation?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
How is a Chain Mortsing Machine price determined?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Chain Mortsing Machine.
