Chain Link Fencing Machine
An automatic PCLF-1 machine for forming 25–150 mm chain-link mesh from 2–4 mm wire at a listed 8–8.5 metres per minute.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview

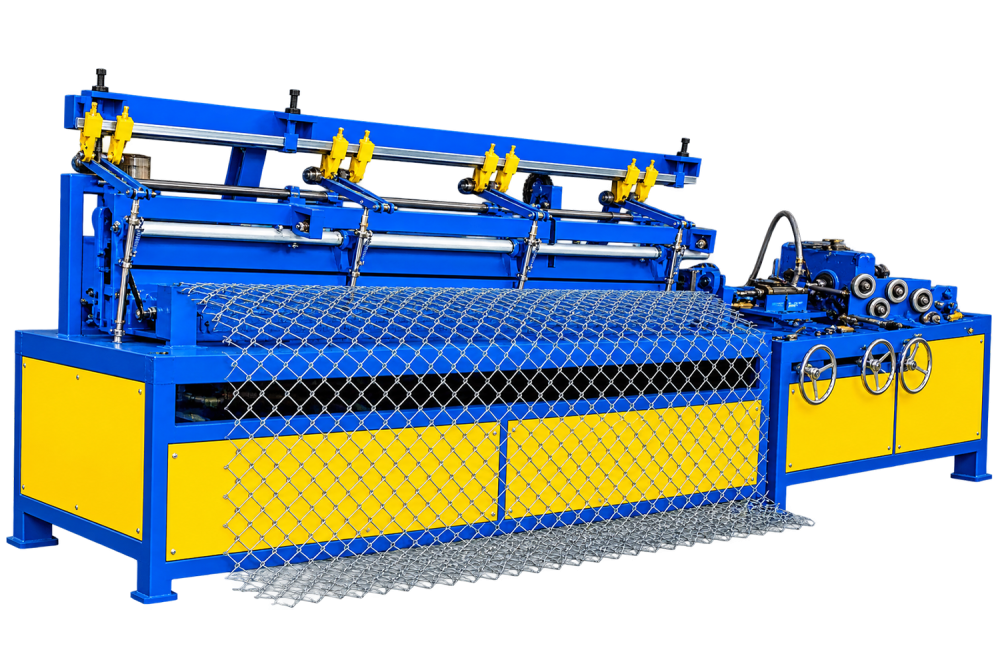

Chain Link Fencing Machine
The Chain Link Fencing Machine forms wire into interlocking helical strands and joins them continuously to create flexible diamond-pattern mesh at the required width.
Working Principle
Prepared wire is guided through forming tooling that creates a helix. Each new helix interlocks with the preceding strand, and the advancing mesh is controlled and collected for the planned roll.
Key Production Capability
PCLF-1 is listed for 25–150 mm mesh, 2–4 mm wire, width configured to requirement, 8–8.5 m/min production, a 3 HP motor, and overall dimensions of 1.7 × 1.4 × 1.4 m.
Industrial Applications
The machine supports boundary fencing, sports enclosures, industrial partitions, agricultural fencing, animal enclosures, and security mesh production.
Why Choose This Machine?
Automatic helix forming and interlocking can maintain a consistent diamond pattern while supporting continuous roll production in requested widths.
Selection and Operating Considerations
Confirm wire diameter, coating, tensile condition, mesh opening, roll width and length, edge finish, output, take-up method, and utilities.
Pathak Industries supplies this machine with application-based guidance. Confirm the selected model, wire specification, tooling, utilities, guarding, and required output against actual production samples before ordering.
Specifications
Technical Specifications
| Model | PCLF-1 |
| Mesh Capacity | 25 - 150 mm |
| Thickness | 2-4 mm |
| Width | As per requirement |
| Production Capacity | 8.0 to 8.5 m/min |
| Electric Motor | 3 HP |
| Net / Gross Weight | 550 / 900 kg |
| Overall Dimensions | 1.7 x 1.4 x 1.4 m |
| Shipping Volume | 3.50 m3 |
Applications
Applications

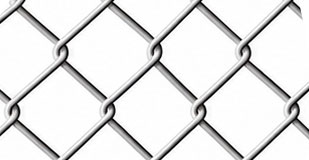

Chain Link Fencing Machine Application / Uses
FAQs
Frequently Asked Questions
What is the Chain Link Fencing Machine used for?
It produces diamond-pattern chain-link mesh for boundary, security, sports, agricultural, and partition fencing.
How does the Chain Link Fencing Machine work?
The machine forms wire into helices and interlocks each helix with the previous one to build a continuous mesh roll.
What is the available working range of the Chain Link Fencing Machine?
PCLF-1 lists 2–4 mm wire, 25–150 mm mesh, width to requirement, and production of 8–8.5 m/min.
Which industries use the Chain Link Fencing Machine?
Fencing manufacturers, building-product suppliers, agricultural equipment firms, and security-mesh producers use it.
What should be checked before selecting the Chain Link Fencing Machine?
Confirm wire coating and diameter, mesh opening, width, roll length, edge finish, take-up, output, and electrical supply.
How should the Chain Link Fencing Machine be maintained?
Inspect forming tooling, guides, cutters, drive parts, collection equipment, lubrication, guards, and alignment while removing wire debris.
