Scrap Bailing Machines
Car Baler Machine
For work involving the recyclable material identified by the title, the Car Baler Machine offers a process-specific solution. Its organised chamber-based compaction suits scrap yards, recycling plants, and recovery operations.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview

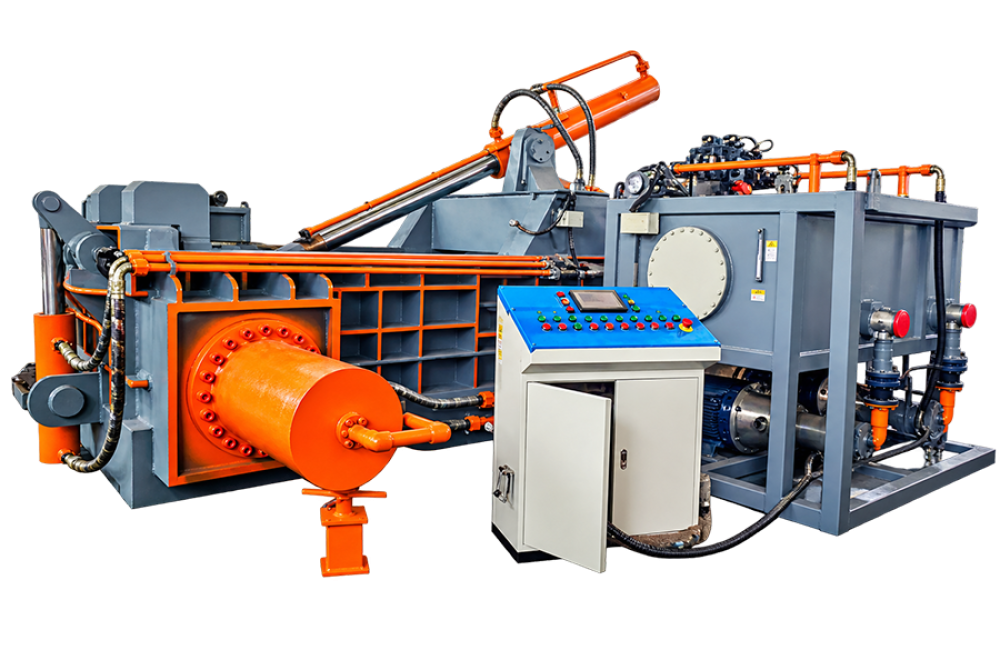

Car Baler Machine
Machine Purpose
The Car Baler Machine is a purpose-built unit for reducing loose recyclable material into compact bales. Its layout is organised around the recyclable material identified by the title, making it relevant when this operation must be completed in a controlled sequence.
How It Works
Its cycle is based on the way it compresses loaded feed inside a reinforced chamber. The design therefore prioritises organised chamber-based compaction; actual output still depends on the chosen model, tool, workpiece, and operating method.
Industrial Applications
The machine is applicable to scrap yards, recycling plants, and recovery operations. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Car Baler Machine.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | PCBM-400 |
|---|---|
| Bale out | Front Push Out |
| Chamber size | 3500 x 3000 x 1400 mm |
| Bale size | 600 x 600 x (600-1500) mm |
| Weight of bale | 500-1200 kg |
| Bale density | >= 1.8 |
| Cycle time | 150 sec |
| Weight of machine | 75 tons |
| Hydraulic oil cooling | Water cooling (50M2) |
| Power | 440 V / 3P / 50Hz |
| Operation | PLC and remote-control operation with electric operation station |
| Oil tank volume | 6000 Ltrs |
| Motor | Model 225M-4, speed 1470 r/min, power 45 KW, quantity 4 Nos. |
| Hydraulic pump | Model A4V250, displacement 250 ml/r, rated pressure 35 MPa, quantity 4 Nos. |
Applications
Applications
Car Baler Machine Application Image 1
Car Baler Machine Application Image 2
Car Baler Machine Application Image 3
Car Baler Machine Application Image 4
FAQs
Frequently Asked Questions
Why is a Car Baler Machine used in industrial work?
The Car Baler Machine is intended for reducing loose recyclable material into compact bales. It is arranged around the recyclable material identified by the title, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a Car Baler Machine?
The machine compresses loaded feed inside a reinforced chamber. Its organised chamber-based compaction supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a Car Baler Machine handle?
It is primarily associated with the recyclable material identified by the title. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a Car Baler Machine typically installed?
Typical users include scrap yards, recycling plants, and recovery operations. In these settings, the Car Baler Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a Car Baler Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a Car Baler Machine?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a Car Baler Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Car Baler Machine.
