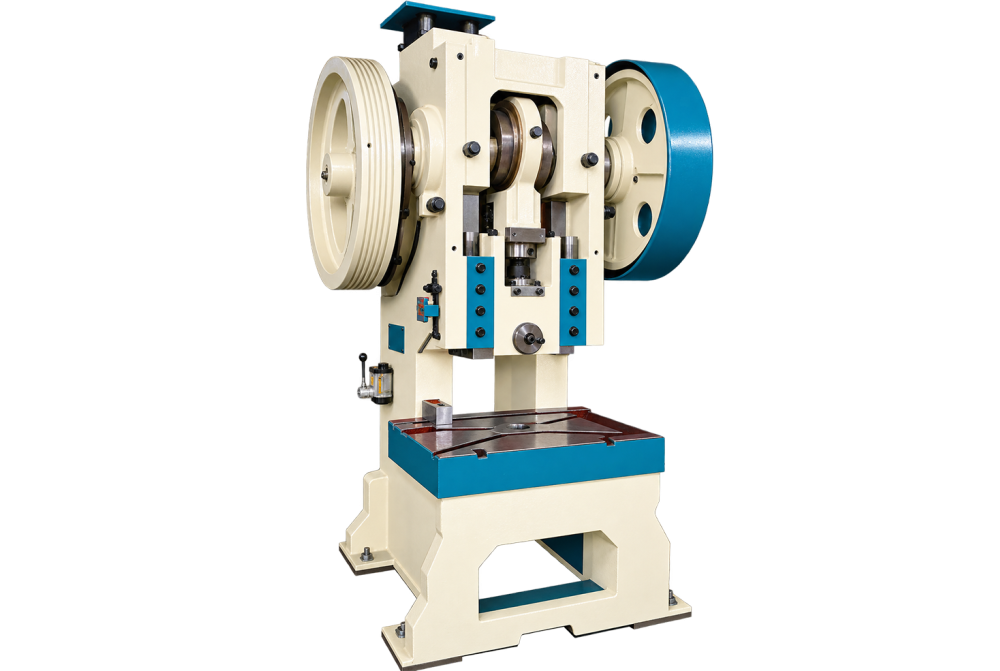

C Type Power Press Machine 75 Ton
The C Type Power Press Machine 75 Ton is designed for applying controlled force for forming, fitting, punching, or compaction. The operating method supports fabrication, assembly, maintenance, and production workshops and centres on rigid reaction support around the working zone.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
C Type Power Press Machine 75 Ton
Machine Purpose
For facilities needing applying controlled force for forming, fitting, punching, or compaction, the C Type Power Press Machine 75 Ton offers a process-specific workstation. Its arrangement supports components and materials named by the product title while keeping the important operating area accessible.
Industrial Applications
Likely users are found in fabrication, assembly, maintenance, and production workshops. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
How It Works
In operation, it advances a guided working member against supported material. The practical focus is rigid reaction support around the working zone. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.
Selection Considerations
Machines within press machines can differ in arrangement and capability. The required C Type Power Press Machine 75 Ton should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
|
Model |
PC1 10 Tons |
PC2 20 Tons |
PC3 30 Tons |
PC5 50 Tons |
PC7 |
PC10 100 Tons |
PC15 150 Tons |
|
| Dia of Crank Shaft | mm | 80 | 90 | 100 | 115 | 125 | 150 | 175 |
| Adjustability of Stroke | mm | 50 | 76 | 76 | 100 | 100 | 125 | 150 |
| Punch Bore in Ram | mm | 25 | 31 | 31 | 38 | 38 | 45 | 50 |
| Width of Bed | mm | 300 | 375 | 440 | 525 | 600 | 650 | 700 |
| Length of Bed | mm | 450 | 550 | 615 | 700 | 800 | 900 | 1000 |
| Gear Dia | mm | 450 | 525 | 600 | 650 | 890 | 960 | 1060 |
| Fly Wheel Dia | mm | 525 | 650 | 700 | 800 | 900 | 1000 | 1125 |
| Gap (Bed to Bottom ) | mm | 250 | 325 | 350 | 375 | 400 | 450 | 500 |
| Stroke per Minute | mm | 60 | 55 | 50 | 45 | 40 | 40 | 35 |
| H.P. Required (1440) | mm | 2 | 3 | 3 | 5 | 7.5 | 10 | 15 |
| Bore in Bed | mm | 110 | 125 | 140 | 160 | 190 | 220 | 250 |
| Weight in kgs (Approx) | mm | 900 | 1550 | 2050 | 2700 | 4000 | 5500 | 7800 |
Videos
Product Videos
Short Videos
YouTube Short Videos
FAQs
Frequently Asked Questions
Why is a C Type Power Press Machine 75 Ton used in industrial work?
The C Type Power Press Machine 75 Ton is intended for applying controlled force for forming, fitting, punching, or compaction. It is arranged around components and materials named by the product title, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a C Type Power Press Machine 75 Ton?
The machine advances a guided working member against supported material. Its rigid reaction support around the working zone supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a C Type Power Press Machine 75 Ton handle?
It is primarily associated with components and materials named by the product title. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a C Type Power Press Machine 75 Ton typically installed?
Typical users include fabrication, assembly, maintenance, and production workshops. In these settings, the C Type Power Press Machine 75 Ton may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a C Type Power Press Machine 75 Ton?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a C Type Power Press Machine 75 Ton?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a C Type Power Press Machine 75 Ton?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title C Type Power Press Machine 75 Ton.
