C Type Power Press Machine 50 Ton
Sheet Metal Machines

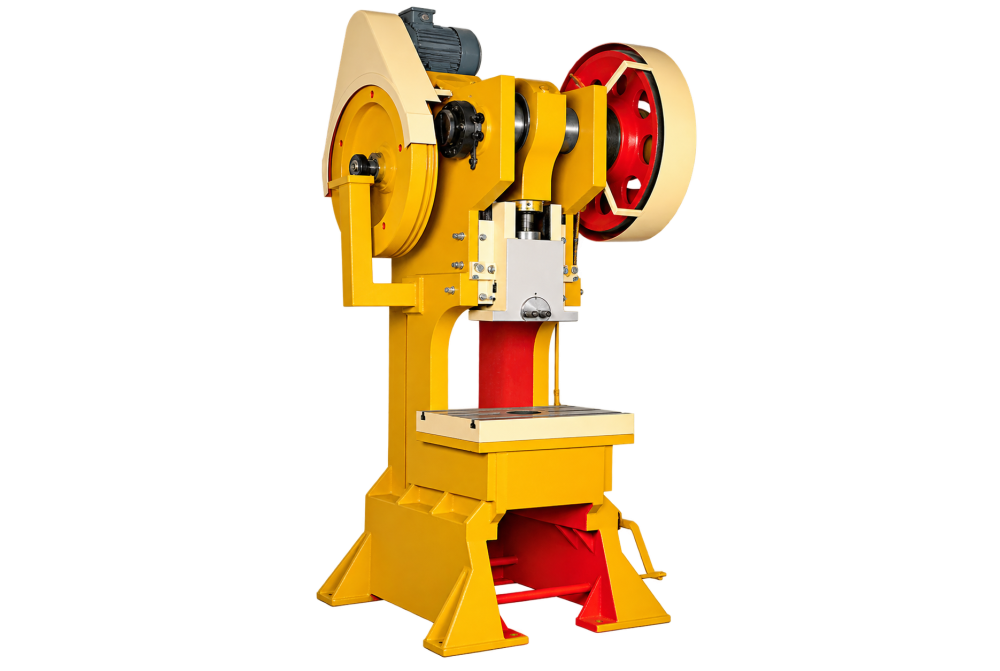

C Type Power Press Machine 50 Ton

The C Type Power Press Machine 50 Ton handles components and materials named by the product title through a layout intended for applying controlled force for forming, fitting, punching, or compaction. Typical users include fabrication, assembly, maintenance, and production workshops, where rigid reaction support around the working zone is valuable.

Enquire Now Technical Specifications

Order By Phone

Shipping Information Usually dispatched With In business days

+91-91240-09247 +91-88959-29247
Overview

Product Overview

C Type Power Press Machine 50 Ton

Machine Purpose

The C Type Power Press Machine 50 Ton provides a dedicated method of applying controlled force for forming, fitting, punching, or compaction. Rather than acting as unrelated general equipment, it brings the working elements together around components and materials named by the product title.

How It Works

In operation, it advances a guided working member against supported material. The practical focus is rigid reaction support around the working zone. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.

Industrial Applications

Likely users are found in fabrication, assembly, maintenance, and production workshops. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.

Selection Considerations

Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen C Type Power Press Machine 50 Ton.

Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.

Specifications

Technical Specifications

CAPACITY IN TONS
_
 5 TONS 10 TONS 20 TONS 30 TONS 40 TONS 50 TONS 60 TONS 80 TONS 100 TONS 150 TONS 200 TONS
Crankshaft Diameter MM 70 88 115 130 135 140 150 160 170 190 250
Adjustment of Stroke MM 38 50 63 76 76 89 100 115 130 150 150
Adjustment of Ram MM 25 25 25 25 25 25 25 25 25 25 25
25Punch Hole in Ram MM 25 25 32 38 38 45 45 50 50 80 80
Hole in Bed MM 63 76 82 89 95 101 115 130 150 200 225
Bed Size (Length x Width) MM 355x178 432x228 534x305 585x355 635x355 685x406 712x457 738x508 891x612 1041x737 1100x813
Bed Thickness MM 50 58 63 70 76 83 88 95 114 127 137
Dist.between bed to Ram MM 177 204 250 292 320 350 380 380 406 457 482
Flywheel Dia. MM 406 458 482 533 584 660 762 812 863 965 1016
Stroke per minute MM 80 70 45 40 35 35 30 30 30 25 25
H.P Required MM _ _ _ _ _ _ _ _ _ _ _
For Geared (1440 RPM) HP 1 1.5 2 3 4 5 7.5 10 10 12.5 15
For Ungeared (960 RPM) HP 1 2 3 5 _ _ _ _ _ _ _
Floor to top of Bed MM 700 830 830 880 1000 1000 1000 1000 1000 1000 1000
Allover Size LR X FB X H MM 700x600x1600 800x800x1900 1000x1000x2100 1000x1100x2200 1100x1200x2400 1200x1300x2500 1300x1350x2650 1500x1500x2750 1750x1750x2900 2050x2000x3300 2200x2150x3500
Weight Approximate KG. 350 600 1100 14000 1900 2500 2700 3200 4700 6200 7700
Short Videos

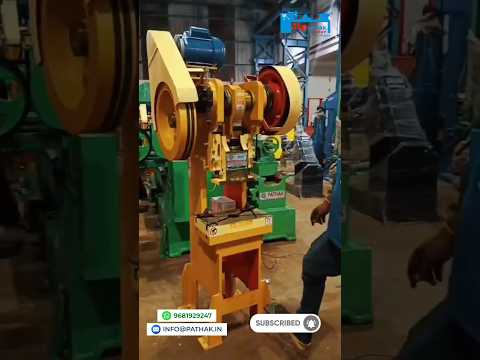

YouTube Short Videos

FAQs

Frequently Asked Questions

What does a C Type Power Press Machine 50 Ton do?
The C Type Power Press Machine 50 Ton is intended for applying controlled force for forming, fitting, punching, or compaction. It is arranged around components and materials named by the product title, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the C Type Power Press Machine 50 Ton complete its working cycle?
The machine advances a guided working member against supported material. Its rigid reaction support around the working zone supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a C Type Power Press Machine 50 Ton?
It is primarily associated with components and materials named by the product title. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a C Type Power Press Machine 50 Ton?
Typical users include fabrication, assembly, maintenance, and production workshops. In these settings, the C Type Power Press Machine 50 Ton may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a C Type Power Press Machine 50 Ton?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a C Type Power Press Machine 50 Ton need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a C Type Power Press Machine 50 Ton?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title C Type Power Press Machine 50 Ton.
