C Type Power Press Machine 5 Ton
Sheet Metal Machines

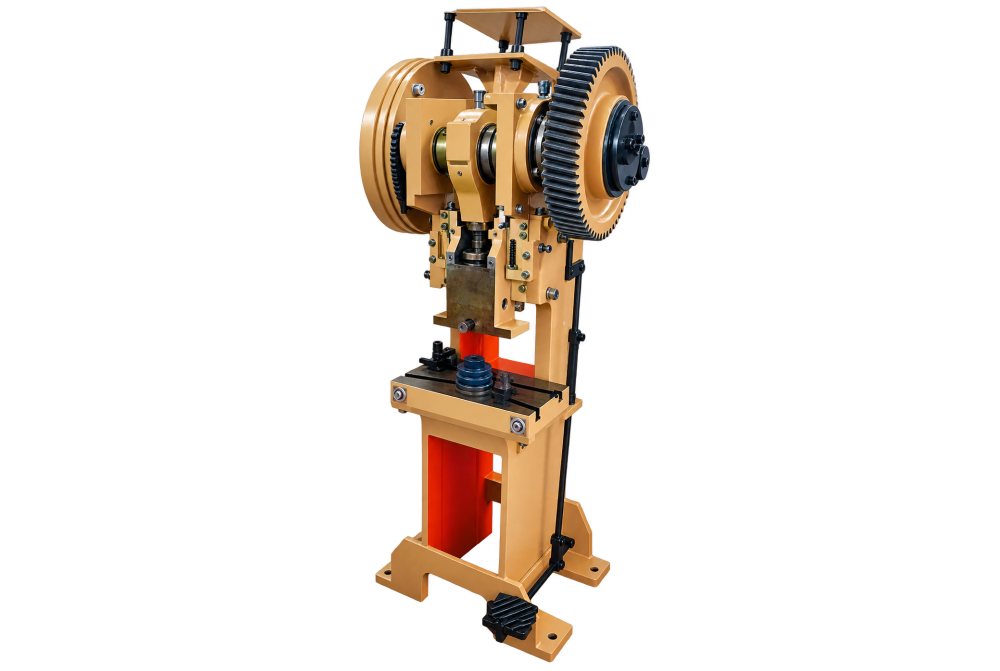

C Type Power Press Machine 5 Ton

The C Type Power Press Machine 5 Ton is designed for applying controlled force for forming, fitting, punching, or compaction. Its rigid reaction support around the working zone suits fabrication, assembly, maintenance, and production workshops.

Enquire Now Technical Specifications

Order By Phone

Shipping Information Usually dispatched With In business days

+91-91240-09247 +91-88959-29247
Overview

Product Overview

C Type Power Press Machine 5 Ton

Machine Purpose

Used for applying controlled force for forming, fitting, punching, or compaction, the C Type Power Press Machine 5 Ton addresses a distinct stage of industrial work. It accommodates components and materials named by the product title and keeps setup, tool engagement, and job handling centred on that task.

Industrial Applications

Natural settings include fabrication, assembly, maintenance, and production workshops. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.

How It Works

Its cycle is based on the way it advances a guided working member against supported material. The design therefore prioritises rigid reaction support around the working zone; actual output still depends on the chosen model, tool, workpiece, and operating method.

Selection Considerations

Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen C Type Power Press Machine 5 Ton.

Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.

Specifications

Technical Specifications

CAPACITY IN TONS
_
 5 TONS 10 TONS 20 TONS 30 TONS 40 TONS 50 TONS 60 TONS 80 TONS 100 TONS 150 TONS 200 TONS
Crankshaft Diameter MM 70 88 115 130 135 140 150 160 170 190 250
Adjustment of Stroke MM 38 50 63 76 76 89 100 115 130 150 150
Adjustment of Ram MM 25 25 25 25 25 25 25 25 25 25 25
25Punch Hole in Ram MM 25 25 32 38 38 45 45 50 50 80 80
Hole in Bed MM 63 76 82 89 95 101 115 130 150 200 225
Bed Size (Length x Width) MM 355x178 432x228 534x305 585x355 635x355 685x406 712x457 738x508 891x612 1041x737 1100x813
Bed Thickness MM 50 58 63 70 76 83 88 95 114 127 137
Dist.between bed to Ram MM 177 204 250 292 320 350 380 380 406 457 482
Flywheel Dia. MM 406 458 482 533 584 660 762 812 863 965 1016
Stroke per minute MM 80 70 45 40 35 35 30 30 30 25 25
H.P Required MM _ _ _ _ _ _ _ _ _ _ _
For Geared (1440 RPM) HP 1 1.5 2 3 4 5 7.5 10 10 12.5 15
For Ungeared (960 RPM) HP 1 2 3 5 _ _ _ _ _ _ _
Floor to top of Bed MM 700 830 830 880 1000 1000 1000 1000 1000 1000 1000
Allover Size LR X FB X H MM 700x600x1600 800x800x1900 1000x1000x2100 1000x1100x2200 1100x1200x2400 1200x1300x2500 1300x1350x2650 1500x1500x2750 1750x1750x2900 2050x2000x3300 2200x2150x3500
Weight Approximate KG. 350 600 1100 14000 1900 2500 2700 3200 4700 6200 7700
FAQs

Frequently Asked Questions

Which operation is the C Type Power Press Machine 5 Ton designed to perform?
The C Type Power Press Machine 5 Ton is intended for applying controlled force for forming, fitting, punching, or compaction. It is arranged around components and materials named by the product title, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does a C Type Power Press Machine 5 Ton work?
The machine advances a guided working member against supported material. Its rigid reaction support around the working zone supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What type of work is suitable for a C Type Power Press Machine 5 Ton?
It is primarily associated with components and materials named by the product title. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What are the common applications of a C Type Power Press Machine 5 Ton?
Typical users include fabrication, assembly, maintenance, and production workshops. In these settings, the C Type Power Press Machine 5 Ton may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How can a buyer compare different C Type Power Press Machine 5 Ton models?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What routine maintenance does a C Type Power Press Machine 5 Ton require?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Why can the cost of a C Type Power Press Machine 5 Ton vary between models?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title C Type Power Press Machine 5 Ton.
