Press Machines

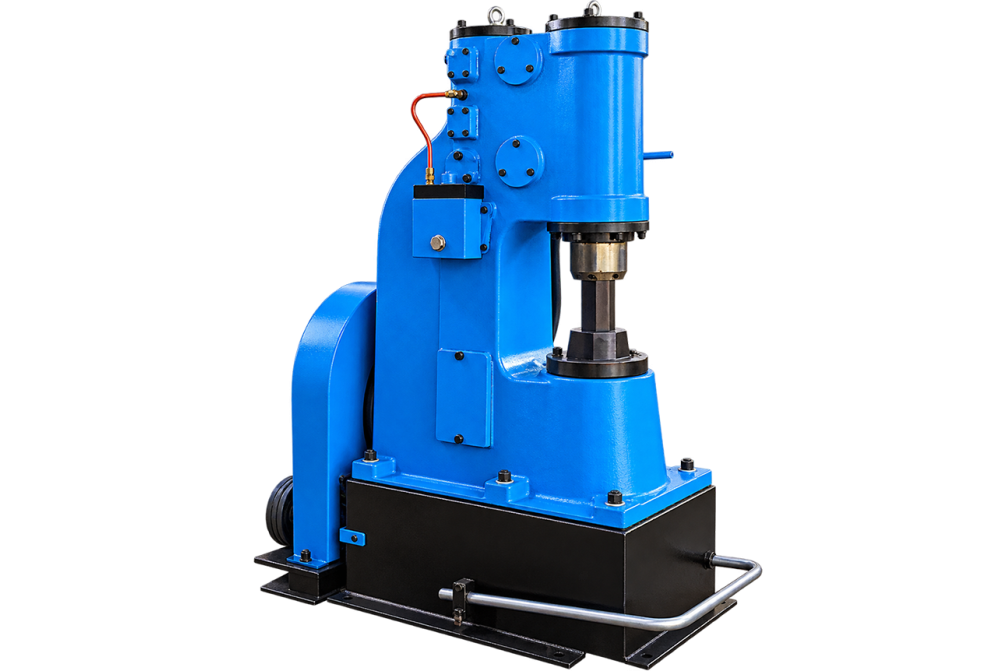

Blacksmith Power Hammer 25 KG
The Blacksmith Power Hammer 25 KG is designed for forging and shaping heated metal. It delivers repeated powered blows between upper and lower tooling, with repetitive impact that reduces manual hammering.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Blacksmith Power Hammer 25 KG
Machine Purpose
The Blacksmith Power Hammer 25 KG is a purpose-built unit for forging and shaping heated metal. Its layout is organised around bars, billets, tools, and forged components, making it relevant when this operation must be completed in a controlled sequence.
How It Works
Its cycle is based on the way it delivers repeated powered blows between upper and lower tooling. The design therefore prioritises repetitive impact that reduces manual hammering; actual output still depends on the chosen model, tool, workpiece, and operating method.
Industrial Applications
Likely users are found in forge shops, tool production, and blacksmith workshops. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
Selection Considerations
Machines within press machines can differ in arrangement and capability. The required Blacksmith Power Hammer 25 KG should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODEL | PAH-15L | PAH-25L | PAH-40L | PAH-55L | PAH-75L | PAH-110L |
| Weight of falling parts(kg) | 15 | 25 | 40 | 55 | 75 | 110 |
| Hitting energy (kj) | 0.16 | 0.27 | 0.53 | 0.7 | 1 | 1.98 |
| Hitting frequency (min-1) | 300 | 250 | 245 | 230 | 210 | 180 |
| Height of working area (mm) | 160 | 240 | 245 | 270 | 297 | 355 |
| D-Depth of throat(mm) | 170 | 235 | 270 | 300 | 330 | 400 |
| Working Piece | 30 x 30 (Square) | 40 x 40 (Square) | 52 x 52 (Square) | 60x60 (Square) | 65x65 (Square) | 110x110 (Square) |
| 035 (Round mm) | 048 (Round mm | 068 (Round mm | 075 (Round mm | 085 (Round mm | 0120 (Round mm | |
| Power (kw) | 2.2 | 3 | 4 | 5.5 | 7.5 | 15 |
| Weight (Include Base) | 540 | 1100 | 1390 | 1700 | 2640 | 3300 |
Accessories
Standard Accessories / Machine Parts
Crown Dies
Drawing Dies
Drawing Flat Dies
Fullering Dies
Fullering Falt Fies
Heavy Fullering Dies
Videos
Product Videos
Short Videos
YouTube Short Videos
Applications
Applications
Agricultural Tools
Tractor Hook Rings
Sledge Hammers
Chisel
Knives Swords
Axe Hand Tools
FAQs
Frequently Asked Questions
What does a Blacksmith Power Hammer 25 KG do?
The Blacksmith Power Hammer 25 KG is intended for forging and shaping heated metal. It is arranged around bars, billets, tools, and forged components, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Blacksmith Power Hammer 25 KG complete its working cycle?
The machine delivers repeated powered blows between upper and lower tooling. Its repetitive impact that reduces manual hammering supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Blacksmith Power Hammer 25 KG?
It is primarily associated with bars, billets, tools, and forged components. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Blacksmith Power Hammer 25 KG?
Typical users include forge shops, tool production, and blacksmith workshops. In these settings, the Blacksmith Power Hammer 25 KG may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Blacksmith Power Hammer 25 KG?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Blacksmith Power Hammer 25 KG need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Blacksmith Power Hammer 25 KG?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Blacksmith Power Hammer 25 KG.
