Drilling Machines

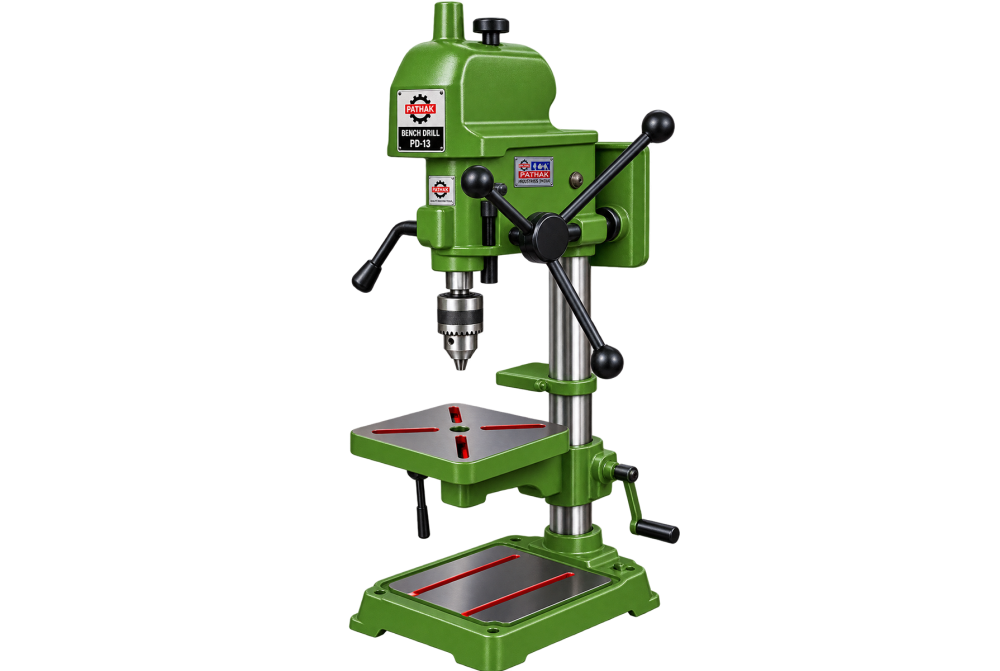

Bench Drill Machine PM 13
The Bench Drill Machine PM 13 handles metal parts, plates, castings, and fabricated assemblies through a layout intended for creating positioned holes and related hole-finishing work. Its stable spindle guidance and practical feed control suits engineering workshops, maintenance departments, and production floors.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Bench Drill Machine PM 13
Machine Purpose
Used for creating positioned holes and related hole-finishing work, the Bench Drill Machine PM 13 addresses a distinct stage of industrial work. It accommodates metal parts, plates, castings, and fabricated assemblies and keeps setup, tool engagement, and job handling centred on that task.
Industrial Applications
The machine is applicable to engineering workshops, maintenance departments, and production floors. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
How It Works
A typical cycle begins with locating the job correctly, after which the machine feeds a rotating tool axially into the supported component. Its stable spindle guidance and practical feed control supports repeat work without replacing the need for trained operation.
Selection Considerations
Machines within drilling machines can differ in arrangement and capability. The required Bench Drill Machine PM 13 should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| ARTICULARS | PD-12 |
| Drilling capacity in Steel | 13mm |
| Spindle Taper | JT-6/MT-2 |
| Spindle Travel | 87 |
| Pillar Diameter | 48 |
| Pillar Length | 625 |
| Distance btw center of spindle & pillar front | 150 |
| Max Distance btw Spindle & Table | 250 |
| Max Distance btw Spindle & Base | 363 |
| Table working space | 200 |
| Base Working Surface (Machined) | 175x175 |
| Overall size of base | 320x320 |
| No of Spindle Speeds | 4 |
| Range of Spindle Speeds (r p m) | 640-1040-1640-2540 |
| V Belt | A 36 |
| Motor | 1/2 H.P |
| Net Weight | 45Kg |
| Space Occupied (LxBxH) | 390x300x815 |
Accessories
Standard Accessories / Machine Parts
Drilling Machine With Magnetic Stand
Short Videos
YouTube Short Videos
Applications
Applications
Tool Rooms
Workshops
Fasteners Industries
Fabrication Workshops
Precision drilling
Fabrication units
Drilling metal
Drilling wood
Drilling plastic
FAQs
Frequently Asked Questions
What does a Bench Drill Machine PM 13 do?
The Bench Drill Machine PM 13 is intended for creating positioned holes and related hole-finishing work. It is arranged around metal parts, plates, castings, and fabricated assemblies, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Bench Drill Machine PM 13 complete its working cycle?
The machine feeds a rotating tool axially into the supported component. Its stable spindle guidance and practical feed control supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Bench Drill Machine PM 13?
It is primarily associated with metal parts, plates, castings, and fabricated assemblies. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Bench Drill Machine PM 13?
Typical users include engineering workshops, maintenance departments, and production floors. In these settings, the Bench Drill Machine PM 13 may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Bench Drill Machine PM 13?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Bench Drill Machine PM 13 need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Bench Drill Machine PM 13?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Bench Drill Machine PM 13.
