Drilling Machines

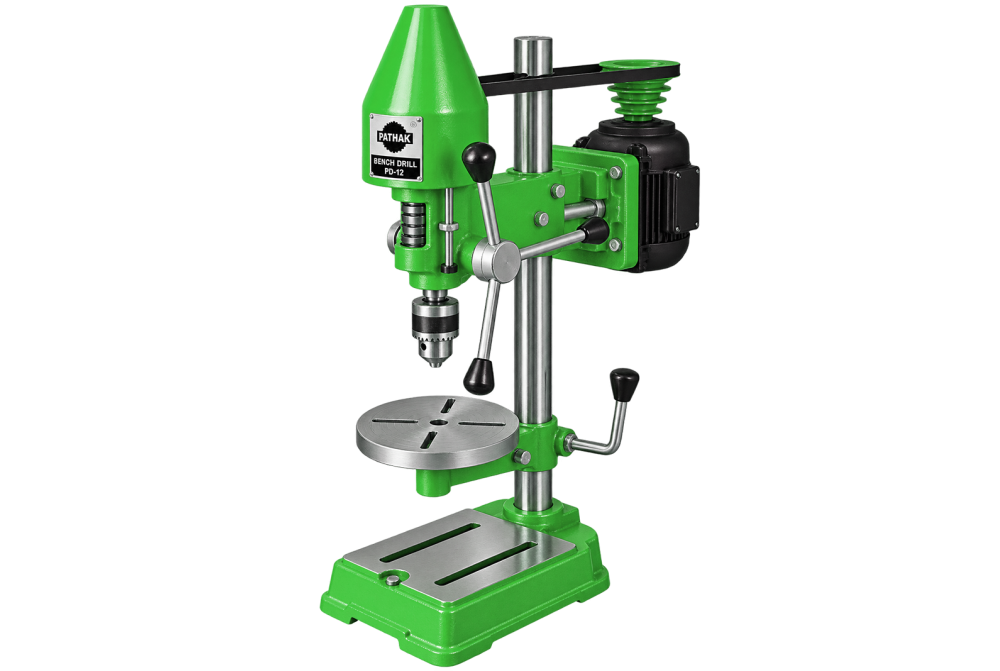

Bench Drill Machine PM 12
The Bench Drill Machine PM 12 is designed for creating positioned holes and related hole-finishing work. The operating method supports engineering workshops, maintenance departments, and production floors and centres on stable spindle guidance and practical feed control.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Bench Drill Machine PM 12
Machine Purpose
For facilities needing creating positioned holes and related hole-finishing work, the Bench Drill Machine PM 12 offers a process-specific workstation. Its arrangement supports metal parts, plates, castings, and fabricated assemblies while keeping the important operating area accessible.
Industrial Applications
Likely users are found in engineering workshops, maintenance departments, and production floors. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
How It Works
Its cycle is based on the way it feeds a rotating tool axially into the supported component. The design therefore prioritises stable spindle guidance and practical feed control; actual output still depends on the chosen model, tool, workpiece, and operating method.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Bench Drill Machine PM 12.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| PARTICULARS | PD-12 |
| Drilling capacity in Steel | 13mm |
| Spindle Taper | JT-6/MT-2 |
| Spindle Travel | 87 |
| Pillar Diameter | 48 |
| Pillar Length | 625 |
| Distance btw center of spindle & pillar front | 150 |
| Max Distance btw Spindle & Table | 250 |
| Max Distance btw Spindle & Base | 363 |
| Table working space | 200 |
| Base Working Surface (Machined) | 175x175 |
| Overall size of base | 320x320 |
| No of Spindle Speeds | 4 |
| Range of Spindle Speeds (r p m) | 640-1040-1640-2540 |
| V Belt | A 36 |
| Motor | 1/2 H.P |
| Net Weight | 45Kg |
| Space Occupied (LxBxH) | 390x300x815 |
Accessories
Standard Accessories / Machine Parts
Drilling Machine With Magnetic Stand
Applications
Applications
Tool Rooms
Workshops
Fabrication Workshops
Precision drilling
Fabrication units
Drilling metal
Drilling wood
Drilling plastic
FAQs
Frequently Asked Questions
Why is a Bench Drill Machine PM 12 used in industrial work?
The Bench Drill Machine PM 12 is intended for creating positioned holes and related hole-finishing work. It is arranged around metal parts, plates, castings, and fabricated assemblies, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a Bench Drill Machine PM 12?
The machine feeds a rotating tool axially into the supported component. Its stable spindle guidance and practical feed control supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a Bench Drill Machine PM 12 handle?
It is primarily associated with metal parts, plates, castings, and fabricated assemblies. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a Bench Drill Machine PM 12 typically installed?
Typical users include engineering workshops, maintenance departments, and production floors. In these settings, the Bench Drill Machine PM 12 may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a Bench Drill Machine PM 12?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a Bench Drill Machine PM 12?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a Bench Drill Machine PM 12?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Bench Drill Machine PM 12.
