Wire Industry Machines
Automatic Wire Nail Making Machine
A seven-model automatic nail-making range producing 1/2–8 inch nails from 20–2 SWG wire at 90–550 nails per minute.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview

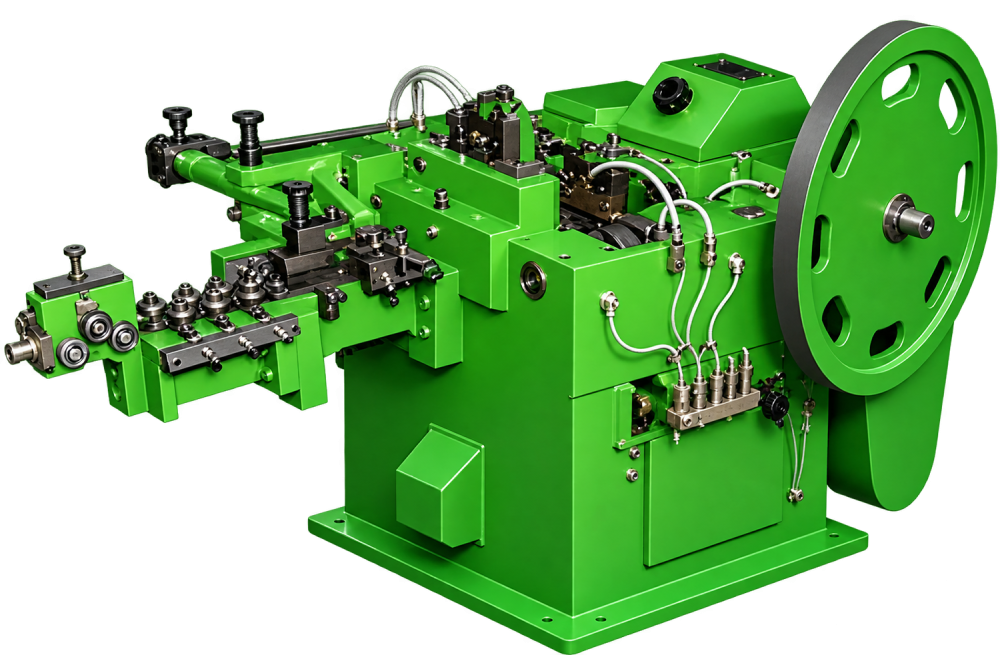

Automatic Wire Nail Making Machine
The Automatic Wire Nail Making Machine converts prepared wire into finished nail blanks through automatic feeding, gripping, head forming, length control, cutting, and point formation.
Working Principle
Straight wire feeds through the die to a length stop. The machine grips the wire, forms the head, cuts the nail to length, and shapes the point before discharging the piece for subsequent cleaning or polishing.
Key Production Capability
PWN-1A through PWN-8 cover 1/2–8 inch nails, 20–2 SWG wire, published rates from 90 to 550 nails per minute, motors from 1 to 10 HP, and machine weights from 225 to 2400 kg.
Industrial Applications
The range supports common nails and compatible wire-nail products for construction, furniture, packaging, woodworking, general hardware, and industrial supply.
Why Choose This Machine?
Multiple model sizes let manufacturers match nail length and wire gauge to output, while automatic forming supports repeat head, point, and length production.
Selection and Operating Considerations
Define nail drawing, material, wire gauge, length range, head and point shape, required rate, polishing process, collection, power, and inspection.
Pathak Industries supplies this machine with application-based guidance. Confirm the selected model, wire specification, tooling, utilities, guarding, and required output against actual production samples before ordering.
Specifications
Technical Specifications
|
MODEL
|
CAPACITY
|
WIRE
|
NAIL
PER MINUTE |
H.P. REQ.
& R.P.M |
NET WEIGHT OF MACHINE |
| PWN-1A | 1 1/4'' - 1'' | 20-17swg | 500-550 | 1 x 1440 | 225 KG |
| PWN-1 | 1/2''- 1 1/2'' | 18-14swg | 400-450 | 1 1/2 x 1440 | 350 KG |
| PWN-2 | 1/2'' - 2'' | 16-12swg | 300-350 | 2 x 1440 | 500 KG |
| PWN-3 | 3/4'' - 3'' | 14-9swg | 225-275 | 3 x 1440 | 850 KG |
| PWN-4 | 1'' - 4'' | 12-8swg | 175-210 | 5 x 1440 | 1200 KG |
| PWN-5 | 2'' - 6'' | 8-4swg | 100-125 | 7 1/2 x 960 | 1800 KG |
| PWN-8 | 2'' - 8'' | 8-2swg | 90-100 | 10 x 960 | 2400 KG |
FAQs
Frequently Asked Questions
What is the Automatic Wire Nail Making Machine used for?
It automatically forms nails from wire for construction, furniture, woodworking, packaging, and hardware applications.
How does the Automatic Wire Nail Making Machine work?
Wire feeds to length, is gripped and headed, then cut and pointed before the finished nail blank is discharged.
What is the available working range of the Automatic Wire Nail Making Machine?
Seven models cover 1/2–8 inch nails, 20–2 SWG wire, and listed output from 90 to 550 nails per minute.
Which industries use the Automatic Wire Nail Making Machine?
Nail manufacturers, construction-hardware suppliers, furniture-fastener plants, and wire-product units use these machines.
What should be checked before selecting the Automatic Wire Nail Making Machine?
Confirm nail length, diameter, material, head, point, output, polishing, electrical supply, floor space, and tooling.
How should the Automatic Wire Nail Making Machine be maintained?
Inspect dies, heading tools, cutters, feed bearings, length stop, drive, lubrication, guards, and fasteners, replacing worn tooling promptly.
