Automatic TMT or Ribbed Wire Straightening and Cutting Machine
An automatic heavy-duty straightening and cutting range for 6–13 mm TMT or ribbed wire, with semi-automatic and fixed-length production options.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview

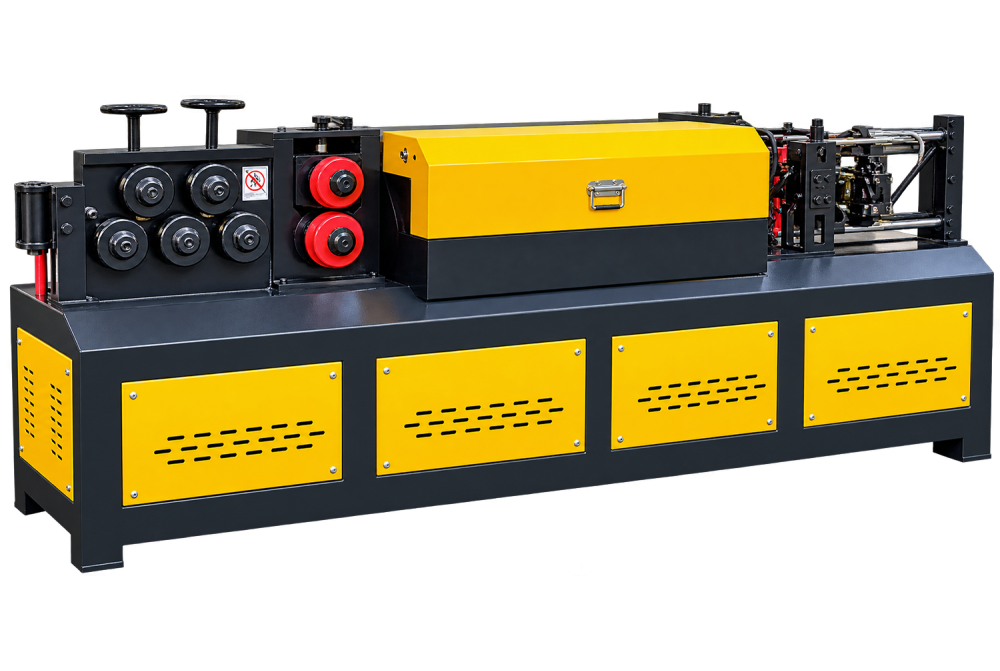

Automatic TMT or Ribbed Wire Straightening and Cutting Machine
The Automatic TMT or Ribbed Wire Straightening and Cutting Machine is built for de-coiling, straightening, measuring, and cutting reinforced-profile wire or bar into repeat production lengths.
Working Principle
Powered feed draws ribbed material through the straightening section while the measuring arrangement controls length. The cutter separates the straightened bar and the cycle advances the next piece.
Key Production Capability
PWWS TMT-010 is listed for 6–10 mm wire with 70 m/min feeding, while PWS TMT-014 covers 8–13 mm wire with 90 m/min feeding. Both list semi-automatic any-length work and automatic 20- and 40-foot lengths.
Industrial Applications
The machines support reinforcement preparation, welded mesh feed stock, construction-product plants, precast operations, fencing and ribbed-wire component production.
Why Choose This Machine?
Integrated high-speed feeding, straightening, and cutting reduces repeated manual measurement and can deliver organised batches of long ribbed material.
Selection and Operating Considerations
Review bar profile, diameter, coil condition, strength, required straightness, 20- or 40-foot handling, output, motor supply, collection beds, lifting, and floor space.
Pathak Industries supplies this machine with application-based guidance. Confirm the selected model, wire specification, tooling, utilities, guarding, and required output against actual production samples before ordering.
Specifications
Technical Specifications
| MODEL | PWWS TMT - 010 | PWS TMT - 014 |
| In Thickness of Wire mm | 6 to 10mm | 8 to 13mm |
| In Length of Wire to be cut automatically mm |
Semi Any Length and Automatically 20 & 40 feet | Semi Any Length and Automatically 20 & 40 feet |
| Feeding Capacity Per Min. | 70 meter | 90 meter |
| Power of Motor H.P | 2+10HP | 2+15HP |
| Required R.P.M | 1440 | 1440 |
| Approx Weight in kg. Net / Gross | Semi- 1100 / 1300 Auto - 2200 / 2550 |
Semi- 1500 / 1800 Auto - 2600 / 3000 |
Applications
Applications

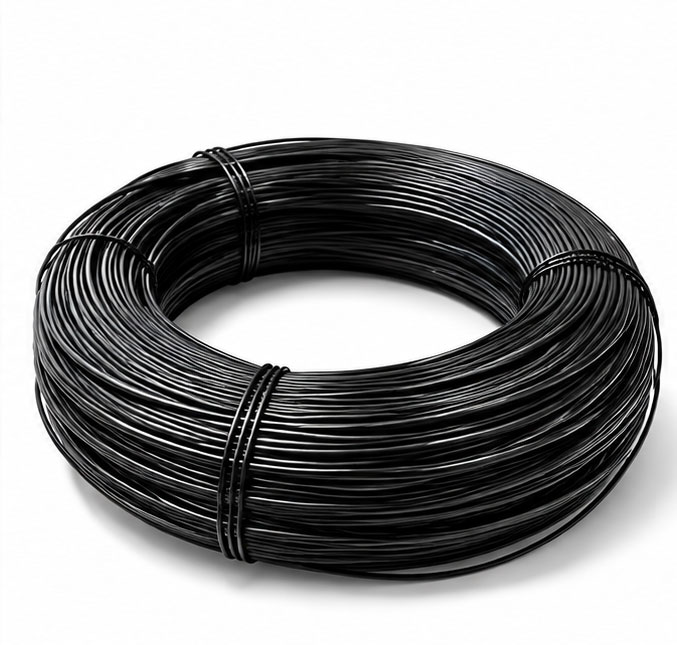

Black Wire

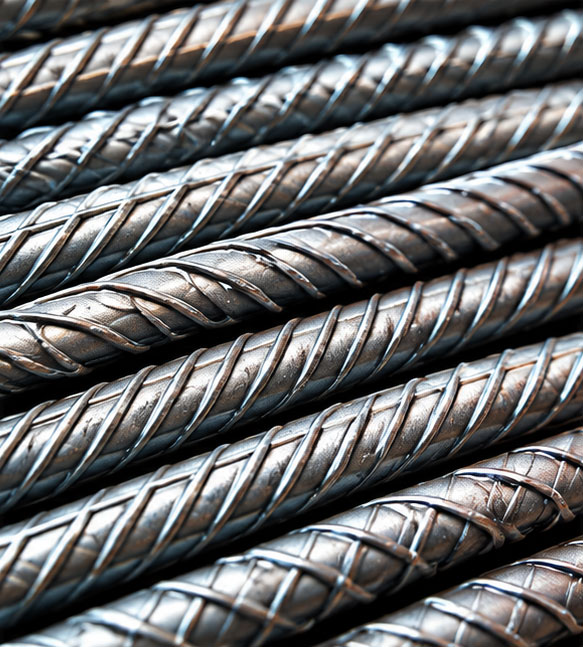

Ribbed Wire

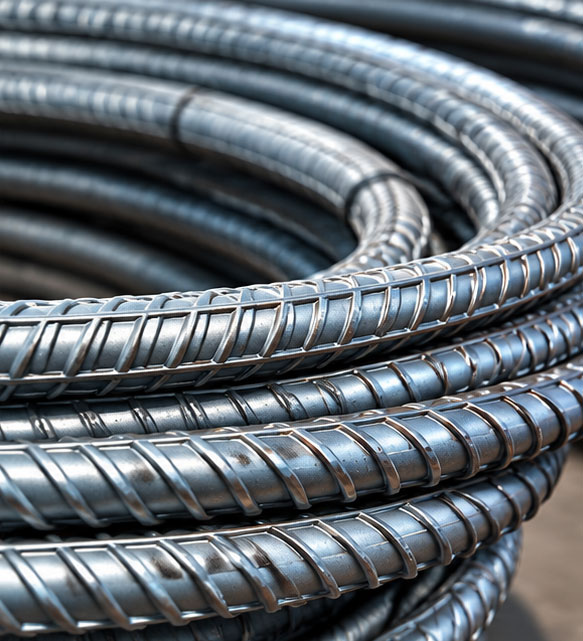

TMT Wire
FAQs
Frequently Asked Questions
What is the Automatic TMT or Ribbed Wire Straightening and Cutting Machine used for?
It straightens and cuts coiled TMT or ribbed wire into long, measured pieces for reinforcement and construction-product work.
How does the Automatic TMT or Ribbed Wire Straightening and Cutting Machine work?
Powered rollers feed ribbed material through a straightener, the length system measures travel, and the cutter produces the set piece.
What is the available working range of the Automatic TMT or Ribbed Wire Straightening and Cutting Machine?
The two listed models cover 6–10 mm and 8–13 mm material, with feeding capacities of 70 and 90 m/min respectively.
Which industries use the Automatic TMT or Ribbed Wire Straightening and Cutting Machine?
Reinforcement processors, precast plants, construction suppliers, welded-mesh producers, and ribbed-wire fabricators use it.
What should be checked before selecting the Automatic TMT or Ribbed Wire Straightening and Cutting Machine?
Confirm profile, diameter, tensile grade, coil, cut length, straightness, feeding rate, run-out table, lifting, power, and space.
How should the Automatic TMT or Ribbed Wire Straightening and Cutting Machine be maintained?
Inspect rollers, straightening blocks, cutter, measuring system, drive, supports, lubrication, guards, and fasteners under safe isolation.
