Grinding Machines

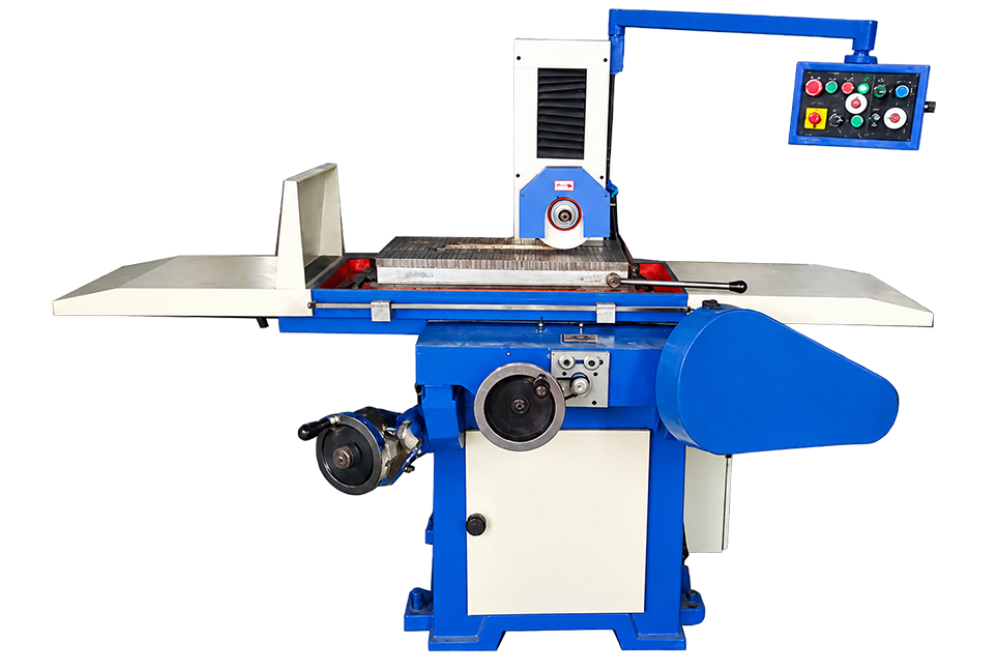

Automatic Surface Grinder
For work involving plates, dies, tooling, and machine parts, the Automatic Surface Grinder offers a process-specific solution. The operating method supports tool rooms, die shops, repair facilities, and precision plants and centres on stable table movement and controlled wheel engagement. Automatic functions reduce repeated manual intervention during the cycle.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Automatic Surface Grinder
Machine Purpose
The Automatic Surface Grinder provides a dedicated method of producing flat, smooth component surfaces. Rather than acting as unrelated general equipment, it brings the working elements together around plates, dies, tooling, and machine parts.
How It Works
In operation, it passes supported work beneath a rotating abrasive wheel. The practical focus is stable table movement and controlled wheel engagement. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup. Automatic functions reduce repeated manual intervention during the cycle.
Industrial Applications
The machine is applicable to tool rooms, die shops, repair facilities, and precision plants. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
When comparing versions of the Automatic Surface Grinder, buyers should review the work envelope, tooling, control method, loading, and service access. Numerical capacity, speed, accuracy, or power must be confirmed from the selected model’s documented specification.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Models | PPSC-20 | PPSC-24 | PPSC-30 |
| Working Surface of Table | 525X205 MM | 625X200 MM | 625x300 MM |
| Grinding Capacity | 500X200 MM | 600X200 MM | 600X300 MM |
| Longitudinal Traverse | 525 MM | 610 MM | 630 MM |
| Cross Traverse | 215 MM | 215 MM | 320 MM |
| Vertical Traverse | 250 MM | 250 MM | 330 MM |
| Grinding Wheel Dia and Width | 200X12 MM | 200X12 MM | 200X12 MM |
| Spindle Speed | 2800 RPM | 2800 RPM | 2800 RPM |
| Cross Feed Graduation | .05 MM | .05 MM | .05 MM |
| Vertical Feed Graduation | .02 MM | .02 MM | .02 MM |
| Floor Space Requires | 1150X900 MM | 1250X1200 MM | 1850X1350 MM |
| Weight Gross | 1250X kgs. Approx | 1350 kgs. Approx | 1750 kgs. Approx |
|
ELECTRICALS
|
-
|
-
|
-
|
| Electrical Motors For Grinding Wheel | 1.0 H.P 2800 | 1.0 H.P 2800 |
-
|
| Elecrtrical Motor For Auto Feed Models Only |
-
|
1.0 H.P 1440 |
-
|
FAQs
Frequently Asked Questions
Why is a Automatic Surface Grinder used in industrial work?
The Automatic Surface Grinder is intended for producing flat, smooth component surfaces. It is arranged around plates, dies, tooling, and machine parts, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a Automatic Surface Grinder?
The machine passes supported work beneath a rotating abrasive wheel. Its stable table movement and controlled wheel engagement supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a Automatic Surface Grinder handle?
It is primarily associated with plates, dies, tooling, and machine parts. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a Automatic Surface Grinder typically installed?
Typical users include tool rooms, die shops, repair facilities, and precision plants. In these settings, the Automatic Surface Grinder may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a Automatic Surface Grinder?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a Automatic Surface Grinder?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a Automatic Surface Grinder?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Automatic Surface Grinder.
What is the benefit of automatic operation on this Automatic Surface Grinder?
Automatic functions reduce repeated manual intervention during the cycle. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
