Construction Machinery

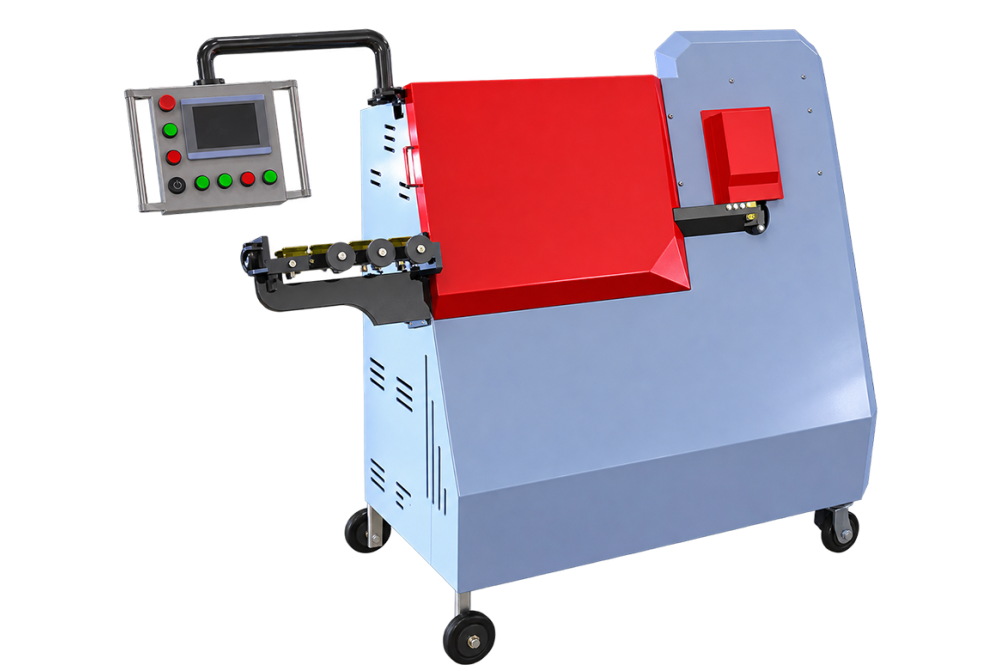

Automatic Steel Bar Bending Machine
Built around forming reinforcing bars for concrete structures, the Automatic Steel Bar Bending Machine provides a dedicated working arrangement. Its repeatable bend positioning suits rebar yards, sites, precast plants, and civil projects. Automatic functions reduce repeated manual intervention during the cycle.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Automatic Steel Bar Bending Machine
Machine Purpose
The Automatic Steel Bar Bending Machine provides a dedicated method of forming reinforcing bars for concrete structures. Rather than acting as unrelated general equipment, it brings the working elements together around reinforcement used in cages, beams, columns, and foundations.
How It Works
Its cycle is based on the way it drives bending pins around located steel bar. The design therefore prioritises repeatable bend positioning; actual output still depends on the chosen model, tool, workpiece, and operating method. Automatic functions reduce repeated manual intervention during the cycle.
Industrial Applications
The machine is applicable to rebar yards, sites, precast plants, and civil projects. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Automatic Steel Bar Bending Machine.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | pASBB |
|---|---|
| Speed | 25 ties/minute (150x150 mm tie) |
| Productivity | 2.7 — 3.5 tons/day |
| Tie Type | Over SO tie types, max (800—400) |
| mm or as required | |
| Bending Rebar Type | Phi 6, 8, 10 twisted (deformed) |
| Tie Quality | Standard tight, neat |
| Dimensions (LxW/xH) | 2200 x 700 x 1800 mm |
| Weight | 390 kg |
| Power Supply | Single-phase household 220V |
| Motor System | 3 Servo motors 2.6 kW |
| Control Cabinet | CHIHO proprietary software board |
| Touch Screen | 7-9 inch |
| P rocessing | Precise CNC machining |
| Blade Set | Integrated special SKD, easy to use, |
| easy to replace | |
| Individual SKD rollers, easy to | |
| Straightening unit | adjust, standard beautiful |
| tie quality |
Applications
Applications
Automatic Steel Bar Bending Machine Image 1
Automatic Steel Bar Bending Machine Image 2
Automatic Steel Bar Bending Machine Image 3
Automatic Steel Bar Bending Machine Image 4
Automatic Steel Bar Bending Machine Image 5
FAQs
Frequently Asked Questions
Why is a Automatic Steel Bar Bending Machine used in industrial work?
The Automatic Steel Bar Bending Machine is intended for forming reinforcing bars for concrete structures. It is arranged around reinforcement used in cages, beams, columns, and foundations, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a Automatic Steel Bar Bending Machine?
The machine drives bending pins around located steel bar. Its repeatable bend positioning supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a Automatic Steel Bar Bending Machine handle?
It is primarily associated with reinforcement used in cages, beams, columns, and foundations. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a Automatic Steel Bar Bending Machine typically installed?
Typical users include rebar yards, sites, precast plants, and civil projects. In these settings, the Automatic Steel Bar Bending Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a Automatic Steel Bar Bending Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a Automatic Steel Bar Bending Machine?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a Automatic Steel Bar Bending Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Automatic Steel Bar Bending Machine.
When is automatic operation useful on a Automatic Steel Bar Bending Machine?
Automatic functions reduce repeated manual intervention during the cycle. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
