Wire Industry Machines

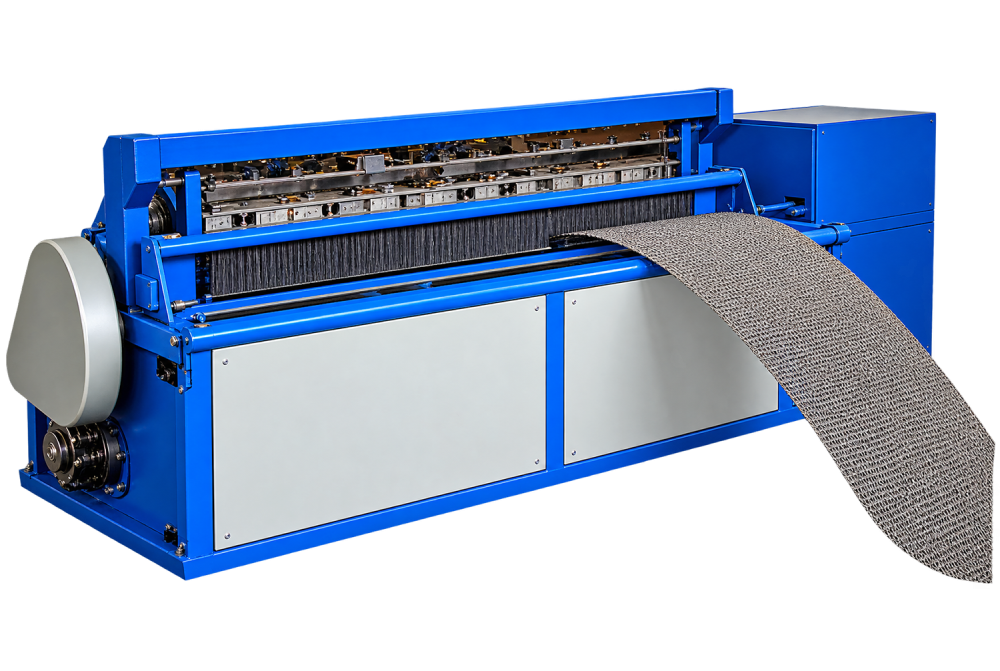

Automatic Crimped Wire Mesh Machine
An automated PLC-controlled mesh machine for crimping and weaving 1.5–5 mm wire into accurately spaced industrial screens and panels.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Automatic Crimped Wire Mesh Machine
The Automatic Crimped Wire Mesh Machine provides a coordinated production line for preparing intersecting wire and forming repeatable crimped mesh. Automated control helps maintain spacing and production rhythm across recurring panels.
Working Principle
Prepared warp and cross wires are crimped to establish locating waves, then brought together in the programmed mesh pattern. The control system coordinates motion so aperture placement remains consistent within the confirmed setup.
Key Production Capability
Model TLPACWM is listed for 1.5–5 mm wire, 3–50 mm aperture sizes, 30–40 r/min operating speed, 3.8 kW power, and 380 V three-phase 50 Hz supply. The source mesh-width row should be confirmed before ordering because its recorded unit appears inconsistent.
Industrial Applications
Suitable applications include industrial screens, guards, fencing panels, agricultural separation mesh, architectural infill, and general fabricated wire products made from compatible low-carbon, high-carbon, manganese, or stainless wire.
Why Choose This Machine?
Automated sequencing can reduce repeated manual positioning, improve aperture consistency, and support steady output across batches while retaining the flexibility to configure compatible wire and mesh sizes.
Selection and Operating Considerations
Match wire grade, tensile condition, diameter, aperture, panel dimensions, edge treatment, and daily volume to the machine and tooling. Straightness, feed quality, guarding, and operator training directly influence finished mesh.
Pathak Industries supplies this machine with application-based guidance. Confirm the selected model, wire specification, tooling, utilities, guarding, and required output against actual production samples before ordering.
Specifications
Technical Specifications
| Model | TLPACWM |
| Raw Material Wire | 65 Mn Steel Wire,high carbon steel wire,low-carbon steel wire,stainless steel wire,etc. |
| Control System | PLC System |
| Wire Diameter Range | 1.5-5 mm |
| Aperture Size | 3-50 mm |
| Max Mesh Width | 2.5 mm |
| Speed | 30-40 r/min |
| Power | 3.8 Kw |
| Voltage | 380 V,3 Phase,50 Hz |
FAQs
Frequently Asked Questions
What is the Automatic Crimped Wire Mesh Machine used for?
It automates the crimping and mesh-forming sequence for compatible wire used in screens, fencing, guards, and fabricated panels.
How does the Automatic Crimped Wire Mesh Machine work?
The machine prepares crimped wire profiles and coordinates their placement into a repeat mesh pattern through its controlled production sequence.
What is the available working range of the Automatic Crimped Wire Mesh Machine?
The published range is 1.5–5 mm wire and 3–50 mm aperture size, with model and mesh width to be confirmed for the required panel.
Which industries use the Automatic Crimped Wire Mesh Machine?
Screen manufacturers, fencing producers, agricultural-equipment suppliers, construction-product units, and general wire-fabrication plants can use it.
What should be checked before selecting the Automatic Crimped Wire Mesh Machine?
Confirm wire material, diameter, tensile condition, aperture, mesh width, panel length, edge finish, utilities, and target output.
How should the Automatic Crimped Wire Mesh Machine be maintained?
Keep feed and crimping areas clean, inspect tooling and guides, lubricate specified points, check controls and drives, and isolate power before service.
