Automatic Circular Saw Cutting Machine
For work involving bars, tubes, profiles, or timber named in the title, the Automatic Circular Saw Cutting Machine offers a process-specific solution. The operating method supports stock preparation, fabrication, and production sawing and centres on rigid clamping close to the cutting zone. Automatic functions reduce repeated manual intervention during the cycle.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview

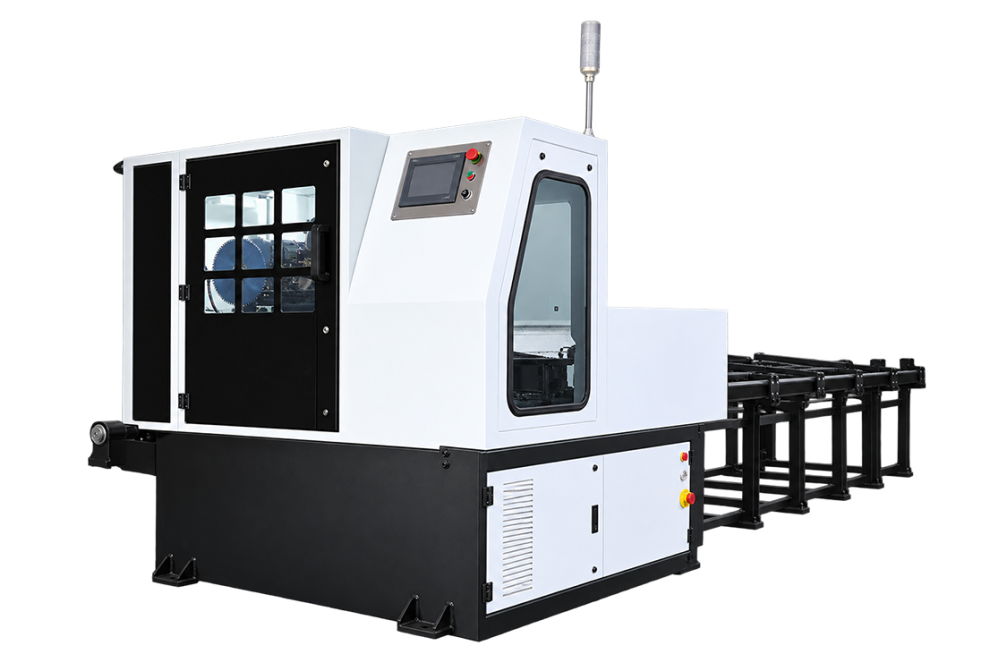

Automatic Circular Saw Cutting Machine
Machine Purpose
The Automatic Circular Saw Cutting Machine provides a dedicated method of making fast straight cuts through stock. Rather than acting as unrelated general equipment, it brings the working elements together around bars, tubes, profiles, or timber named in the title.
How It Works
In operation, it feeds a rotating circular blade through clamped material. The practical focus is rigid clamping close to the cutting zone. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup. Automatic functions reduce repeated manual intervention during the cycle.
Industrial Applications
The machine is applicable to stock preparation, fabrication, and production sawing. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
Selection Considerations
Machines within sheet metal machines can differ in arrangement and capability. The required Automatic Circular Saw Cutting Machine should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | PCS-75S | PCS-90S | PCS-110S | PCS-150S |
| Cutting Capacity in Round | 10-72mm | 15-90mm | 25-110mm | 60-150mm |
| Cutting Capacity in Square | 10-55mm | 15-70mm | 28-85mm | 60-105mm |
| Cutting Capacity in Rectangle | 10x10 to 45x75mm | 15x15 to 55x90mm | 25x25 to 70x100mm | 60x60 to 60x110mm |
| Trim Cut | 10mm | 10mm | 15mm | 15mm |
| Cutting Length | 10-600 (In a single stroke and 10-3000 (In multi-inducting) | 10-600 (In a single stroke and 10-3000 (In multi-inducting) | 10-600 (In a single stroke and 10-3000 (In multi-inducting) | 10-600 (In a single stroke and 10-3000 (In multi-inducting) |
| Resedue / End Piece | 45-70mm | 45-70mm | 45-70mm | 45-70mm |
| Saw Blade | 285 mm diameter x2mm | 315 mm diameter x2mm | 360 mm diameter x2mm | 460 mm diameter x2mm |
| Number Of Teeth Z | 54,60,72,80,100 | 54,60,72,80,100 | 54,60,72,80,100 | 54,60,72,80,100 |
| Mounting of Hole Size | Dia 63/4 Dia 11mm, 32mm Bore | Dia 63/4 Dia 11mm, 32mm Bore | Dia 90/4 Dia 12.5mm, 40mm Bore | Dia 90/4 Dia 12.5mm, 40mm Bore |
| Cutter Feed Mtr./Min | 40-130 MPM | 40-135 MPM | 50-135 MPM | 40-130 MPM |
| Cutting Feed mm/Sec. | 1-15 mm/Sec | 1-15 mm/Sec | 1-15 mm/Sec | 1-15 mm/Sec |
| Fast Approach mm/Sec. | 140 mm/Sec | 140 mm/Sec | 120 mm/Sec | 120 mm/Sec |
| Set Inch Length | 1-100 mm/Sec | 1-100 mm/Sec | 1-100 mm/Sec | 1-100 mm/Sec |
| Saw Motor Powder | 7.5 Kw | 9.37 Kw | 11.25 Kw | 15 Kw |
| Hydraulic Motor | 1.5 Kw | 1.5 Kw | 1.5 Kw | 2 Kw |
| Chip Conveyor Motor (Opt.) | 0.37 Kw | 0.37 Kw | 0.37 Kw | 0.37 Kw |
| Lubrication Motor | 0.16 KW | 0.16 KW | 0.16 KW | 0.16 KW |
| Machine Dimensions (L-W-H) | 2100mm, 1600m, 1550mm | 2250mm, 1600m, 1700mm | 2450mm, 1760m, 1900mm | 2650mm, 2000m, 2260mm |
| Optional Auto Loader Dimensions (L-W-H) | 5000mmx, 1200 mmx, 1000mm | 5000mmx, 1200 mmx, 1000mm | 5000mmx, 1200 mmx, 1000mm | 5000mmx, 1200 mmx, 1000mm |
Applications
Applications
Automotive
Heavy Engineering Units
Auto Component Manufacturing
Alloy Steel Bar Processing
High Volume Industrial Cutting Operations
FAQs
Frequently Asked Questions
What does a Automatic Circular Saw Cutting Machine do?
The Automatic Circular Saw Cutting Machine is intended for making fast straight cuts through stock. It is arranged around bars, tubes, profiles, or timber named in the title, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Automatic Circular Saw Cutting Machine complete its working cycle?
The machine feeds a rotating circular blade through clamped material. Its rigid clamping close to the cutting zone supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Automatic Circular Saw Cutting Machine?
It is primarily associated with bars, tubes, profiles, or timber named in the title. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Automatic Circular Saw Cutting Machine?
Typical users include stock preparation, fabrication, and production sawing. In these settings, the Automatic Circular Saw Cutting Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Automatic Circular Saw Cutting Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Automatic Circular Saw Cutting Machine need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Automatic Circular Saw Cutting Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Automatic Circular Saw Cutting Machine.
How does automatic operation affect the Automatic Circular Saw Cutting Machine?
Automatic functions reduce repeated manual intervention during the cycle. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
