Automatic Barbed Wire Making Machine
An automatic PBWM-1 line for producing 12/12 SWG barbed wire at 140–160 barbs per minute with selectable standard barb spacing.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview

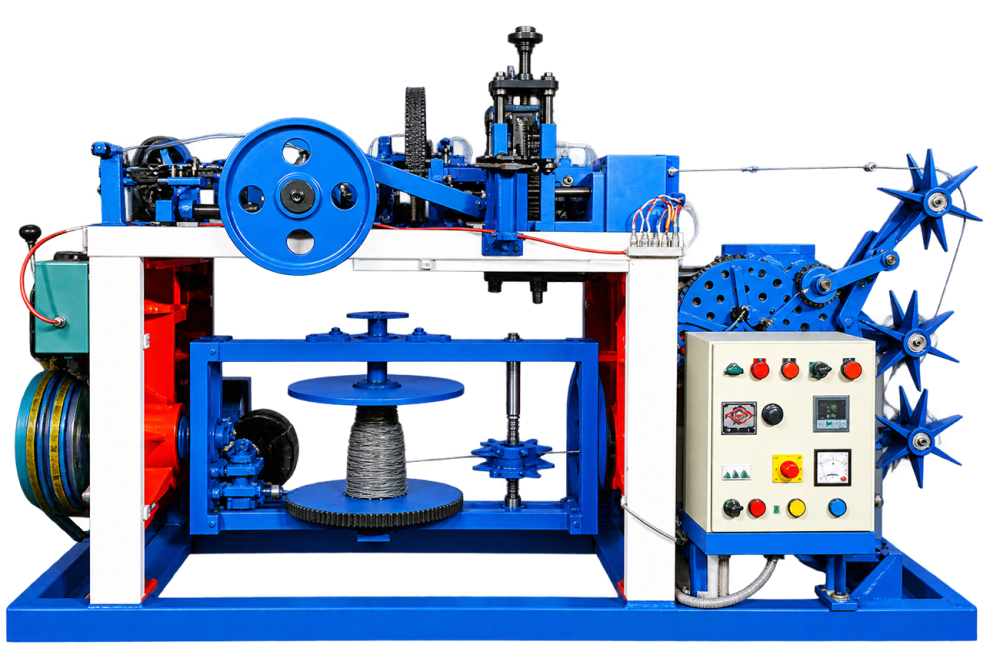

Automatic Barbed Wire Making Machine
The Automatic Barbed Wire Making Machine brings strand feeding, barb-wire wrapping, pitch control, and coil winding into a coordinated production process for fencing wire.
Working Principle
Prepared strand and point wires feed into the mechanism, where point wire is wrapped at controlled intervals around the strand assembly. Finished barbed wire is wound into planned coil lengths for handling.
Key Production Capability
PBWM-1 is listed for 12/12 SWG (2.64 mm) wire, 140–160 barbs per minute, approximately 500 kg per eight-hour shift, standard 3- and 4-inch spacing, a 5 HP/960 rpm motor, and coils up to 400 metres.
Industrial Applications
The machine supports agricultural boundaries, livestock enclosures, security fencing, industrial perimeters, and fencing-wire supply operations.
Why Choose This Machine?
Automatic pitch control and winding can improve spacing consistency and reduce manual handling while supporting planned coil size and repeat shift output.
Selection and Operating Considerations
Confirm wire coating, gauge, tensile behaviour, strand construction, barb pitch, point form, coil length and mass, motor supply, guarding, and daily capacity.
Pathak Industries supplies this machine with application-based guidance. Confirm the selected model, wire specification, tooling, utilities, guarding, and required output against actual production samples before ordering.
Specifications
Technical Specifications
| Model | PBWM-1 |
| Strand and point wire | 12/12 SWG* / i.e/ 2.64 mm diameter. |
| Strand and point wire | Hard Briught fully hot dip galvanized wire with under 30 to 55 kgs F / min |
| Producation Capacity | 500 kgs / 8 Hrs.shift for 12/12 SWG wire with 140 to 160 barbs / min Capacity to coil bundies of 400 meters (bundle size 16" dia x 10" width weight 40/50 kgs |
| Barb Spacing | Standard 3" & 4" pitch (optional 5" / 6" / etc. with charge parts) |
| Motor | 5 HP / 960 RPM |
| Net/Gross Weight | 1100 x 1400 kgs |
| Shipping Dimenstions | 2550 x 1150 x1250 mm |
| Shipping Volume | 3.70 m3 |
FAQs
Frequently Asked Questions
What is the Automatic Barbed Wire Making Machine used for?
It automatically produces barbed fencing wire by combining strand wire with regularly spaced wrapped point wire.
How does the Automatic Barbed Wire Making Machine work?
The mechanism feeds strand and point wire, forms barbs at the selected pitch, twists the assembly, and winds finished wire into coils.
What is the available working range of the Automatic Barbed Wire Making Machine?
PBWM-1 lists 12/12 SWG wire, 140–160 barbs per minute, 3- and 4-inch standard spacing, and roughly 500 kg per shift.
Which industries use the Automatic Barbed Wire Making Machine?
Fencing-wire manufacturers, agricultural suppliers, security-product plants, and wire-processing workshops use the machine.
What should be checked before selecting the Automatic Barbed Wire Making Machine?
Confirm wire gauge and coating, strand style, barb pitch, coil size, output, electrical supply, pay-off equipment, and guarding.
How should the Automatic Barbed Wire Making Machine be maintained?
Inspect forming and twisting parts, guides, cutters, winding system, bearings, guards, and lubrication while keeping wire scale controlled.
