Scrap Bailing Machines

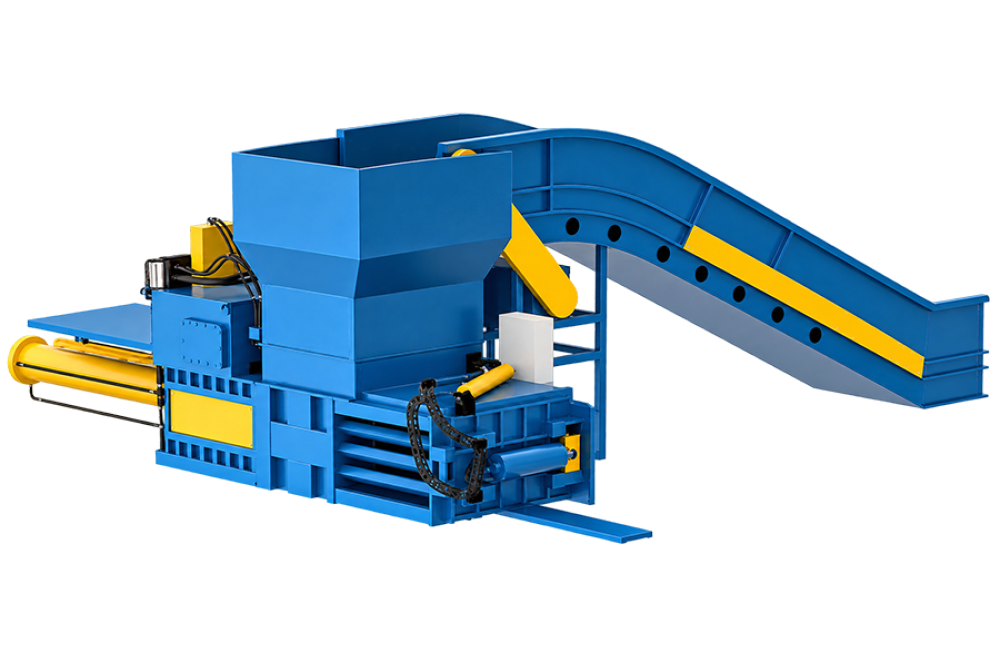

Auto Tie Baling Machine
The Auto Tie Baling Machine is designed for compressing loose recyclable material into manageable bales. The operating method supports recycling yards, recovery facilities, mills, and waste processors and centres on contained compaction for storage and transport.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Auto Tie Baling Machine
Machine Purpose
For facilities needing compressing loose recyclable material into manageable bales, the Auto Tie Baling Machine offers a process-specific workstation. Its arrangement supports metal, cardboard, textile, plastic, or title-specific recyclable feed while keeping the important operating area accessible.
Industrial Applications
The machine is applicable to recycling yards, recovery facilities, mills, and waste processors. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
How It Works
In operation, it loads material into a chamber and applies ram pressure. The practical focus is contained compaction for storage and transport. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Auto Tie Baling Machine.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | PATBM |
|---|---|
| Bale size (W x H x L) | 720 x 830 x up-to 2000 mm |
| Feeding hopper | 1100 x 1100 mm |
| Bale weight | 600-630 kg (for OCC/cardboard) |
| Bale cycle time | 08-10 min |
| Production rate | 3.5-04 t/h (for OCC/cardboard) |
| Operation | Fully automatic with PLC control |
| Tying system | Auto-tie |
| Tying wires | 03 or 3.5 mm annealed MS wire |
| No. of tying wires | 04 Nos. |
Short Videos

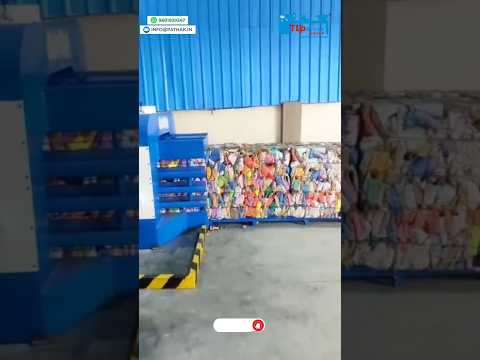

YouTube Short Videos
Applications
Applications
Auto Tie Baling Machine Application Image 1
Auto Tie Baling Machine Application Image 2
Auto Tie Baling Machine Application Image 3
Auto Tie Baling Machine Application Image 4
Auto Tie Baling Machine Application Image 5
Auto Tie Baling Machine Application Image 6
Auto Tie Baling Machine Application Image 7
Auto Tie Baling Machine Application Image 8
FAQs
Frequently Asked Questions
What does a Auto Tie Baling Machine do?
The Auto Tie Baling Machine is intended for compressing loose recyclable material into manageable bales. It is arranged around metal, cardboard, textile, plastic, or title-specific recyclable feed, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Auto Tie Baling Machine complete its working cycle?
The machine loads material into a chamber and applies ram pressure. Its contained compaction for storage and transport supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Auto Tie Baling Machine?
It is primarily associated with metal, cardboard, textile, plastic, or title-specific recyclable feed. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Auto Tie Baling Machine?
Typical users include recycling yards, recovery facilities, mills, and waste processors. In these settings, the Auto Tie Baling Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Auto Tie Baling Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Auto Tie Baling Machine need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Auto Tie Baling Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Auto Tie Baling Machine.
