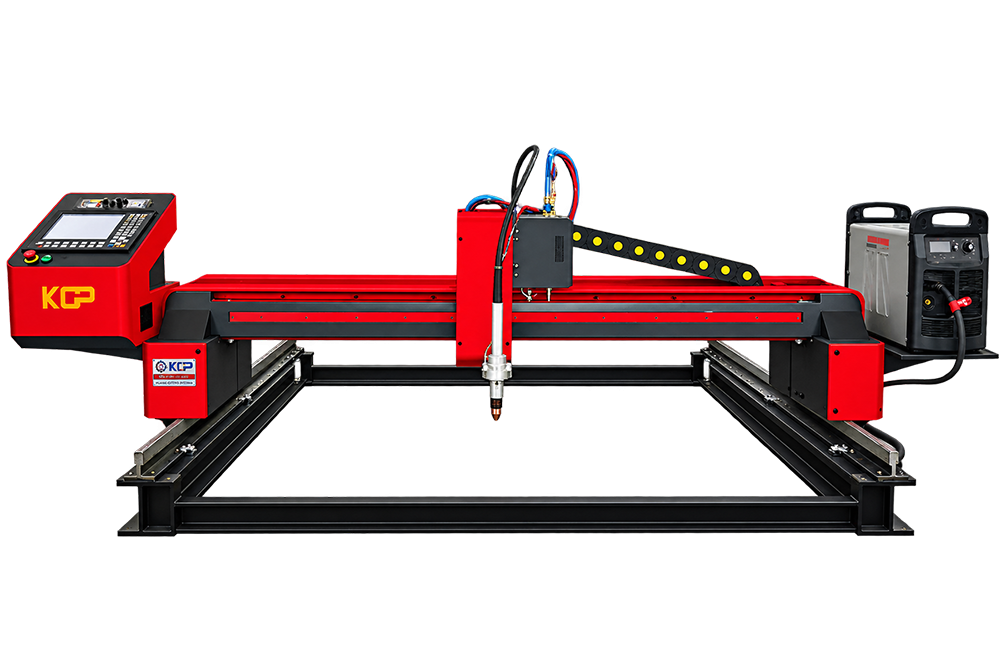

Arc Mate Pro Gantry Type CNC Plasma Machine
For work involving steel and other conductive sheet or plate, the Arc Mate Pro Gantry Type CNC Plasma Machine offers a process-specific solution. Typical users include structural fabrication, plate processing, ducting, and repair work, where rapid non-contact profile cutting is valuable. Programmed motion supports repeatable positioning and cycle control.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
Arc Mate Pro Gantry Type CNC Plasma Machine
Machine Purpose
Used for cutting conductive metal with a concentrated plasma arc, the Arc Mate Pro Gantry Type CNC Plasma Machine addresses a distinct stage of industrial work. It accommodates steel and other conductive sheet or plate and keeps setup, tool engagement, and job handling centred on that task.
Industrial Applications
The machine is applicable to structural fabrication, plate processing, ducting, and repair work. It can support individual jobs, recurring batches, or a dedicated station between earlier preparation and later inspection.
How It Works
In operation, it guides a plasma torch along the required profile. The practical focus is rapid non-contact profile cutting. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup. Programmed motion supports repeatable positioning and cycle control.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Arc Mate Pro Gantry Type CNC Plasma Machine.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
|
SPECIFICATION
|
DESCRIPTION
|
|
| Machine Type |
Lite Gantry
|
|
| Model No. |
ArcMate Pro 2070 (Lite Gantry) |
ArcMate Pro 2070 (Lite Gantry) |
| Effective Cutting Width | 2000mm | 2500mm |
| Effective Cutting Length | Customizable length upto 15000mm | |
| Advance Feature | Wireless remote for x-y axis alignment | |
| Driving configuration | Dual drive 86 series stepper motor | |
| Cutting Head | Plasma with Auto z-axis up-down movement and Oxyfuel with manual uo-down switch | |
| Max.Travel Speed | 6000mm/min | |
| Input Power | Single phase 220V, 50Hz + Plasma (depends on power source selection) | |
| Gases required | Compressed air for plasma cutting / LPG and Oxygen for Oxy-fuel cutting | |
| Z-axis (torch) lifting distance | <100mm | |
| Working accuracy | +/- 0.2mm | |
| Cutting capacity |
2mm to 25mm (Mild steel) depending on Plasma power source selection / 10mm to 150mm for Oxy-fuel cutting |
|
| Controller | 10.4'' wide colour screen CNC automation dedicated controller for plasma and oxy-fuel. | |
| Nesting software | Fast Cam basic | |
| Cutting Table Base | Standard material collection Table with weight carrying capacity of 1200 kg | |
| Req. Installation Area | W3.2m * L 8.5m * H 1.5m | W 3.7m*L 8.5m * H 1.5m |
