Scrap Bailing Machines
Aluminium Bundle Cutting Press Machine
The primary role of the Aluminium Bundle Cutting Press Machine is separating material into required sizes or profiles. It guides a suitable cutting tool through securely supported work, with stable work support close to the cutting area. The compact format suits appropriately sized work and restricted floor space.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview

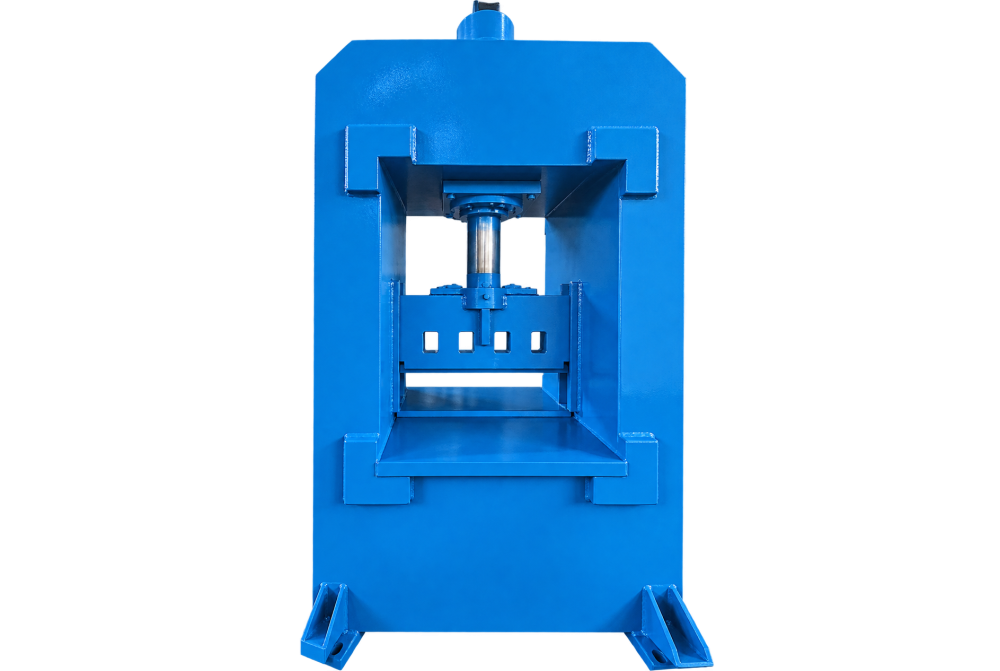

Aluminium Bundle Cutting Press Machine
Machine Purpose
The Aluminium Bundle Cutting Press Machine provides a dedicated method of separating material into required sizes or profiles. Rather than acting as unrelated general equipment, it brings the working elements together around the stock or component identified by the title.
How It Works
A typical cycle begins with locating the job correctly, after which the machine guides a suitable cutting tool through securely supported work. Its stable work support close to the cutting area supports repeat work without replacing the need for trained operation. The compact format suits appropriately sized work and restricted floor space.
Industrial Applications
Likely users are found in material preparation, fabrication, maintenance, and production. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen Aluminium Bundle Cutting Press Machine.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| Model | PABCM |
|---|---|
| Capacity | 300 Ton Pressure Capacity, Bundle Cutting Machine (18x18) |
| Bundle size | 18(L) x 18(W) inch |
| Platform size | 36(L) x 30(W) x 25(H) inch |
| No. of cylinder | 1 Nos. |
| Cylinder size | 400(Bore) x 460(OD) x 300(Ram) x 700(Stroke) mm |
| Cutting blade | 762(L) x 60(W) x 150(H) mm with Ram |
| Oil tank capacity | 600 Liters |
| Hydraulic system | Double Vane Pump Systems |
| Day light gap | 25 Inch |
| Operation | Panel Operate Systems |
| Electric motor | 25 HP Motor, 3 Phase, 1440 RPM, 50Hz |
| Overall dimension | 102(L) x 48(W) x 104(H) inch |
| Body plate | 8 mm, 30 mm, 60 mm |
Applications
Applications
Aluminium Bundle Cutting Press Machine Application Image 1
Aluminium Bundle Cutting Press Machine Application Image 2
Aluminium Bundle Cutting Press Machine Application Image 3
Aluminium Bundle Cutting Press Machine Application Image 4
FAQs
Frequently Asked Questions
What does a Aluminium Bundle Cutting Press Machine do?
The Aluminium Bundle Cutting Press Machine is intended for separating material into required sizes or profiles. It is arranged around the stock or component identified by the title, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the Aluminium Bundle Cutting Press Machine complete its working cycle?
The machine guides a suitable cutting tool through securely supported work. Its stable work support close to the cutting area supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a Aluminium Bundle Cutting Press Machine?
It is primarily associated with the stock or component identified by the title. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a Aluminium Bundle Cutting Press Machine?
Typical users include material preparation, fabrication, maintenance, and production. In these settings, the Aluminium Bundle Cutting Press Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a Aluminium Bundle Cutting Press Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a Aluminium Bundle Cutting Press Machine need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a Aluminium Bundle Cutting Press Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title Aluminium Bundle Cutting Press Machine.
How does design arrangement affect the Aluminium Bundle Cutting Press Machine?
The compact format suits appropriately sized work and restricted floor space. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
