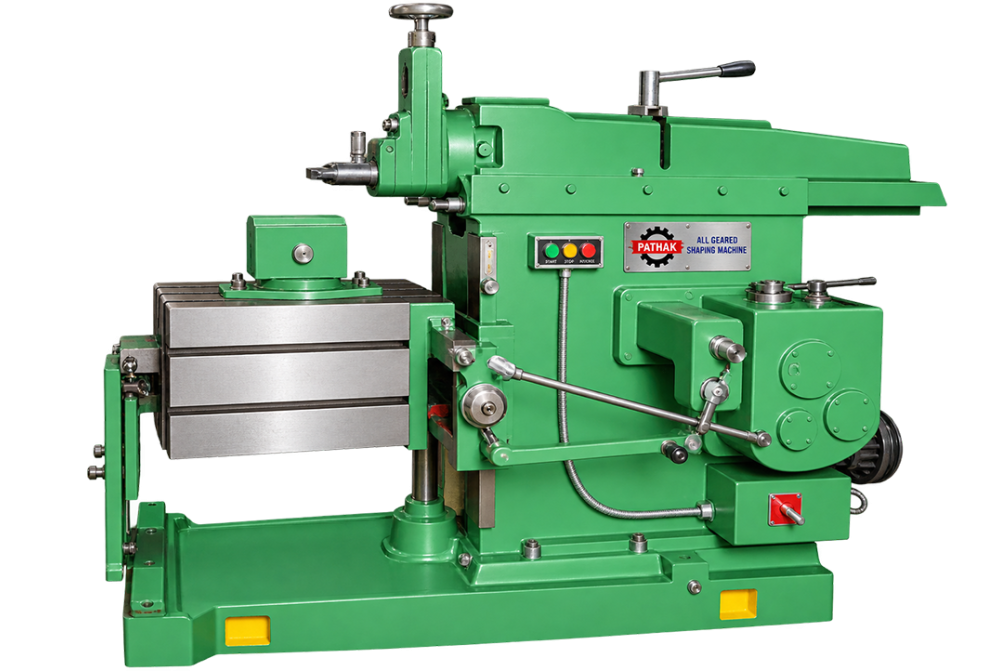

All Geared Shaping Machine
For work involving blocks, repair parts, and small fabrications, the All Geared Shaping Machine offers a process-specific solution. It reciprocates a single-point tool across clamped work, with adjustable ram travel with simple tooling. An all-geared drive provides selectable mechanical transmission.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
All Geared Shaping Machine
Machine Purpose
For facilities needing machining flat surfaces, shoulders, grooves, and keyways, the All Geared Shaping Machine offers a process-specific workstation. Its arrangement supports blocks, repair parts, and small fabrications while keeping the important operating area accessible.
Industrial Applications
Natural settings include general workshops, training institutes, and tool shops. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
How It Works
A typical cycle begins with locating the job correctly, after which the machine reciprocates a single-point tool across clamped work. Its adjustable ram travel with simple tooling supports repeat work without replacing the need for trained operation. An all-geared drive provides selectable mechanical transmission.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen All Geared Shaping Machine.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODEL | SS12 | SS18 | SS24 | SS30 | SS36 | SS40 |
| Maximum Working Stroke | 14'' | 20'' | 26'' | 32'' | 38'' | 42'' |
| Length of ram without tool slide | 30'' | 40'' | 53'' | 60'' | 66'' | 75'' |
| Ram bearing in Column | 20'' | 26'' | 31'' | 37'' | 41'' | 44'' |
| Ram bearing width | 7.5'' | 10.5'' | 12'' | 12.5'' | 12.5'' | 14'' |
| Tool Slide Traverse | 5'' | 6'' | 8'' | 9'' | 10'' | 11'' |
| Maximum distance from table to ram | 14'' | 15'' | 16'' | 18'' | 20'' | 24'' |
| Maximum distance from table to ram | 2'' | 2'' | 2'' | 2'' | 2'' | 3'' |
| Horizontal traverse of the table | 16'' | 20'' | 26'' | 30'' | 32'' | 36'' |
| No of speed | 3 | 3 | 4 | 4 | 4 | 4 |
| Length and width of cross slide | 25''*10.5'' | 31''*11'' | 38''*12'' | 43''*12.5'' | 46''*12.5'' | 51''*15'' |
| Top clamping surface of table | 14''*11'' | 18.5''*12'' | 25''*15 | 31''*16'' | 37''*18.5'' | 40''*20.5'' |
| Size of base plate | 40''*16.5'' | 50''*22'' | 64''*23'' | 76''*24'' | 82''*26'' | 90''*30'' |
| Power required | 1 H.P. | 2 H.P. | 3 H.P. | 5 H.P. | 5 H.P. | 7.5 H.P. |
| Approximate net weight | 800 kg. | 1200 kg. | 1800 kg. | 2300 kg. | 3200 kg. | 4000 kg. |
Videos

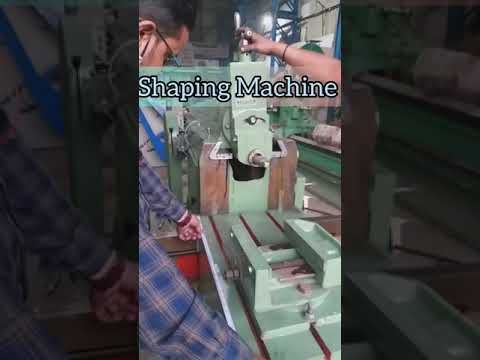

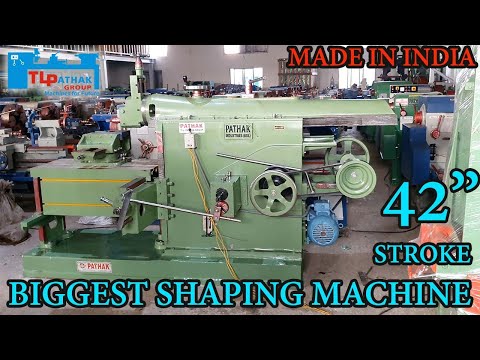

Product Videos
FAQs
Frequently Asked Questions
What does a All Geared Shaping Machine do?
The All Geared Shaping Machine is intended for machining flat surfaces, shoulders, grooves, and keyways. It is arranged around blocks, repair parts, and small fabrications, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
How does the All Geared Shaping Machine complete its working cycle?
The machine reciprocates a single-point tool across clamped work. Its adjustable ram travel with simple tooling supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What material should be prepared for a All Geared Shaping Machine?
It is primarily associated with blocks, repair parts, and small fabrications. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Which industries commonly use a All Geared Shaping Machine?
Typical users include general workshops, training institutes, and tool shops. In these settings, the All Geared Shaping Machine may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
What should be checked before buying a All Geared Shaping Machine?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
Which parts of a All Geared Shaping Machine need regular inspection?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
Which options influence the quotation for a All Geared Shaping Machine?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title All Geared Shaping Machine.
What is the benefit of design arrangement on this All Geared Shaping Machine?
An all-geared drive provides selectable mechanical transmission. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
