Drilling Machines

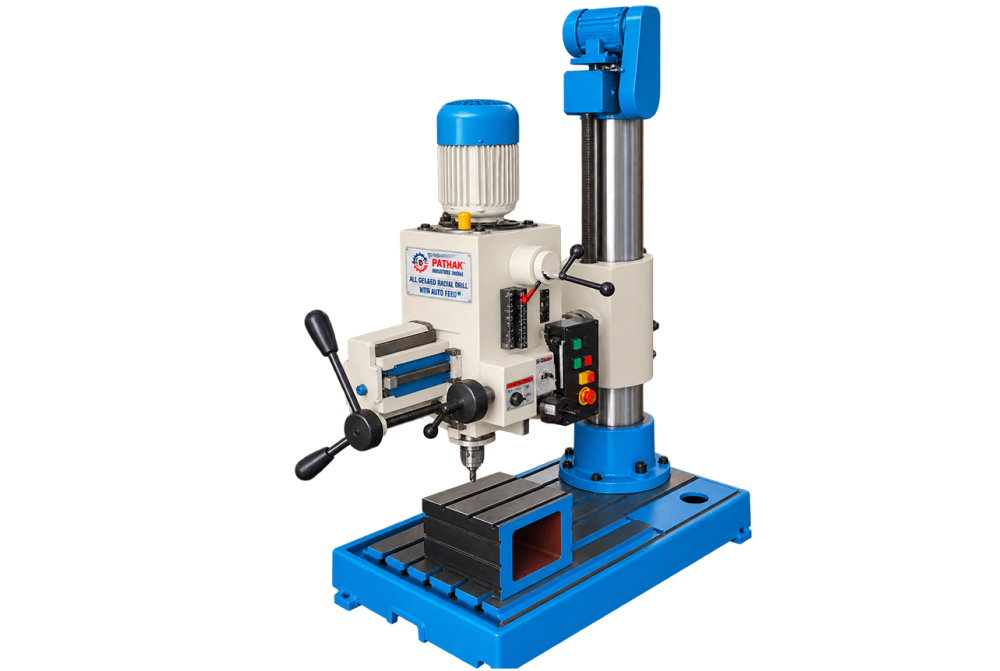

All Geared Radial Drill Machine With Auto Feed
Built around drilling varied positions on large or awkward workpieces, the All Geared Radial Drill Machine With Auto Feed provides a dedicated working arrangement. Its extended spindle reach without repeatedly moving the job suits heavy fabrication, maintenance, and machine building. An all-geared drive provides selectable mechanical transmission. Power-assisted feed supports steadier tool advance.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
All Geared Radial Drill Machine With Auto Feed
Machine Purpose
The All Geared Radial Drill Machine With Auto Feed provides a dedicated method of drilling varied positions on large or awkward workpieces. Rather than acting as unrelated general equipment, it brings the working elements together around castings, plates, and fabricated assemblies.
How It Works
In operation, it moves the drill head along a radial arm to reach the hole location. The practical focus is extended spindle reach without repeatedly moving the job. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup. An all-geared drive provides selectable mechanical transmission. Power-assisted feed supports steadier tool advance.
Industrial Applications
Likely users are found in heavy fabrication, maintenance, and machine building. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen All Geared Radial Drill Machine With Auto Feed.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODEL NO. | PRD40GA |
| Drilling capacity in mild steel | 40 |
| No. of spindle speed 9 | 80 to 1500 |
| working area of base | 870 * 760 |
| Dia of RAM | 78 |
| Spindle travel | 260 |
| Spindle nose | M.T.4 |
| Max. Min. Distance spindle nose to nose | 925 to 230 |
| Max.Distance spindle nose to nose | 620 |
| Max.Min.Distance spindle nose to column | 875 * 360 |
| Size of Box Table | 305 *305 *380 |
| Size of base (L*W*H) | 760 *1290*190 |
| Overall height of machine | 2000 |
| Spindle feed by | hand.&Auto feed |
| Drill Head motor | 2HP,RPM 1440 |
| Elevating motor | 0.5 HP, 1440 RPM |
| Net weight | 900 kgs. |
| Lifting Vee Belt | A 23 |
| Number of Autofeed | 0.05 |
Applications
Applications
Ship Building
Power Plants
Mining Industries
Tool Rooms
Workshops
Railway Workshops
FAQs
Frequently Asked Questions
What is a All Geared Radial Drill Machine With Auto Feed used for?
The All Geared Radial Drill Machine With Auto Feed is intended for drilling varied positions on large or awkward workpieces. It is arranged around castings, plates, and fabricated assemblies, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What is the working principle of a All Geared Radial Drill Machine With Auto Feed?
The machine moves the drill head along a radial arm to reach the hole location. Its extended spindle reach without repeatedly moving the job supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
Which components are normally processed on a All Geared Radial Drill Machine With Auto Feed?
It is primarily associated with castings, plates, and fabricated assemblies. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
What type of workshop needs a All Geared Radial Drill Machine With Auto Feed?
Typical users include heavy fabrication, maintenance, and machine building. In these settings, the All Geared Radial Drill Machine With Auto Feed may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
How do I choose the right All Geared Radial Drill Machine With Auto Feed?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
How should a All Geared Radial Drill Machine With Auto Feed be maintained for reliable operation?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
How is a All Geared Radial Drill Machine With Auto Feed price determined?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title All Geared Radial Drill Machine With Auto Feed.
When is design arrangement useful on a All Geared Radial Drill Machine With Auto Feed?
An all-geared drive provides selectable mechanical transmission. Power-assisted feed supports steadier tool advance. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
