Drilling Machines

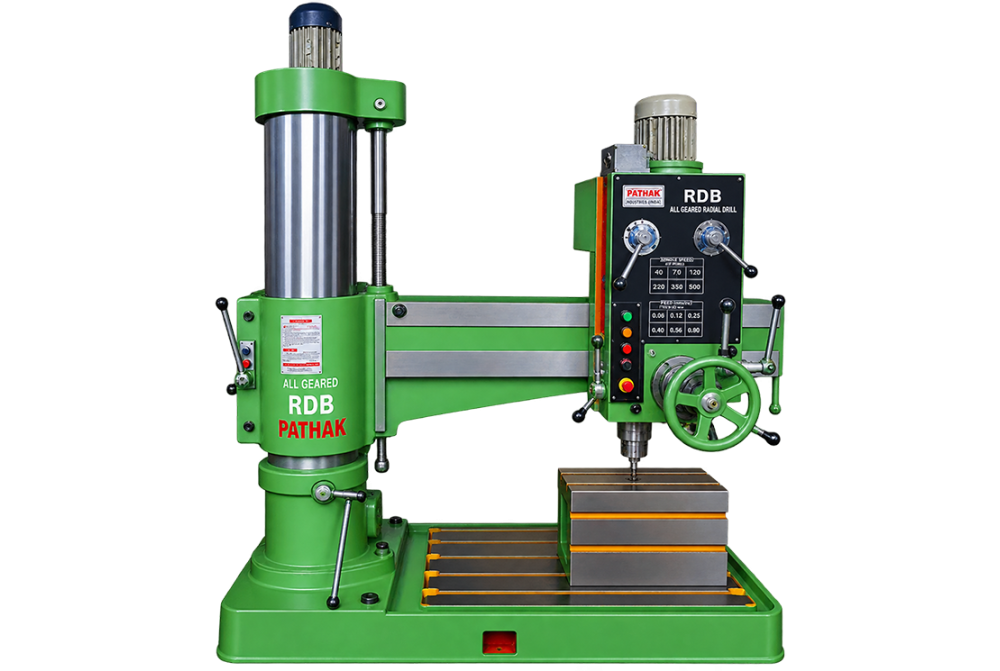

All Geared Radial Drill Machine RDB
The All Geared Radial Drill Machine RDB is designed for drilling varied positions on large or awkward workpieces. The operating method supports heavy fabrication, maintenance, and machine building and centres on extended spindle reach without repeatedly moving the job. An all-geared drive provides selectable mechanical transmission.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
All Geared Radial Drill Machine RDB
Machine Purpose
For facilities needing drilling varied positions on large or awkward workpieces, the All Geared Radial Drill Machine RDB offers a process-specific workstation. Its arrangement supports castings, plates, and fabricated assemblies while keeping the important operating area accessible.
Industrial Applications
Likely users are found in heavy fabrication, maintenance, and machine building. They may use it to organise the named operation, reduce repeated handling, and establish a consistent workstation for suitable jobs.
How It Works
In operation, it moves the drill head along a radial arm to reach the hole location. The practical focus is extended spindle reach without repeatedly moving the job. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup. An all-geared drive provides selectable mechanical transmission.
Selection Considerations
Selection should follow the real workpiece, material, operation, production frequency, handling method, and available space. Exact performance data must come from the technical specification for the chosen All Geared Radial Drill Machine RDB.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODEL | RD40B | RD50B | RD 50C | RD65B | RD75 |
| Drill Capacity in solid mild steel | 40mm | 50mm | 50mm | 65mm | 75mm |
| Drill Capacity in Cast Iron | 50mm | 60mm | 60mm | 75mm | 80mm |
| Dia of column | 255 | 310 | 310 | 355 | 405 |
| Drilling Radium Minimum | 375 | 450 | 425 | 650 | 675 |
| Drilling Radium Maximum | 950 | 1100 | 1325 | 1600 | 1950 |
| Machine Height For Floor | 2420 | 2760 | 2760 | 3170 | 3320 |
| Distance from spindle nose to top of the base plate minimum spindle in downward position | 100 | 100 | 100 | 100 | 100 |
| Distance from spindle nose to top of the base plate minimum spindle in downward position | 1150 | 1300 | 1300 | 1600 | 1750 |
| Drilling Depth | 180 | 225 | 225 | 325 | 325 |
| Working surface of base plate | 885 x 545 | 975 655 | 1150x655 | 1460x845 | 1735x940 |
| Dimension of Base | 1470x705x180 | 1645x835x200 | 1755x835x200 | 2370x1015x210 | 2640x1110x210 |
| Effective Area of Box Table | 330x330x330 | 550x400x400 | 600x450x450 | 600x450x450 | 600x450x450 |
| No. of Spindle Speed &Range (RPM.x steps) | 45-660 x6 steps |
40 - 790 x 9 steps
|
25-930-12 steps | 20-740-12 steps | |
| No.of spindle feed & range (per Rev.xSteps) | 0.095-0.215-3 steps |
0.080 - 0.180 3 steps
|
0.10 - 1.25 6 steps
|
||
| Taper spindle nose socket | MT 4 | MT 5 | MT 5 | MT 5 | MT 6 |
| Main Motor | 2 HP | 3 HP | 3 HP | 5 HP | 7.5 HP |
| Elevating Motor | 1 HP | 2 HP | 2 HP | 3 HP | 5 HP |
| Total weight of machine (approx.) kgs. | 2000 kg. | 3000 kg. | 3200 kg. | 4800 kg. | 6500 kg. |
Videos
Product Videos
Short Videos
YouTube Short Videos
Applications
Applications
Tool Rooms
Workshops
Fasteners Industries
Fabrication Workshops
Precision drilling
Fabrication units
Drilling metal
Drilling wood
Drilling plastic
FAQs
Frequently Asked Questions
Why is a All Geared Radial Drill Machine RDB used in industrial work?
The All Geared Radial Drill Machine RDB is intended for drilling varied positions on large or awkward workpieces. It is arranged around castings, plates, and fabricated assemblies, giving operators a dedicated method for this specific stage of production, preparation, assembly, finishing, testing, or repair.
What happens during operation of a All Geared Radial Drill Machine RDB?
The machine moves the drill head along a radial arm to reach the hole location. Its extended spindle reach without repeatedly moving the job supports a controlled sequence, although the exact setup, tooling, feed, and operating parameters must follow the selected model and the job being processed.
What workpieces or materials can a All Geared Radial Drill Machine RDB handle?
It is primarily associated with castings, plates, and fabricated assemblies. Suitability depends on the material, shape, size, required operation, tooling, and rated capacity, so the actual workpiece should be checked against the product specification before use.
Where is a All Geared Radial Drill Machine RDB typically installed?
Typical users include heavy fabrication, maintenance, and machine building. In these settings, the All Geared Radial Drill Machine RDB may operate as a standalone workstation or as one stage within a broader manufacturing, fabrication, maintenance, or quality-control process.
Which factors matter when selecting a All Geared Radial Drill Machine RDB?
Start with the real workpiece and required operation. Compare working range, compatible tooling, control method, production frequency, loading arrangement, available space, utilities, guarding, and service access. Confirm every numerical requirement from the selected model’s technical data rather than relying on the general machine name.
What maintenance checks are important for a All Geared Radial Drill Machine RDB?
Keep the working area clean and inspect the tool, work supports, guards, fasteners, transmission elements, lubrication points, and relevant electrical, hydraulic, or pneumatic systems. Follow the maintenance schedule supplied for the machine, isolate all energy before servicing, and replace guards before returning it to operation.
What factors affect the price of a All Geared Radial Drill Machine RDB?
Price depends on the required working range, construction, drive and control arrangement, tooling, automation, accessories, guarding, inspection requirements, freight, and installation support. A meaningful quotation therefore needs the intended application and workpiece details, not only the title All Geared Radial Drill Machine RDB.
What is the benefit of design arrangement on this All Geared Radial Drill Machine RDB?
An all-geared drive provides selectable mechanical transmission. The practical benefit depends on how that arrangement matches the workpiece, cycle frequency, operator involvement, and surrounding production method.
