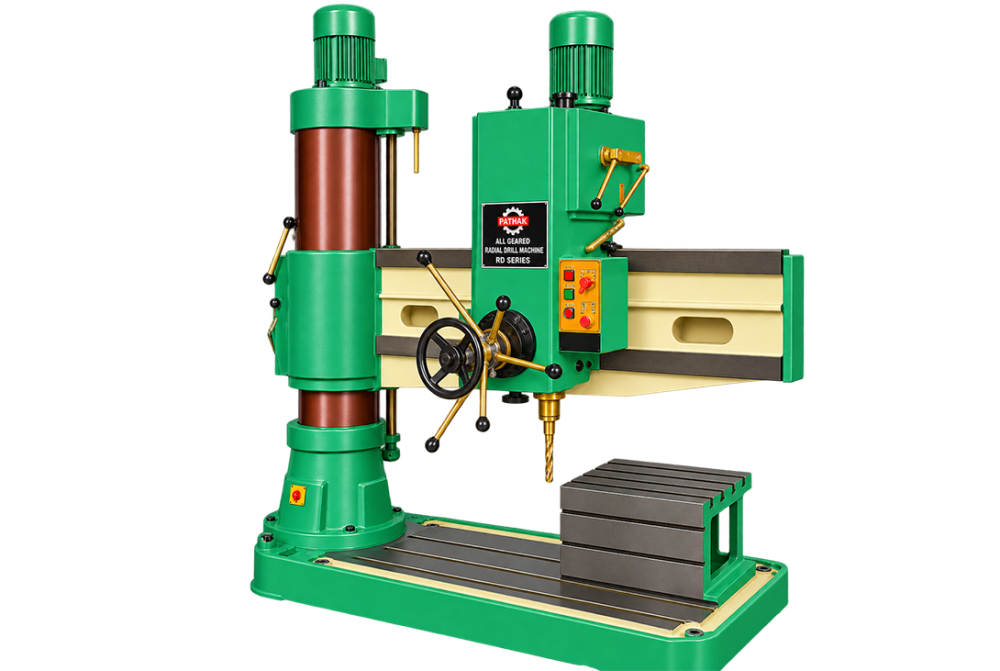

All Geared Radial Drill Machine RD
For work involving castings, plates, and fabricated assemblies, the All Geared Radial Drill Machine RD offers a process-specific solution. Its extended spindle reach without repeatedly moving the job suits heavy fabrication, maintenance, and machine building. An all-geared drive provides selectable mechanical transmission.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Product Overview
All Geared Radial Drill Machine RD
Machine Purpose
The All Geared Radial Drill Machine RD is a purpose-built unit for drilling varied positions on large or awkward workpieces. Its layout is organised around castings, plates, and fabricated assemblies, making it relevant when this operation must be completed in a controlled sequence.
How It Works
In operation, it moves the drill head along a radial arm to reach the hole location. The practical focus is extended spindle reach without repeatedly moving the job. Correct workholding, tooling, supervision, and routine inspection remain important because results depend on the material and setup. An all-geared drive provides selectable mechanical transmission.
Industrial Applications
Natural settings include heavy fabrication, maintenance, and machine building. There the machine may serve production, repair, preparation, assembly, finishing, or testing according to its title and the surrounding workflow.
Selection Considerations
Machines within drilling machines can differ in arrangement and capability. The required All Geared Radial Drill Machine RD should therefore be matched to actual samples or process details, with tooling, controls, guarding, and utilities verified before ordering.
Pathak is a Manufacturer, Supplier and Exporter offering this machine with application-based product guidance.
Specifications
Technical Specifications
| MODEL | RD40 | RD50 | RD65 |
| Drilling Capacity (mm) | 40 | 50 | 65 |
| Drilling capacity in cast - IRON (C.I.) | 46 | 56 | 70 |
| Tapping in steel | 27 | 42 | 50 |
| Spindle travel (mm) | 150 | 250 | 300 |
| Spindle Taper | MT-4 | MT-4 | MT-5 |
| No. of spindle speed /Range | 9 (50-805) | 9 ( 50-805) | 9 (50-805) |
| Range of power feed | 0.115 | 0.115 | 0.115 |
| Optional feed 6 | 0.13-1.10 | 0.13-1.10 | 0.13-1.10 |
| Column Diameter (mm) | 228 | 280 | 330 |
| Max /Min Dist.Spindle center to Col . Center | 1160/550 | 1325/615 | 1700/700 |
| Horizontal Movement of Drilling Head | 510 | 710 | 1000 |
| Max/Min Dist.Spindle Nose to Base plate | 1030/450 | 1080/480 | 1120/460 |
| Vertical Movement of Radial Arm | 580 | 600 | 660 |
|
Working surface of table (mm) |
560 x 460 | 560 x 460 | 400 |
| Height of Box Table | 400 | 400 | 1400x850 |
| Working surface of base plate (mm) | 800 x 670 | 1020 x 800 | 210 |
| Height of the Base plate | 170 | 190 | 5/1440 |
| Drilling Head motor (HP/RPM) | 2/1440 | 3/1440 | 3/1440 |
| Elevator Motor(HP/RPM) | 1/1440 | 2/1440 | 2050 x 990 |
| Base plate dimension (L x W) | 1330 x 820 | 1680 x 930 | 2440 |
| Total Height of the Machine (Approx) | 2250 | 2360 | 3100 kg. |
| Weight (Approx) kg. | 1750 | 2350 | 2950 |
